ABUS
Nexello Outdoor Siren
PLSG10100
Siren
HW: 1 FW: 1.01:00.03
SD3502
6.82.00
0x0403 (1027)
0x0003 (3)
0x0008 (8)
ZC10-20096975
2020-09-16 10:03:49.033678
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Outdoor siren with strobelight and sounder
Fire, breaking and entering or tampering: The ABUS Nexello outdoor siren for protected outdoor areas will sound the alarm at over 100 dB in all cases. On request in addition to or exclusively visually via a red LED. The settings for alarm duration, volume and the siren LED can be flexibly configured. Is the alarm duration too long? Or want the LED of the outdoor siren to alert you of the enabling and disarming of the alarm system? Various parameters can be individually adjusted. The desired configuration is carried out in a few simple steps via ABUS Nexello. The outdoor siren can be operated completely 100% wirelessly using batteries or an external power supply and can be freely positioned using a wall bracket with a set of dowels and screws. It has a cover contact and wall contact as protection against tampering. The siren indicates an imminent battery replacement or power failure, via a push notification to the free Nexello app.

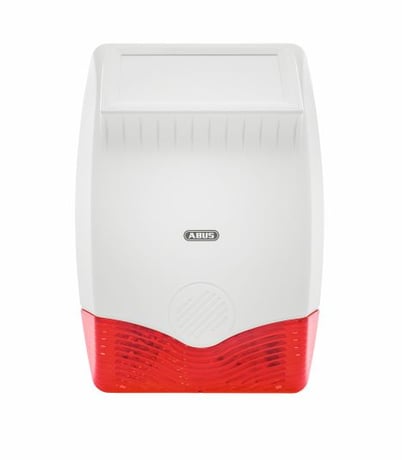

Product Image
1 - Alarm duration
Setting how long an alarm of the piezo siren lasts when triggered. Size: 2 bytes
Default: 180
Minimum: 5
Maximum: 600
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 600 | Adjustable from 5 - 600 in seconds |
2 - Alarm
Setting the reaction in case of an alarm.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | siren and LEDs / flash |
| 1 | 1 | Siren only |
| 2 | 2 | LEDs only / flash light |
3 - Siren volume
Adjusts the volume of the siren.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 100dB |
| 1 | 1 | 85dB |
4 - Sabotage Alarm
Defines whether an alarm should be triggered directly in the event of a sabotage alarm.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The siren does not automatically trigger an alarm, the sabotage alarm is triggered by the Z-Wave controller. This function is deactivated by default, because when activated, a sabotage alarm is always triggered directly by the siren, even if the Z-Wave controller/alarm system is in maintenance mode, for example. |
| 1 | 1 | The siren always triggers an alarm automatically, regardless of the status of the Z-Wave controller. Note: Sabotage Alarm will also be triggered while maintenance mode. |
5 - Status display
Setting whether only certain status events should be displayed.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | activation & deactivation |
| 1 | 1 | Only activation |
| 2 | 2 | Only deactivation |
| 3 | 3 | No activation & deactivation |
Press the Link button 3 times quickly (within 1.5 seconds) to start the inclusion on the device.
Press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device.
The device is a FLiRS (Frequently Listening Receiver Slave) and therefore does not require a wake-up function. The outside siren can be controlled by the Z-Wave controller at any time.
Press the Link button 3 times quickly (within 1.5 seconds). Press quickly (within 1 second) a fourth time and hold down the Link Button for at least 5 seconds. The siren is now reset to factory settings.
The DSK code (Device-Specific Key) is the device-specific key of your device and is required for secure inclusion (teach-in) via S2 on the Z-Wave controller. The first 5 digits, known as the PIN Code, of the DSK can be found underneath the QR Code on the side of the product.
| Group | Type |
|---|---|
| System | Cover status: Tampering, product cover removed |
