UltraPro
In-Wall Smart Switch
39348 /54890 /54891/ ZW4008
On/Off Power Switch
HW: 255 FW: 5.53
ZM5202
6.81.04
0x0063 (99)
0x4952 (18770)
0x3237 (12855)
ZC10-20096977
2020-09-16 10:35:06.694474
N/A
Enhanced 232 Slave
Always On Slave
In-Wall Smart Switch with QuickFit and SimpleWire enhancements. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever!
In-Wall Smart Switch with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever!

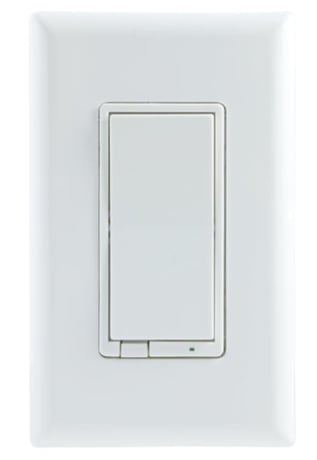

Product Image
3 - LED Indication
Controls when LED indicator light is activatedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED On when load is On, LED Off when load is Off (Default) |
| 1 | 1 | LED ON when load is Off, LED Off when Load is On |
| 2 | 2 | LED always OFF |
| 3 | 3 | LED always ON |
19 - Alternate Exclusion
Enables alternate method for excluding the device to prevent accidental removalSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Press any button on switch (Default) |
| 1 | 1 | Press two times ON button and two times OFF button, LED will flash 5 times if device is successfully excluded. |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom of the smart switch (rocker).
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top or bottom of the smart switch rocker).
Quickly press ON (top) button three times, then, immediately press the OFF (bottom) button three times. The LED will flash ON/OFF five times when completed successfully.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box or the QR code label on the product.
