UltraPro
In-Wall Smart Dimmer
39351 / 54897 / 54898/ ZW301
Light Dimmer Switch
HW: 255 FW: 5.53
ZM5202
6.81.04
0x0063 (99)
0x4944 (18756)
0x3339 (13113)
ZC10-20106985
2020-10-02 10:05:02.042473
N/A
Enhanced 232 Slave
Always On Slave
In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements.
In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever!

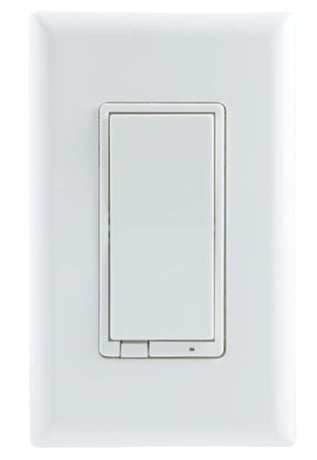

Product Image
3 - LED Indication Configuration
Adjust the LED status to default, invert, always OFF or always ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device is ON, LED is OFF; device is OFF, LED is ON |
| 1 | 1 | Device is ON, LED is ON; device is OFF, LED is OFF |
| 2 | 2 | LED always OFF |
| 3 | 3 | LED always ON |
6 - Dim up/down rate
Adjust the speed at which the ramps to a specific value other than 0 and FFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dim up/down the light to the specified level quickly by command except value 0 and FF |
| 1 | 1 | Dim up/down the light to the specified level slowly by command except value 0 and ff |
16 - Switch Mode
Turn your dimmer into an On/Off switch with switch modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable normal operation |
| 1 | 1 | Enable switch mode |
19 - Alternate Exclusion
Never accidentally remove a device during with alternate exclusionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal operation, press any button on the device |
| 1 | 1 | Press two times ON button and two times OFF button, LED will flash 5 times if exclusion is successful |
30 - Minimum Dim Threshold
Set the minimum dimmer thresholdSize: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Set the minimum dimmer threshold when manually or remotely controlled |
31 - Maximum Brightness Threshold
Set the brightness thresholdSize: 1 byte
Default: 99
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 99 | 1 | Set the maximum brightness threshold when manually or remotely controlled |
32 - Default Brightness Level
Set the default brightness level that the dimmer will turn on when being controlled manuallySize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Deafult |
| 1 | 99 | Ex. 1= 1% and 99 = 99% |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom of the smart dimmer (rocker).
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top or bottom of the smart dimmer (rocker).
Quickly press ON (top) button three times, then, immediately press the OFF (Bottom) button three times. The LED will flash ON/OFF five times when completed successfully.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box or the QR code label on the product.
