UltraPro
In-Wall Smart Toggle Switch
39354 / 54912 / ZW4009
On/Off Power Switch
HW: 255 FW: 5.53
ZM5202
6.81.03
0x0063 (99)
0x4952 (18770)
0x3238 (12856)
ZC10-20106984
2020-10-02 10:05:50.150744
N/A
Enhanced 232 Slave
Always On Slave
In-Wall Smart Toggle Switch with QuickFit and SimpleWire enhancements.
In-Wall Smart Toggle Switch with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever!

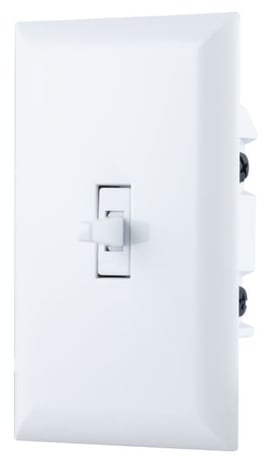

Product Image
3 - LED Indication Configuration
Configure LED indication to default, invert, always off or always onSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED ON when device is OFF, LED is OFF when device is ON |
| 1 | 1 | LED ON when device is ON, LED is OFF when device is OFF |
| 2 | 2 | LED always OFF |
| 3 | 3 | LED Always ON |
19 - Alternate Exclusion
Default - normal exclusion Active - perform a series of button presses to help eliminate accidental exclusionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Press any button on the switch |
| 1 | 1 | Press two times ON button and two time OFF button, LED will flash 5 times if successful |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press up on the toggle.
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press up on the toggle.
Quickly press up three times, then, immediately press down three times.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box or the QR code label on the product.
