Minoston
S2 Smart Dimmer Toggle Switch
MS13ZS
Light Dimmer Switch
HW: 1 FW: 1.00
ZM5202
6.81.03
0x0312 (786)
0xEE00 (60928)
0xEE04 (60932)
ZC10-20096979
2020-09-18 16:10:48.967422
N/A
Enhanced 232 Slave
Always On Slave
This light switch features: - Manual or remote on/off control and dimming from your mobile device or computer (when included to a Z-Wave gateway controller) - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Works with most high-quality DIMMABLE LED, CFL, and incandescent bulbs
This light switch features: - Manual or remote on/off control and dimming from your mobile device or computer (when included to a Z-Wave gateway controller) - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Works with most high-quality DIMMABLE LED, CFL, and incandescent bulbs - Based on universal command classes - supported by most Z-Wave controllers - May be associated and grouped with other Z-Wave devices for advanced home automation - LED indicator to help locate the switch in dark space - Simple elegant design with screwless snap-on wall plate included - Built-in Z-Wave signal repeater for a stronger and more reliable network Z-Wave Signal Frequency: 908.42 MHz Power: 120 VAC, 60 Hz Maximum Loads: 600W Single-gang, 500W Double-gang, 400W Triple-gang Incandescent, 150W CFL or LED Minimum Load: 20W for LED and CFL bulbs Range: Up to 100 feet line of sight Operating Temperature: 32-104° F (0-40° C) Installation and Use: Indoor only

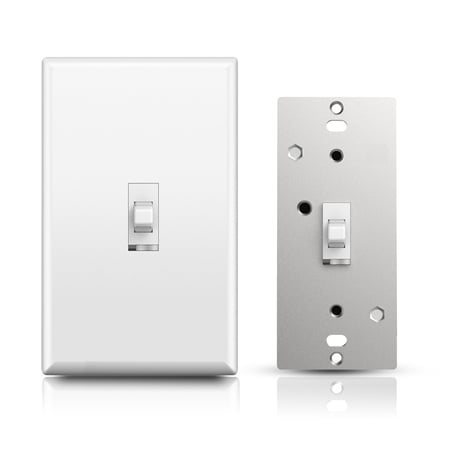

Product Image
1 - Locally Button function
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Up Button ON,Down Button OFF |
| 1 | 1 | Up Button OFF,Down Button ON |
| 2 | 2 | Up Button ON/OFF,Down Button ON/OFF |
2 - Status LED Configuration
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output and the LED are in the different state |
| 1 | 1 | Output and the LED are in the same state |
| 2 | 2 | Always OFF |
| 3 | 3 | Always ON |
3 - Enable Auto Turn-Off Time
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
4 - Count Down Configuration
Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Auto Turn-Off this Timer |
5 - Auto Turn-On Timer
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
6 - Auto Turn-On Timer
Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Auto Turn-On this Timer |
7 - Association Setting Parameter
Size: 1 byte
Default: 15
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | None |
| 1 | 1 | Local |
| 2 | 2 | 3-way |
| 3 | 3 | 3-way&Local |
| 4 | 4 | Z-Wave Hub |
| 5 | 5 | Z-Wave hub&Local |
| 6 | 6 | Z-Wave hub&3-way |
| 7 | 7 | Z-Wave hub&Local&3-way |
| 8 | 8 | Timer |
| 9 | 9 | Timer&Local |
| 10 | 10 | Timer&3-way |
| 11 | 11 | Timer&3-way&Local |
| 12 | 12 | Timer&Z-Wave hub |
| 13 | 13 | Timer&Z-Wave hub&Local |
| 14 | 14 | Timer&Z-Wave hub&3-way |
| 15 | 15 | All |
8 - Restores state after power failure
Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output OFF |
| 1 | 1 | Output ON |
| 2 | 2 | The state before a power outage |
9 - Dimmer Speed Parameter （Local Button）
Size: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | from 0x63 to 0x00 or from 0x00 to 0x63 need Value s |
10 - Multilevel minimum value can be set（The minimum luminance value of the dimming）（Local Button）
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | The minimum luminance value of the dimming |
11 - Multilevel maxmum value can be set（The maxmum luminance value of the dimming）（Local Button）
Size: 1 byte
Default: 99
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | the maxmum luminance value of the dimming |
12 - quickly press UPPER paddle 2 times
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn ON to 99 |
| 1 | 1 | turn on to the value relate with parameter 11 |
14 - Double Tap Behavior
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | enable double tap to full brightness |
| 1 | 1 | disable double tap to full brightness,single tap to last brightness level |
| 2 | 2 | disable double tap to full brightness,single tap always to full brightness |
15 - Enable or Disable local control
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
ADD the MS13ZS from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MS13ZS to/from a Z-Wave Gateway with supporting Security.The MS13ZS can support the Primary Controller that implemented the security S2.
Remove the MS13ZS from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MS13ZS to/from a Z-Wave Gateway with supporting Security.The MS13ZS can support the Primary Controller that implemented the security S2.
Press click Z-Wave button 2 times quickly,and hold for at least 10 seconds. to restore the device to the factory (Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable.)
