Schlage
J-Series by Schlage Z-Wave Keypad Lever
JFE109
Lock
HW: 3 FW: 1.06:01.09
ZGM130
7.11.1
0x003B (59)
0x0004 (4)
0x6109 (24841)
ZC12-21120325
2021-12-03 11:45:51.991994
N/A
Enhanced 232 Slave
Listening Sleeping Slave
The J-Series by Schlage Z-Wave™ Lever combines advanced features and compatibility with home automation or security systems, so you can control your lock from anywhere using your smartphone.
The J-Series by Schlage Z-Wave™ Deadbolt combines advanced features and compatibility with your home automation or security system, allowing you to control your lock from anywhere and freeing you from the hassles of lost keys, getting locked out, or hiding a spare for friends and family. The lock comes preprogrammed with two access codes and can hold up to 30 unique codes for family members and trusted friends. The fingerprint-resistant touchscreen helps access codes stay private, minimizing tell-tale wear that can tip off possible intruders. The J-Series by Schlage Z-Wave Deadbolt is battery-powered with a low battery warning that gives you weeks of advanced notice before it runs out. With guaranteed fit on standard doors, it’s easy for homeowners to install in minutes with just a screwdriver. The touchscreen continues to work in the event of a power outage, so you don’t have to worry about getting locked out – plus, a back-up key is included with the lock for peace of mind. The J-Series by Schlage Z-Wave Lever incorporates Z-Wave Plus™ S2 technology, an enhanced security protocol that features an additional layer of AES encryption of wireless signals. The Z-Wave technology allows you to integrate your exterior door locks with other Z-Wave smart home devices, such as cameras, motion detectors, lights and thermostats, bringing the safety, simplicity and style of Schlage to your smart home.

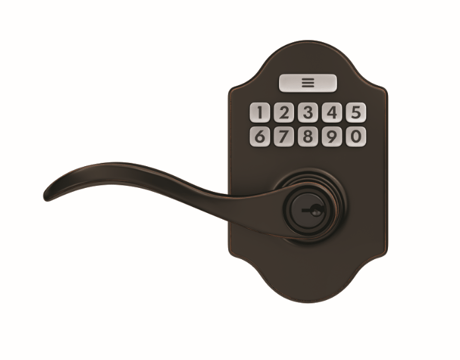

Product Image
3 - BEEPER
CONFIG ENABLE SND FF ELSE 00Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable Beeper |
| 1 | 1 | Enable Beeper |
4 - VACATION_MODE
CONFIG ENABLE SND FF ELSE 00Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable Vacation Mode |
| 1 | 1 | Enable Vacation Mode |
5 - LOCK_AND_LEAVE
CONFIG ENABLE SND FF ELSE 00Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable Lock & Leave |
| 1 | 1 | Enable Lock & Leave |
6 - USER_SLOT_BIT_FIELD
GET USER SLOT OCCUPIEDSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | User Slots 8 – 1 (MSB – LSB) 8,7,6,5,4,3,2,1 |
| 2 | 2 | User Slots 16 – 9 (MSB – LSB) 16,15,14,13,12,11,10,9 |
| 3 | 3 | User Slots 24 – 17 (MSB – LSB) 24,23,22,21,20,19,18,17 |
| 4 | 4 | User Slots 30 – 25 (MSB – LSB) X,X,30,29,28,27,26,25 |
15 - AUTO_LOCK
CONFIG ENABLE SND FF ELSE 00Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable Auto Lock |
| 1 | 1 | Enable Auto Lock |
16 - USER_CODE_PIN_LENGTH
CONFIG PINLEN SND VAL 4 TO 8Size: 1 byte
Default: 4
Minimum: 4
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 4 | 8 | User Code PIN length, a value between 4 and 8 (default 4) |
Place your Z-Wave Controller into the "Add" (Inclusion Mode) or "Remove" (Exclusion Mode). Refer to the respective documentation for your home automation system for details. Remove the battery cover. Press and hold enrollment button under battery cover for 0.5 to 3 seconds as shown. Solid amber LED will be ON. Release the enrollment button. An LED will flash amber indicating the "Add" or "Remove" process is in progress. Success is indicated by a green LED blink and a beep.
Place your Z-Wave Controller into the "Add" (Inclusion Mode) or "Remove" (Exclusion Mode). Refer to the respective documentation for your home automation system for details. Remove the battery cover. Press and hold enrollment button under battery cover for 0.5 to 3 seconds as shown. Solid amber LED will be ON. Release the enrollment button. An LED will flash amber indicating the "Add" or "Remove" process is in progress. Success is indicated by a green LED blink and a beep.
N/A
Press and hold the enrollment button. The LED will light solid amber. After about 8 seconds of holding the button, the amber light will turn off. Release the button. Successful FDR is indicated by 3 long green blinks and 3 long beeps. You must enter a valid user code. Lock will enter auto-handling routine, locking and unlocking several times. Auto-handling is complete when lock movement stops.
N/A
For enrollment in some Z-Wave Plus networks, an additional 5 digit code may be required to be entered into the home automation system or panel during Step 4. Enter the 5 digit code shown on the label located on lock or on the cover of the included installation instructions
| Group | Type |
|---|---|
| Access Control |
|
| Power Management |
|
