UltraPro
In-Wall Smart Dimmer
39351/54897/54898/ZW3010
Light Dimmer Switch
HW: 255 FW: 5.54
ZM5202
6.81.04
0x0063 (99)
0x4944 (18756)
0x3339 (13113)
ZC10-20116994
2020-11-02 10:43:57.513969
N/A
Enhanced 232 Slave
Always On Slave
Ultra Pro In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements paired with S2 security with SmartStart capabilities.
In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and SmartStart allows for effortless installation while being safer than ever!

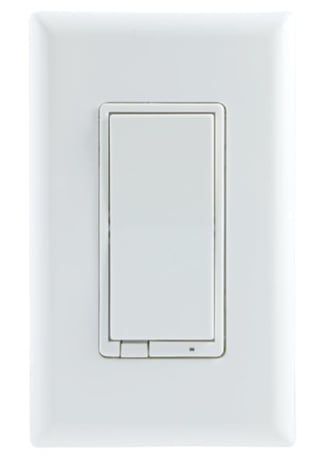

Product Image
3 - LED Indication
Controls the indicator light and when it is displayed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device is ON, LED is OFF; device is Off, LED is ON |
| 1 | 1 | Device is ON, LED is ON; device is Off, LED is OFF |
| 2 | 2 | LED always OFF |
| 3 | 3 | LED always ON |
6 - Dim Up/Down Rate
Speed of rate that the device will cycle through brightness levelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dim up/down the light to the specified level quickly by command except value 0 and FF |
| 1 | 1 | Dim up/down the light to the specified level slowly by command except value 0 and FF |
16 - Switch Mode
To enable switch mode, the dimmer will act similarly to an On/Off switchSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled- Normal Operation |
| 1 | 1 | Enabled- Switch Mode |
19 - Alternate Exclusion
This configuration when enabled prevents the accidental removal of the device from the network.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Press any button on switch (Default) |
| 1 | 1 | Press two times ON button and two times OFF button, LED will flash 5 times if device is successfully excluded. |
30 - Minimum Dim Threshold
Allows the user to custom set the lowest level that the switch will dim.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Set the minimum dimmer threshold when manually or remotely controlled |
31 - Maximum Brightness Threshold
Set the maximum dimmer thresholdSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Set the maximum brightness threshold when manually or remotely controlled |
32 - Default Brightness Level
Level the device will set the brightness level during operationSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Set the default brightness level that the dimmer will turn on when being operated manually or remotely |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom of the smart dimmer (rocker).
1. Follow the instructions for your Z-Wave certified controller to remove a device to the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top or bottom of the smart dimmer (rocker).
Quickly press ON (top) button three times, then, immediately press the OFF (bottom) button three times. The LED will flash ON/OFF five times when completed successfully.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box or the QR code label on the product.
