Aeotec
Home Energy Meter Gen5
ZW095-C
Sub Energy Meter
HW: 95 FW: 1.05
ZM5202
6.51.09
0x0086 (134)
0x0002 (2)
0x005F (95)
ZC10-20116998
2020-11-09 09:12:49.05086
N/A
Enhanced 232 Slave
Always On Slave
Aeon Labs Home Energy Meter is a energy meter for the entire home. It can wirelessly report instantaneous Power, KWH, Voltage and Amperage measurements to Z-Wave gateway/controller.
The HEM can be setup to send automatic reports to any associated nodes in association group 1 at an interval time. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. It is a security enabled Z-Wave plus device supports the Security Command Class and has the AES-128 bit security encryption built right in. While a Security enabled Controller is needed in order to fully use the security feature. It also supports the Over The Air (OTA) feature for the product’s firmware upgrade.

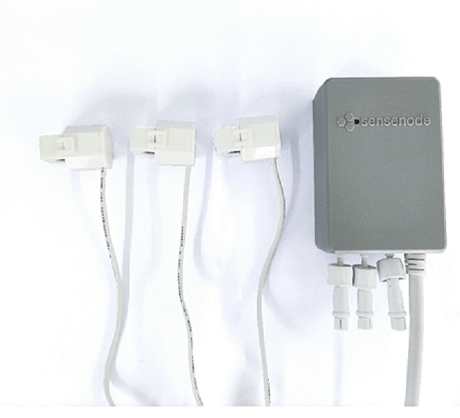

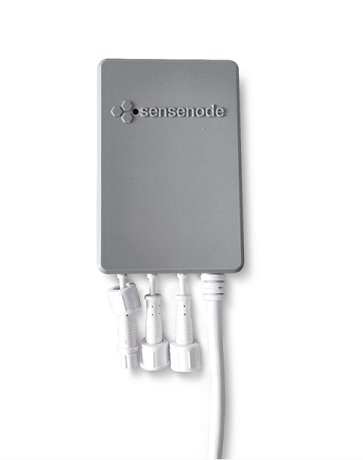

Product Image
1. Power on the HEM, the LED will blink slowly. 2. Let the primary controller into inclusion mode (If you don’t know how to do this, refer to its manual). 3. Click or double-click the Action Button. 4. If the inclusion is success, the LED will be solid. If the LED still blinks slowly,please repeat the process from step 2
1. Power on the HEM, the LED will be solid. 2. Let the primary controller of existing Z-Wave network into remove mode (If you don’t know how to do this, refer to its manual). 3. Press the Action Button. 4. If the removing is success, the LED will blink slowly. If the LED is still solid,please repeat the process from step 2
1. Make sure the HEM G5 has been connected to the power supply. 2. Press and hold the Action Button for 10 seconds. 3. If the LED starts slow blinking, which indicates the reset is success, otherwise please repeat the process from step 2
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
