Jasco
Smart Flood/Freeze Sensor with Humidity
54325/ZW6309A
Notification Sensor
HW: 1 FW: 7.04
ZGM130
7.13.6
0x0063 (99)
0x4953 (18771)
0x3432 (13362)
ZC12-21060242
2021-01-21 15:59:36.117608
N/A
Enhanced 232 Slave
Always On Slave
Yes
Heighten your senses with the Jasco Z-Wave Plus Flood/Freeze with Humidity Sensor. When paired with a compatible hub, the smart sensor provides notification when water levels or temperatures change.
Heighten your senses with the Jasco Z-Wave Plus Flood/Freeze with Humidity Sensor. When paired with a compatible hub, the smart sensor provides notification when water levels or temperatures change. Z-Wave devices can also be activated wirelessly for increased convenience and peace of mind. Your automation possibilities are seemingly infinite when connected to a compatible hub. • Trigger events – The sensor communicates with your hub to initiate desired actions of Z-Wave devices. Increase peace of mind by automatically turning on lights, sending a notification to your phone, activating an alarm or more when temperatures, humidity or water levels change. • Detection alarm – Built-in speaker emits audible alert when water levels or temperatures change to allow immediate action by anyone in the area. • Dual function – Base contacts and a detachable probe accommodate various setups. Recessed contacts on the base of the sensor are ideal for placement on flat surfaces. The included probe extends reach for use in wells, sump pump holes and other small spaces. • Temperature and humidity sensor – In humid or temperature-sensitive spaces, protect against costly damage caused by freezing or overheating. • Indicator light – LED indicator displays status and provides feedback during programming. It also serves as notification if tampering with the sensor occurs. • Universal compatibility – Z-Wave Plus and all previous Z-Wave generations work together to allow continued expansion of your home-automation network.

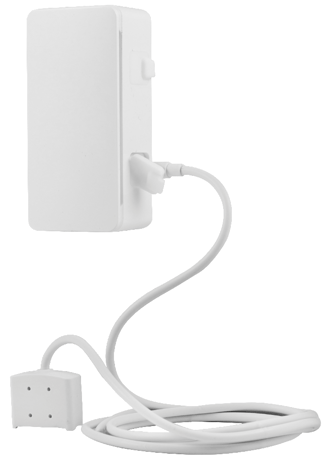

Product Image
19 - Alternate Exclusion
Alternative way to perform ExclusionSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Not engaged |
| 1 | 1 | Alternate Exclusion |
21 - Reverse Wet/Dry Detection
Detection Mode (1:wet 2:Dry)Size: 2 bytes
Default: 1
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1: Wet |
| 2 | 2 | 2: Dry |
22 - Temp Report Freq. (Battery)
Set Temp Report Freq.Size: 2 bytes
Default: 60
Minimum: 5
Maximum: 1440
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 1440 | Set Temp Report Freq. |
23 - Battery Report Freq.
Set Battery Report Freq.Size: 2 bytes
Default: 1440
Minimum: 5
Maximum: 1440
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 1440 | Set Battery Report Freq. |
50 - Low Temp Alert Level
Set Low Temp LevelSize: 2 bytes
Default: 33
Minimum: 0
Maximum: 122
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 122 | Low Temp |
51 - High Temp Alert Level
Set High Temp LevelSize: 2 bytes
Default: 104
Minimum: 0
Maximum: 122
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 122 | High temp |
52 - Temp Report Freq.(USB)
Set Temp Report Freq.Size: 2 bytes
Default: 60
Minimum: 5
Maximum: 360
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 360 | 5.... 360 Minutes - Sent every 5 minutes, up to 6 hours |
| 60 | 60 | Hourly |
53 - LED/Buzzer action during Tamper Event
0 = no LED, no beep (Default) 1 = Red LED Flash 5x, no beep 2 = Red LED cont flash, no beep 3 = no LED, cont beep 4 = Red LED cont flash, cont beepSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No LED, No Beep |
| 1 | 1 | Red LED Flash 5x, no beep |
| 2 | 2 | Red LED continuous flash, no beep |
| 3 | 3 | No LED, continuous beep |
| 4 | 4 | Red LED continuous flash, continuous beep |
1. Follow the instructions for your Z-Wave certified controller to add the sensor in the Z-Wave network. 2. Once the controller is ready to add your device, remove the top cover of the sensor. 3. Ensure battery is installed with the correct polarity and the battery tab has been removed or ensure micro USB is plugged in. 4. Press and release the programming button. This starts the manual add process. The red LED flashes quickly as it searches for a network. After 25 seconds, the LED will stop flashing if the sensor is not added to the network. Press the programming button to manually start the add process. If if times out, the LED will stop flashing. Press and release the programming button again.
1. Follow the instructions for your Z-Wave certified controller to remove from the Z-Wave network. 2. Once the controller is ready to remove your sensor, press and release the programming button one time on the sensor. 3. The red LED will blink five times to indicate it has been removed.
Press and release the programming button one time on the sensor.
1. Press the programming button 10 times within six seconds (interval between presses of the button cannot be longer than one second).
The controller's app will indicate if it discovers the sensor. If prompted by the controller to enter S2 security code, refer to the QR code/security number on the back of the box or the QR code label on the product.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm |
|
| Water Alarm |
|
| Home Security |
|
