Clare Controls
ClareOne Panel
CLR-C1-PNLX
Central Controller
HW: 0 FW: 3.99:05.04
ZM5101
6.61.00
0x0194 (404)
0x0002 (2)
0x0002 (2)
ZC10-21037012
2021-03-05 12:18:48.826748
N/A
Static Controller
Central Static Controller
ClareONE Security and Smart Home Controller
ClareONE Security and Smart Home Controller. Home Automation and Control System with added Home Security.

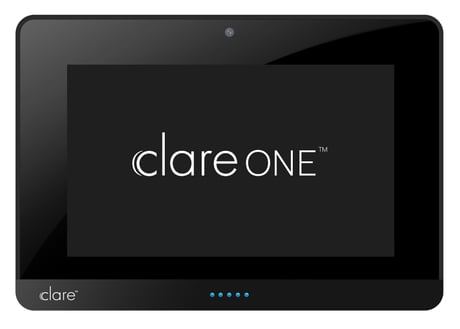

Product Image
Learn Mode activation (Learning Mode): This mode allows the controller to be added into another network. All current network information in the controller is reset. It is reset and all current network information is lost. The controller adopts the home ID of the adding controller.
Factory Reset Mode: This mode will reset the controller to factory settings. Use this mode with caution.
Controller Replicator Mode: This mode allows the controller to be replicated (copied).
Classic Inclusion Mode (Adding Mode): This mode allows the controller to add one node to the Z-Wave network. The controller stays in this mode until a device is added to the network or until it is manually reset, and then the controller switches to normal mode.
Classic Exclusion Mode (Removing Mode): This mode allows the controller to remove a device from the Z-Wave network. The controller stays in this mode until a device is removed from the network, or until it is manually reset, and then the controllers switches to normal mode.
| Group | Type |
|---|---|
| Water Alarm | (Refer to parameters): State idle |
| Access Control | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
