First Alert
SMCO400
SMCO400
Notification Sensor
HW: 2 FW: 12.00:07.00
ZM5202
6.81.06
0x0138 (312)
0x0001 (1)
0x0058 (88)
ZC10-21027008
2021-02-08 10:39:34.097817
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm
The Z-Wave Smoke/CO alarm can be implemented in residential and institutional applications. Installation settings include sleeping areas within hospitals, hotels, motels, dormitories and other multi-family dwellings that are defined in standard NFPA 101. The First Alert ZCOMBO-G Smoke and Carbon Monoxide Detector has been fully tested and complies with UL217, UL2034, CSFM, NFPA 720, NFPA 101 and other agencies that model their codes after the above agencies. The combination alarm meets building codes that require the use of a battery operated Z-Wave wireless Smoke and CO detector. This First Alert Z-Wave Combination Alarm includes silence features and meets the model building codes published by the ICC. The First Alert Z-Wave Combo Alarm includes: an insect screened photoelectric smoke sensing chamber, electrochemical carbon monoxide sensor, 85dB horn, supervised 3V (2 AA batteries) power supply, full function test switch and a silence feature. The First Alert Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm includes a battery drawer that prevents battery removal and tamper resistant locking pins that lock the alarm to the mounting bracket. This First Alert Combination Alarm is an ideal fit for any number of applications that include apartments, dormitories, and hotels. Designed for wall or ceiling mounting, this alarm includes all of the required mounting anchors and screws needed for easy installation.

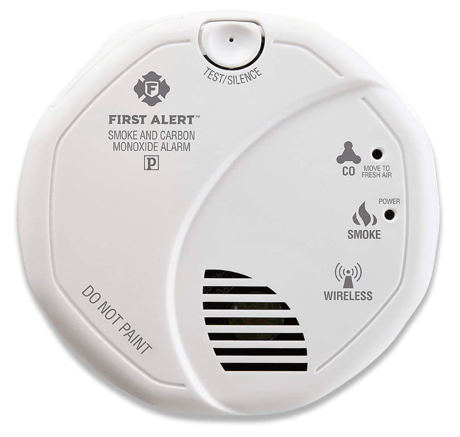

Product Image

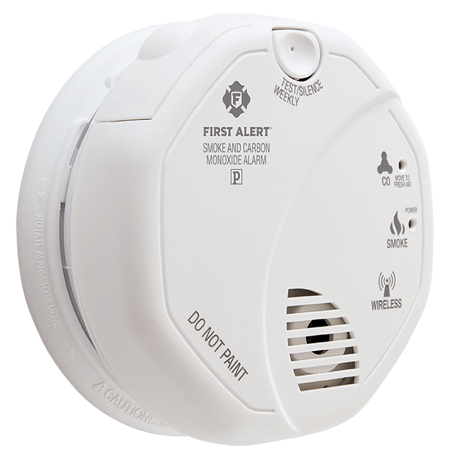

Product picture from right angle
1 - SuperVision report timeout
ZCOMBO will send the message over SuperVision Command Class and it will wait for the SuperVision report from the Controller for the SuperVision report timeout time.Size: 2 bytes
Default: 1500
Minimum: 500
Maximum: 5000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 5000 | The value is in milliseconds. |
2 - SuperVision retry count
If the SuperVision report is not received within the SuperVision report timeout time, the ZCOMBO will retry sending the message again. Upon exceeding the max retry, the ZCOMBO device will send the next message available in the queue.Size: 2 bytes
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | The value is a number |
3 - SuperVision wait time
Before retrying the message, ZCOMBO will wait for the SuperVision wait time. Actual wait time is calculated using below formula, Wait time = SuperVision wait time base-value + random-value + (attempt-count x 5 seconds) • The random value shall be a time between 100 and 1100 millisecondsSize: 2 bytes
Default: 5
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | The value is in seconds. |
ADDING ALARM 1. Slide battery door open. 2. Insert batteries checking the correct orientation. 3. Press and hold the test button with your finger or thumb. Keep it held down as you slide the battery drawer closed. You may then release the button. NOTE: Use only your finger or thumb on the test button. The use of any other instrument is strictly prohibited.
REMOVING ALARM 1. Slide battery door open. 2. Remove and re-insert batteries checking the correct orientation. 3. Press and hold the test button with your finger or thumb. Keep it held down as you slide the battery drawer closed. You may then release the button. NOTE: Use only your finger or thumb on the test button. The use of any other instrument is strictly prohibited.
PROCEDURE TO MANUALLY WAKE-UP THE DEVICE To manual wake-up the device, slide the battery door open wait for ~5 seconds and then slide the battery drawer closed. Upon power-up, the device will send the wake-up notification.
RESETTING ALARM If the device is powered up with the test button held down for 10+ seconds, the device will reset all Z-Wave settings and leave the network. Upon completion of the Reset operation, the LED will glow and the horn will sound for ~1 second. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
DSK LOCATION ON THE PRODUCT Device Specific Key (DSK) to be available at the time an S2 device is added to a Z-Wave network. The QR code and the 5-digit DSK PIN can be found on the product nameplate which is located on the back of the product. The Full DSK string can be found on the product insert, available inside the product packaging.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm |
|
| CO Alarm |
|
| System |
|
