Aeotec
MultiSensor 7
ZWA024-A
Notification Sensor
HW: 1 FW: 1.01
ZGM130
7.12.2
0x0371 (881)
0x0102 (258)
0x0018 (24)
ZC12-21080291
2021-08-10 12:04:12.020578
N/A
Enhanced 232 Slave
Always On Slave
Yes
Aeotec MultiSensor 7 is a Z-Wave™ smart sensor.
Aeotec MultiSensor 7 is a Z-Wave™ smart sensor. The corner of your room just got 6 times smarter. It’s a motion sensor and it’s also so much more. Installing this 1 piece of Z-Wave technology is the same as installing 6 pieces of Z-Wave technology. Your home control network will immediately understand motion, temperature, humidity,light, Ultraviolet and Vibration readings wherever MultiSensor 6 is installed. Those intelligent readings will equate to intelligent automation. And intelligent automation will give you the perfect smart home.

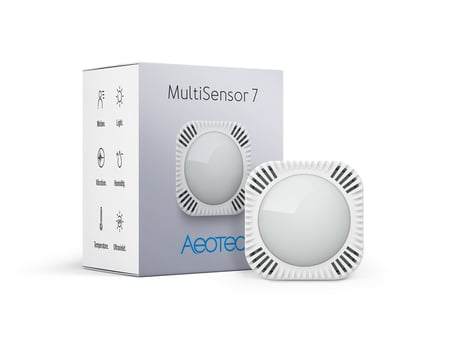

Product Image
1 - Beaming Enable/Disable
Used to enable/disable beaming. If set to 1, FLiR commands will be supported. But the device must be re-included into the network to activate it. 0 - disable 1 - enableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 0 | Enable |
2 - Motion Retrigger Time
Presence re-detection time set in second to allow motion sensor to reset timeout of motion sensor. In this time, the motion sensor can not be triggered again. If this value reach zero, the timeout configuration value set by Param3 will be reset. This setting value must always be less than timeout configuration. 0 - disable 1~3600 - timeout set in secondsSize: 2 bytes
Default: 30
Minimum: 30
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 3600 | timeout set in seconds |
3 - Motion Untrigger Time
Timeout configuration set in second for motion sensor to send no trigger status.Size: 2 bytes
Default: 240
Minimum: 30
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 3600 | timeout set in seconds |
4 - Motion Sensitivity
Set the sensitivity of motion sensor. 0 - disable 1- minimum sensitivity 11 - maximum sensitivitySize: 1 byte
Default: 11
Minimum: 0
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 11 | sensitivity range |
5 - Motion Report Type
Set which command class will be sent when motion sensor is triggered or detriggered. 0 - Sends Notification Report 1 - Sends Sensor Binary Report 2 - Sends Notification and Sensor Binary ReportSize: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Sends Notification Report |
| 1 | 0 | Sends Sensor Binary Report |
| 2 | 0 | Sends Notification and Sensor Binary Report |
6 - Vibration Sensor Enable/Disable
Used to enable/disable vibration sensor. 0 - disable vibration 1~254 - timeout set in minutes to reset vibration status 255 - timeout set in minutes to reset vibration statusSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable vibration |
| 1 | 254 | timeout set in minutes to reset vibration status |
| 255 | 255 | timeout set in minutes to reset vibration status |
7 - Vibration Intensity Reports
Used to enable/disable vibration intensity reports. If set to 1, vibration intensity will be sent to gateway when triggered. If set to 0, do not report.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 0 | Enable |
9 - Wakeup CC Timeout
Timeout set in seconds after Wakeup CC is send out before go to sleep. If wakeup no more information received, return to sleep mode immediately.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Timeout set in seconds |
10 - Power Status
This value is Readonly. Used to report the power status (USB or Battery powered) 0 - When battery powered, the device will act as RSS. 1 - When USB cable insert, the device will act as LSS. The device must be re-included in the network to change the role type.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When battery powered, the device will act as RSS. |
| 1 | 0 | When USB cable insert, the device will act as LSS. |
11 - Motion Group Control(Group2)
Set control of other devices on group2 based on motion trigger. 0 - Send BASIC_SET (0xFF) when motion is triggered to associated device Send BASIC_SET (0x00) when motion is untriggered to associated device 1 - Send BASIC_SET (0x00) when motion is triggered Send BASIC_SET (0xFF) when motion is untriggered 2 - Send BASIC_SET (0xFF) when motion is triggered, Nothing when motion untriggered. 3 - Send BASIC_SET (0x00) when motion is triggered, Nothing when motion untriggered. 4 - Send BASIC_SET (0x00) when motion is untriggered, Nothing when motion triggered. 5 - Send BASIC_SET (0xFF) when motion is untriggered, Nothing when motion triggered. 6 - Send BASIC_SET (value is configured by parameter 12) when motion is triggered to associated devices. Send BASIC_SET (value is configured by parameter 12) when motion is untriggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send BASIC_SET (0xFF) when motion is triggered to associated device Send BASIC_SET (0x00) when motion is untriggered to associated device |
| 1 | 0 | Send BASIC_SET (0x00) when motion is triggered Send BASIC_SET (0xFF) when motion is untriggered |
| 2 | 0 | Send BASIC_SET (0xFF) when motion is triggered, Nothing when motion untriggered. |
| 3 | 0 | Send BASIC_SET (0x00) when motion is triggered, Nothing when motion untriggered. |
| 4 | 0 | Send BASIC_SET (0x00) when motion is untriggered, Nothing when motion triggered. |
| 5 | 0 | Send BASIC_SET (0xFF) when motion is untriggered, Nothing when motion triggered. |
| 6 | 0 | Send BASIC_SET (value is configured by parameter 12) when motion is triggered to associated devices. Send BASIC_SET (value is configured by parameter 12) when motion is untriggered. |
12 - Motion Group Value Setting
Set Basic Set value for Group2. The MSB will act as the basic set value when motion trigger. The LSB will act as the basic set value when motion untrigger. E.g. value=0x0A00, then BASIC_SET(0x0A) will be sent when motion trigger, BASIC_SET(0x00) will be sent when motion untrigger.Size: 2 bytes
Default: 65280
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Set Basic Set value for Group2. |
13 - Motion Group Control Requirement
Set threshold of Light/Lux when devices associated in group2 should be triggered by motion. Associated device only receive BASIC_SET command when lightSize: 2 bytes
Default: 30000
Minimum: 0
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30000 | Set threshold of Light/Lux |
14 - Over Humidity Group Threshold (Group5)
Set threshold of humidity. If measured humidity >= (this value), send BASIC_SET (0xFF) to associated devices through group5. If measured humidity < (this value) send BASIC_SET (0x00) to associated devices through group5.Size: 1 byte
Default: 60
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Set threshold of humidity. |
15 - Under Humidity Group Threshold (Group6)
Set threshold of humidity. If measure humidity (this value) send BASIC_SET (0x00) to associated devices through group6.Size: 1 byte
Default: 40
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Set threshold of humidity. |
16 - Over Heat Group Threshold (Group3)
Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature >= (this value, Scale is determined by Param64) send BASIC_SET (0xFF) to associated devices. If measured temperature<(this value) send BASIC_SET (0x00) to associated devices. E.g. Value 239 means 23.9 C. Value 750 means 75.0 F.Size: 2 bytes
Default: 239
Minimum: -400
Maximum: 850
Possible values
| From | To | Desription |
|---|---|---|
| -400 | 850 | Set threshold of temperature |
17 - Under Heat Group Threshold (Group4)
Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature (this value) send BASIC_SET (0x00) to associated devices. E.g. Value 155 means 15.5 C. Value 600 means 60.0 F.Size: 2 bytes
Default: 155
Minimum: -400
Maximum: 850
Possible values
| From | To | Desription |
|---|---|---|
| -400 | 850 | Set threshold of temperature |
18 - Over Light Group Threshold (Group7)
Set threshold of Light/Lux. If measured light/lux >= (this value) send BASIC_SET (0xFF) to associated devices. If measured light/lux < (this value) send BASIC_SET (0x00) to associated devices.Size: 2 bytes
Default: 2000
Minimum: 0
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30000 | Set threshold of Light/Lux. |
19 - Under Light Group Threshold (Group8)
Set threshold of Light/Lux. If measured light/lux (this value) send BASIC_SET (0x00) to associated devices.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30000 | Set threshold of Light/Lux. |
20 - Over UV Group Threshold (Group9)
Set threshold of UV. If measured UV >= (this value) send BASIC_SET (0xFF) to associated devices. If measured UV < (this value) send BASIC_SET (0x00) to associated devices.Size: 1 byte
Default: 8
Minimum: 0
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Set threshold of UV. |
21 - Under UV Group Threshold (Group10)
Set threshold of UV. If measured UV (this value) send BASIC_SET (0x00 to associated devices.)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 11 | Set threshold of UV. |
39 - Low Battery Threshold
Configure low battery report threshold, sends low battery report via notification and battery report when battery level drops under setting. Unit %.Size: 1 byte
Default: 50
Minimum: 10
Maximum: 90
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 90 | Configure low battery report threshold |
40 - Threshold Check Enable/Disable
Enable/Disable threshold reporting, check time can be adjusted by Param45. 0 - disable all threshold reports 1 - enable all threshold reportsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable all threshold reports |
| 1 | 0 | enable all threshold reports |
41 - Temperature Threshold
Threshold = (Value * 0.1) Scale is determined by Param64. 0 = disable.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Threshold = (Value * 0.1) Scale is determined by Param64. 0 = disable. |
42 - Humidity Threshold
Humidity range = 1% to 50%, 0 = disable.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 50 | Humidity range = 1% to 50%, 0 = disable. |
43 - Lux Threshold
0 = disableSize: 2 bytes
Default: 250
Minimum: 0
Maximum: 10000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10000 | Lux Threshold |
44 - UV Threshold
0 = disableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 11 | UV Threshold |
45 - Threshold Check Time
Set threshold check time in seconds if threshold is enable via Param40. 1~65535 - When USB powered 60~65535 - When Battery poweredSize: 2 bytes
Default: 240
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Set threshold check time in seconds |
46 - Low Temperature Report
Eable/Disable alarm report for low temperature(Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 0 | Enable |
48 - Sensor Limit Control
This value is bit mask. Used to enable/disable measurement reports for various sensors that is more than the upper limit value or less than the lower limit value. 1 - Temperature upper level 2 - Humidity upper level 4 - Lux upper level 8 - UV upper level 16 - Temperature lower level 32 - Humidity lower level 64 - Lux lower level 128 - UV lower levelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 0 | Temperature upper level |
| 2 | 0 | Humidity upper level |
49 - Temperature Upper Limit
Set upper limit level for temperature set in scale of 0.1. Scale is determined by Param64. If (Current measurement) > (Upper Limit), then report sensor.Size: 2 bytes
Default: 280
Minimum: -400
Maximum: 1000
Possible values
| From | To | Desription |
|---|---|---|
| -400 | 1000 | Set upper limit level for temperature |
50 - Temperature Lower Limit
Set lower limit level for temperature set in scale of 0.1. Scale is determined by Param64. If (Current Measurement) < (Lower limit), then report sensor.Size: 2 bytes
Default: 0
Minimum: -400
Maximum: 1000
Possible values
| From | To | Desription |
|---|---|---|
| -400 | 1000 | Set lower limit level for temperature |
51 - Temperature Recover Limit
Temperature recover limit set in scale of 0.1. Scale is determined by Param64. If (Current measurement) = (lower limit + recover limit), then temperature report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Temperature recover limit set in scale of 0.1. |
52 - Humidity Upper Limit
Set humidity upper limit level.Size: 1 byte
Default: 60
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Set humidity upper limit level. |
53 - Humidity Lower Limit
Set humidity lower limit levelSize: 1 byte
Default: 40
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Set humidity lower limit level |
54 - Humidity Recover Limit
Set humidity recover limit level. Refer to Param 51.Size: 1 byte
Default: 5
Minimum: 1
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | Set humidity recover limit level |
55 - Lux Upper Limit
Set lux upper limit level.Size: 2 bytes
Default: 1000
Minimum: 0
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30000 | Set lux upper limit level. |
56 - Lux Lower Limit
Set lux lower limit level.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30000 | Set lux lower limit level. |
58 - UV Upper Limit
Set UV upper limit level.Size: 1 byte
Default: 8
Minimum: 1
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 11 | Set UV upper limit level. |
59 - UV Lower Limit
Set UV lower limit level.Size: 1 byte
Default: 4
Minimum: 1
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 11 | Set UV lower limit level. |
60 - UV Recover Limit
Set UV recover limit level. Refer to Param 51.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 5 | Set UV recover limit level. |
61 - Out-of-limit State
This is read only and bit mask. Out of the limit state of sensors. Bit Mask: 0 - within limit 1 - out of limit Value: 1 - Temperature upper level 2 - Humidity upper level 4 - Lux upper level 8 - UV upper level 16 - Temperature lower level 32 - Humidity lower level 64 - Lux lower level 128 - UV lower levelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | within limit |
| 1 | 0 | Temperature upper level |
| 2 | 0 | Humidity upper level |
| 4 | 0 | Lux upper level |
64 - Temperature Scale
Set the scale for temperature when reports. 0 - Celsius 1 - FahrenheitSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Celsius |
| 1 | 0 | Fahrenheit |
67 - Lux Recover Limit
Set lux recover limit level. Refer to Param 51.Size: 1 byte
Default: 100
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Set lux recover limit level. |
81 - LED Activity
Allow user to enable/disable LED activity of specific reports sent by sensor. Button press indicator is not affected by this. 0 - disable 1 - enableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 0 | enable |
82 - Motion Sensor Report Indicator
If LED is enabled by Param81, allow user to change the report color of motion sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 3
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 0 | Red |
| 2 | 0 | Blue |
| 3 | 0 | Green |
| 4 | 0 | Pink |
| 5 | 0 | Cyan |
| 6 | 0 | Purple |
| 7 | 0 | Orange |
| 8 | 0 | Yellow |
| 9 | 0 | White |
83 - Temperature Sensor Report Indicator
If LED is enabled by Param81, allow user to change the report color of temperature sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 0
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
84 - Humidity Sensor Report Indicator
If LED is enabled by Param81, allow user to change the report color of humidity sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 0
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
85 - Lux Sensor Report Indicator
If LED is enabled by Param81, allow user to change the report color of Lux sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 0
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
86 - UV Sensor Report Indicator
If LED is enabled by Param81, allow user to change the report color of UV sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 0
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
87 - Vibration Sensor Report Indicator
If LED is enabled by Param81, allow user to change the report color of vibration sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 2
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
88 - Battery Report Indicator
If LED is enabled by Param81, allow user to change the report color of battery. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 0
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
89 - Wakeup Report Indicator
If LED is enabled by Param81, allow user to change the report color of wakeup. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 8
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
90 - Communication Indicator
If LED is enabled by Param81, allow user to change indicator color when receiving communication from gateway or other devices. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - WhiteSize: 1 byte
Default: 0
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. Other value descriptions, please see above description box of this parameter. |
101 - Automatic Report Checklist 1
Checklist 1 for automatic timed report. When the corresponding item is selected, it will be checked when timeout setting by Param111. 1 - Battery 16 - UV 32 - Temperature 64 - Humidity 128 - LuxSize: 1 byte
Default: 241
Minimum: 0
Maximum: 241
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | Battery |
| 16 | 0 | UV |
| 32 | 0 | Temperature |
| 64 | 0 | Humidity |
| 128 | 0 | Lux |
102 - Automatic Report Checklist 2
Checklist 2 for automatic timed report. When the corresponding item is selected, it will be checked when timeout setting by Param112. 1 - Battery 16 - 32 - Temperature 64 - Humidity 128 - LuxSize: 1 byte
Default: 0
Minimum: 0
Maximum: 241
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | Battery |
| 16 | 0 | UV. Other value descriptions, please see above description box of this parameter. |
103 - Automatic Report Checklist 3
Checklist 3 for automatic timed report. When the corresponding item is selected, it will be checked when timeout setting by Param113. 1 - Battery 16 - UV 32 - Temperature 64 - Humidity 128 - LuxSize: 1 byte
Default: 0
Minimum: 0
Maximum: 241
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | Battery. Other value descriptions, please see above description box of this parameter. |
111 - Automatic Checklist 1 Interval Time
Interval time set in seconds to check the checklist1’s items. Multilevel Sensor Report will be sent when timeout.Size: 2 bytes
Default: 3600
Minimum: 30
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 65535 | Interval time set in seconds |
112 - Automatic Checklist 2 Interval Time
Interval time set in seconds to check the checklist2’s items. Multilevel Sensor Report will be sent when timeout.Size: 2 bytes
Default: 3600
Minimum: 30
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 65535 | Interval time set in seconds |
113 - Automatic Checklist 3 Interval Time
Interval time set in seconds to check the checklist3’s items. Multilevel Sensor Report will be sent when timeout.Size: 2 bytes
Default: 3600
Minimum: 30
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 65535 | Interval time set in seconds |
201 - Temperature Offset Value
Can add or minus this setting value to calibrate temperature when checked. Scale is defined by Param64. e.g. Value 15 means 1.5C or 1.5F.Size: 2 bytes
Default: 0
Minimum: -200
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| -200 | 200 | Temperature Offset Value |
202 - Humidity Offset Value
Can add or minus this setting value to calibrate humidity when checked. Unit: %.Size: 1 byte
Default: 0
Minimum: -100
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| -100 | 100 | Humidity Offset Value |
203 - Lux Offset Value
Can add or minus this setting value to calibrate Lux when checked.Size: 2 bytes
Default: 0
Minimum: -10000
Maximum: 10000
Possible values
| From | To | Desription |
|---|---|---|
| -10000 | 10000 | Lux Offset Value |
204 - UV Offset Value
Can add or minus this setting value to calibrate UV when checked.Size: 1 byte
Default: 0
Minimum: -10
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| -10 | 10 | Offset Value range -10-10. |
1. Turn your primary controller into inclusion mode. 2. Press once the Action Button on the product.
1. Turn your primary controller into exclusion mode. 2. Press once the Action Button on the product.
Press and hold the Action button on product for 2-5s.
Press and hold the Action Button on product for 15-20s.
User guide section in the User manual.
The Sensor supports RSS and AOS role type: 1. When battery powered, the device will act as RSS. 2. When USB adpater powered, the device will act as AOS. Note: The device must be re-included in the network if changing its role type.
If the product is in sleep state for a long time and your gateway shows it is in offline state, you can rediscover it via pressing and holding the Action Button for 3 seconds, then the Sensor will send a wake_up notification report to your gateway and let your gateway that it is still online.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security |
|
| Power Management |
|
| System | SW status: System software failure (manufacturer proprietary failure code provided) |
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Humidity |
| Ultraviolet |
