Zooz
S2 ON/OFF SWITCH 700
ZEN76
Binary Switch
HW: 1 FW: 1.00
ZGM130
7.13.6
0x027A (634)
0x7000 (28672)
0xA006 (40966)
ZC12-21020182
2021-02-17 12:28:17.046769
N/A
Enhanced 232 Slave
Always On Slave
700 Series Z-Wave Plus S2 On/Off Switch with Simple Direct 3-Way and 4-Way Patented Solution.
HIGHLIGHTS: - Manual or Z-Wave on/off control with instant status updates - NEW: 700 series Z-Wave chip for better range and faster control - Simple Direct 3-Way: connect with existing on/off switches in 3-way, 4-way, and 5-way set-ups, no add-on needed - Scene control: trigger actions with multi-tap (select hubs only) - Smart bulb mode: disable relay and control the light via Z-Wave - Remembers and restores on/off status after power failure - Adjustable LED indicator in 4 colors and 3 brightness levels - Works with LED and incandescent bulbs (don’t use with tubes) SPECS: - Model Number: ZEN76 - Z-Wave Signal Frequency: 908.42 MHz - Power: 120 VAC, 60 Hz - Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent, 960 W resistive (DON’T use with tube lights, fans, or receptacles) - Range: Up to 500 feet line of sight - Operating Temperature: 32-104° F (0-40° C) - Installation and Use: Indoor only

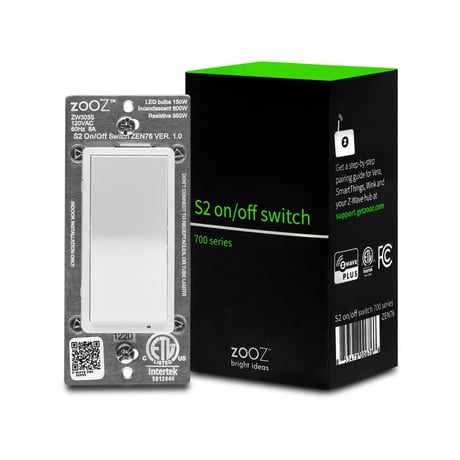

Product Image
1 - On/Off Paddle Orientation
Choose if you want the upper paddle to turn the light on or turn the light off when tapped.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Upper paddle turns the light on, lower paddle turns it off (default) |
| 1 | 1 | Upper paddle turns the light off, lower paddle turns it on |
| 2 | 2 | Any paddle turns light on/off. |
2 - LED Indicator Control
Choose if you want the LED indicator to turn on when the switch (light) is on or off, or if you want it to remain on or off at all times.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator is on when switch is off, LED indicator is off when switch is on (default) |
| 1 | 1 | LED indicator is on when switch is on, LED indicator is off when switch is of |
| 2 | 2 | LED indicator is always OFF |
| 3 | 3 | LED indicator is always ON |
3 - Auto Turn-Off Timer
Use this parameter to enable or disable the auto turn-off timer function (the time after which you want the switch to automatically turn off once it has been turned on).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
5 - Auto Turn-On Timer
Use this parameter to enable or disable the auto turn-on timer function (the time after which you want the switch to automatically turn on once it has been turned off).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
8 - On Off Status After Power Failure
Set the on off status for the switch after power failure.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | forced to OFF (regardless of state prior to power outage) |
| 1 | 1 | forced to ON (regardless of state prior to power outage) |
| 2 | 2 | remembers and restores on/off status after power failure (default) |
10 - Enable or Disable Scene
Enable or disable scene control functionality for quick double tap triggers.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | scene control disabled |
| 1 | 1 | scene control enabled |
12 - Smart Bulb Mode: Enable/Disable Paddle / Z-Wave Control
Enable or disable local on/off control. If enabled, you’ll only be able to control the connected light via Z-Wave. Scenes and other functionality will still be available through paddles.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | physical paddle control enabled (default) |
| 2 | 2 | physical paddle and Z-Wave control disabled |
| 0 | 0 | physical paddle control disabled |
13 - Smart Bulb Mode Behavior
Set reporting behavior for disabled physical control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | switch reports on/off status and change LED indicator state even if physical and Z-Wave control is disabled (default) |
| 1 | 1 | switch doesn't report on/off status or change LED indicator state when physical (and Z-Wave) control is disabled. |
14 - LED Indicator Color
Choose the color of the LED indicator.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | white |
| 1 | 1 | blue |
| 2 | 2 | green |
| 3 | 3 | red |
15 - LED Indicator Brightness
Choose the LED indicator's brightness level.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | bright (100%) |
| 1 | 1 | medium (60%) |
| 2 | 2 | low (30%) |
16 - Association Reports
Choose how the switch reports its status back to the hub.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Binary switch report for Z-Wave control, basic set report for paddle control |
| 1 | 1 | binary switch report for both Z-Wave and paddle control (default) |
1. Initiate inclusion (pairing) in the app (or web interface). 2. TAP UP 3 TIMES QUICKLY if using traditional Z-Wave inclusion.
1. Bring your Z-Wave gateway (hub) close to the switch if possible 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]) 3. Tap the lower paddle on the switch 3 times quickly (the LED indicator will start blinking blue) 4. Your hub will confirm exclusion, the LED indicator on the switch will turn green for 3 seconds, and the device will disappear from your controller's device list
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the switch, press and hold the lower paddle for 10 seconds until the LED indicator starts blinking. Release paddle, and immediately after, tap the lower paddle 5 times to complete the reset. The LED indicator will flash blue 3 times and turn red for 3 seconds to confirm successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
