Square D
Z-Wave Plus Switch
SQR14102**Z (** means color code)
Binary Switch
HW: 1 FW: 1.17
ZGM130
7.13.6
0x0447 (1095)
0x000E (14)
0x1106 (4358)
ZC12-21030193
2021-03-04 13:17:26.680664
N/A
Enhanced 232 Slave
Always On Slave
Z-WAVE SWITCH SP/3-WAY ENERGY MON
The Square D 15 Amp Z-Wave Switch Single Pole/3-WAY Energy Monitoring is the professionals choice for secure reliable lighting control. Sensitive enough to control the low wattage demands of a single LED yet as well as the demands of bright outdoor lighting. Perfect for monitoring energy usage in bedrooms where the switch controls the receptacles. It works with any Z-Wave hub and can be grouped with up to 5 other Z-Wave Plus devices.

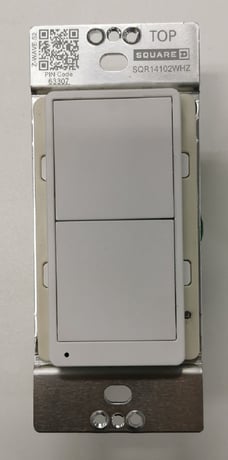

Product Image
1 - LED indicator Status
Synchronization of load power and LED indicator.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power On, LED Off; Power Off, LED On |
| 1 | 1 | Power On, LED On;Power Off, LED Off |
2 - Delayed OFF Time
Delay off means when users press button to turn off the load, there’s a reaction time.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 240
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 240 |
3 - Power On Status
When the device is powered on, the initial status.Size: 1 byte
Default: 0
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | Off |
| 2 | 0 | On |
| 3 | 0 | Last State |
4 - Child Lockout Enable
Child lockout feature can enabled and disabled local control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 0 | Enable |
A. SmartStart inclusion: The feature assumes the gateway has implemented SmartStart. Users could use the APP of the gateway or the gateway camera to scan the QR code on device or on device package before powering on the device, and then when the device is powered on, it shall be automatically added to the gateway. B. Manual inclusion (Figure 6): When the gateway is in adding mode (please refer to the instruction of the Z-Wave gateway for the operations on gateway itself).
Exclusion from a Z-Wave network (Figure 6): When the gateway is in removing mode (please refer to the instruction of the Z-Wave gateway for the operations on gateway itself).
Long press the reset button for >20 seconds till the blue LED blink 5 times within one second.
The DSK can be found on a lable inside the product packaging.
| Meter type |
|---|
| Electric Meter Consumption |
