Sensative
Strips Comfort 700
11 02 021
Notification Sensor
HW: 1 FW: 2.02
ZGM130
7.13.7
0x019A (410)
0x0004 (4)
0x000C (12)
ZC12-21030197
2021-03-10 16:45:03.040262
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Strips Comfort 700 is a very discreet multi-function sensor and with a built-in temperature and humidity sensor, an ambient light sensor, 10 year battery life and our unique +Switch to trigger scenarios, it’s the perfect addition to any room.
Strips Comfort 700 is a very discreet multi-function sensor, with a built-in accurate temperature and humidity sensor, an ambient light sensor, 10 year battery life and our unique +Switch to trigger scenarios, it’s the perfect addition to any room. Strip Comfort 700 can be configured to send temperature, humidity and ambient light reports periodically, or based upon changes from last report. It can also calculate and report the average temperature periodically. You can also set Strips Comfort 700 to send alert reports when a set temperature or light level has been reached. Strips Comfort 700 comes with our +Switch slider that can be used to trigger scenarios or activate other devices such as lights or blinds. Strips Comfort 700 supports associations to enable connectivity directly with other Z-Wave Plus devices without requiring a Z-Wave gateway. Z-Wave Plus 700 series sensors bring a wealth of additional valued features such as longer range, low power consumption for an extended battery life and SmartStart technology for instant enrolling. With SmartStart, device inclusion can be initiated automatically by simply removing the included magnets. The Z-Wave gateway then performs the inclusion process in the background without the need for user interaction. 700 Series provides a direct range of 100 meters, an improvement of 60 meters over the 500 series and also includes the industry’s best S2 security, providing Strips with the ultimate combination of features for your smart home.

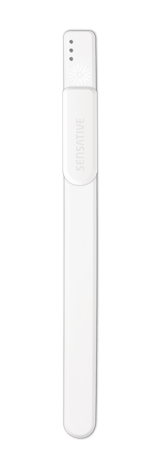

Product Image
View configuration parameters (23)
2 - LED alarm event reporting
Turn On or Off LED for specific event indications (ex. alarms)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On, but no LED indication for associated nodes (1/5 blinks) |
| 2 | 0 | On with LED indications based on success/fail for BOTH the gateway and the associated nodes |
4 - Temperature & Humidity reporting
Select temperature and humidity sensor reportingSize: 1 byte
Default: 2
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On. Sends temperature/humidity based on difference from last reported value (set in config parameters 26 and 28) |
| 2 | 0 | On. Timed reporting of the actual temperature and the actual humidity value (set time in config parameter 25) |
| 3 | 0 | On. Timed reporting of the average temperature value between reports. Will also send the actual humidity value (set time in config parameter 25) |
5 - Temperature unit
Select the temperature scale Default: 0 (Except US frequency) or 1 (US frequency)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Celcius |
| 1 | 0 | Fahrenheit |
6 - Temperature alarms
Turn On or Off temperature alarm (Independent of config parameter 4 setting)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
7 - High temperature alarm level
Select high temperature alarm level "-20 to +80 (degree C) or -4 to +176 (degree F) (US frequency)" Default: "40 C or 104 F (US frequency)"Size: 2 bytes
Default: 104
Minimum: -4
Maximum: 176
Possible values
| From | To | Desription |
|---|---|---|
| -4 | 176 | (degree F) (US frequency) |
8 - Low temperature alarm level
Select low temperature alarm level "-20 to +60 (degree C) or -4 to +140 (degree F) (US frequency)" Default: "5 C or 41 F (US frequency)"Size: 2 bytes
Default: 41
Minimum: -4
Maximum: 140
Possible values
| From | To | Desription |
|---|---|---|
| -4 | 140 | (degree F) (US frequency) |
9 - Ambient light reporting
Turn on and off ambient light reporting. Settings 2-8 turn on ambient light reporting and adds a filter meant to decrease responsiveness of reporting, in order to avoid short fluctuations of light, such as car headlights. (Does not affect reporting as set in config parameter 10 & 11)Size: 1 byte
Default: 8
Minimum: 0
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | Reporting visual changes without filter (This configuration will affect the sensor battery life if placed where light fluctuates significantly) |
| 2 | 8 | Filter length. 2 is the fastest filter allowing quick responses. 8 is a slower filter setting and will give the longest battery life |
10 - High ambient light (LUX) level trigger
The sensor will send a light report when the light rises above this level. Can be used in scenarios to trigger other devices. When enabling parameter 10, parameter 11 must also be set with a lower value, else the trigger stays offSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 64000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 20 | 64000 | LUX |
11 - Low ambient light (LUX) level trigger
The sensor will send a light report when the light goes below this level. Can be used in scenarios to trigger other devices. When enabling parameter 11, parameter 10 must also be set with a greater value, else the trigger stays offSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 42000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 10 | 42000 | LUX |
25 - Temperature and Humidity reporting time (Activat
Select the number of minutes between reports (15 mins to 24 hrs)Size: 2 bytes
Default: 30
Minimum: 15
Maximum: 1440
Possible values
| From | To | Desription |
|---|---|---|
| 15 | 1440 | Minutes between reports (periodic reporting) |
26 - Temperature change for next report (Activated i
Temperature must change by this value for new a reportSize: 1 byte
Default: 1
Minimum: 5
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 100 | Input value converted to one decimal place [= 0.5 to 10.0 (degree C/F) ] |
28 - Humidity change for next report (Activated in p
Humidity must change by this value for a new reportSize: 1 byte
Default: 5
Minimum: 2
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 10 | % |
29 - Slider switch function
Select if the switch should act as a binary switch or a timed switch.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | Binary Switch |
| 2 | 0 | Timed Switch |
30 - Timed Switch duration
Select the duration that should trigger the opposite state of the Switch (if 2 is selected in parameter 29)Size: 1 byte
Default: 5
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | minutes |
31 - Use Multi-Command encapsulation
Send Temperature and Humidity sensor value reports and or Temperature Alarms related reports (Notification Report + Multi-Level Sensor Report + Central Scene Notification) in one message, this saves battery power. Make sure your gateway supports Multi-Command Command Class first.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
32 - Use Central Scene Notifications
Central Scene Notifications are sent for the Slider Switch state change, High and Low Temperature Alarms and High and Low Ambient Light states. Scenes could be configured in the gateway. Scenes allow multiple devices to be controlled by a single Z-Wave command.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
33 - Basic Set value sent to Association group 3 when
This parameter defines the value sent to the devices in the Association group 3 (using Basic Command Class).Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Basic Set value sent to Association group 3 when the slider switch is on |
34 - Basic Set value sent to Association group 3 when
This parameter defines the value sent to the devices in the Association group 3 (using Basic Command Class).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Basic Set value sent to Association group 3 when the slider switch is off |
35 - Thermostat mode for Association group 4 on Binar
This config parameter defines the value sent to the devices in the Association group 4 (using Thermostat Mode Command Class). Refer the Thermostat modes supported by the associated nodeSize: 1 byte
Default: 1
Minimum: 1
Maximum: 13
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 13 | Thermostat mode for Association group 4 when the slider switch is on |
36 - Basic Set value sent to Association group 6 on H
This config parameter defines the value sent to the devices in the Association group 6 (using Basic Command Class)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Basic Set value sent to Association group 6 on High Temperature Alarm |
37 - Basic Set value sent to Association group 6 on L
This config parameter defines the value sent to the devices in the Association group 6 (using Basic Command Class)Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Basic Set value sent to Association group 6 on Low Temperature Alarm |
38 - Basic Set value sent to the Association group 7
This config parameter defines the value sent to the devices in the Association group 7 (using Basic Command Class)Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Basic Set value sent to the Association group 7 on High ambient light level report |
39 - Basic Set value sent to the Association group 7
This config parameter defines the value sent to the devices in the Association group 7 (using Basic Command Class)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Basic Set value sent to the Association group 7 on Low ambient light level report |
Operating instructions (5)
Place the controller into pairing mode and perform the "wake up" pattern as described below. 1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away. 2. Repeat this 3 times. A final short blink will confirm that the user-command was successful.
Place the controller into remove mode and perform the "wake up" pattern as described below. 1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away. 2. Repeat this 3 times. A final short blink will confirm that the user-command was successful.
1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away. 2. Repeat this 3 times. A final short blink will confirm that the user-command was successful.
You may need to reset Strips if your Z-Wave controller is missing or not responding. Follow the instructions for Wake Up above, but on the 3rd repetition, keep the magnet at the rounded edge for 10 seconds. A long LED signal indicates success.
"Start by scanning the Z-Wave QR Code present on the back label of the Strip, or on the DSK leaflet present in the box."
Document (1)
| Type | Name | |
|---|---|---|
| Product Manual | Strips Comfort 700 v1.6.pdf |
Features (3)
| Type | Value(s) |
|---|
Supported notifications (5)
| Group | Type |
|---|---|
| Heat Alarm |
|
| Home Security |
|
Supported sensors (3)
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Humidity |
