Ring
Outdoor Siren EU
5AT3T4
Sound Switch DT
HW: 1 FW: 1.11
EFR32Z
7.12.4
0x0346 (838)
0x0701 (1793)
0x0301 (769)
ZC12-21030201
2021-03-19 12:27:02.426302
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Ring Alarm Outdoor Siren is a wireless device for the Ring Alarm system to notify users of an emergency.
Ring Alarm Outdoor Siren is a wireless device for the Ring Alarm system to notify users of an emergency. The Outdoor Siren can help others quickly identify your home with an adjustable volume siren and flashing LED lights. The Ring Alarm Base Station is required to enable Outdoor Siren features and functions within the Ring app.

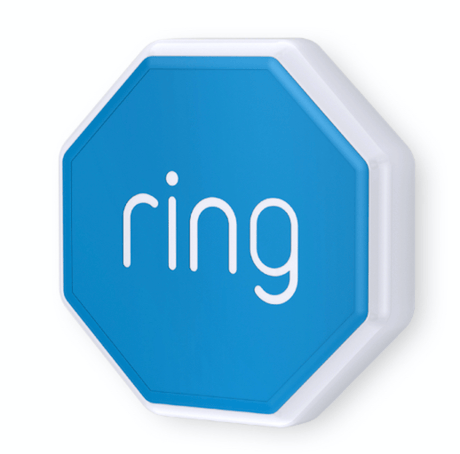

Product Image
.jpg)

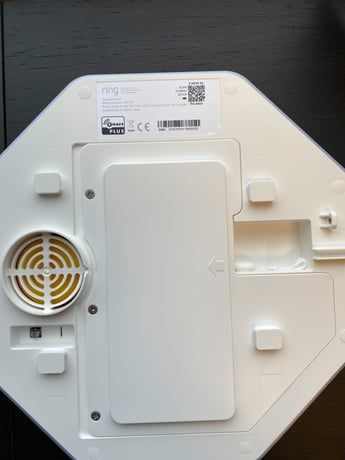

Zwave Logo on the product
.jpg)
Front of the device
1 - Heartbeat Interval
This parameter is the number minutes between heartbeats. Heartbeats are automatic battery reports on a timer after the last event.Size: 1 byte
Default: 70
Minimum: 1
Maximum: 70
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 70 | Heartbeats |
2 - Application Retries
Number of application level retries attempted for messages either not ACKed or messages encapsulated via supervision get that did not receive a report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | Number of application level retries attempted for messages |
3 - Application Level Retry Base Wait Time Period
The number base seconds used in the calculation for sleeping between retry messages.Size: 1 byte
Default: 5
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | Application Level Retry Base Wait Time Period |
4 - Battery Low Threshold
Once the battery crosses this percentage threshold, it will last for 2 weeks (including 1 siren activation)Size: 1 byte
Default: 25
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Low Battery Threshold (percentage) |
5 - Battery Critical Threshold
Critical Battery Threshold (percentage) - Once the battery crosses this threshold, it will last for 1 week (including 1 siren activation)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Critical Battery Threshold (percentage) |
6 - Supervision Report Timeout
The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor before attempting a retry.Size: 2 bytes
Default: 10000
Minimum: 500
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 5000 | The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor before attempting a retry. |
7 - Z-Wave Sleep Timeout
Stay awake time after last comms with hubSize: 1 byte
Default: 10
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 15 | Z-wave Sleep Timeout |
8 - Siren duration
Siren duration limit in minutes that siren will sound forSize: 1 byte
Default: 3
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | Siren duration Limit (in min) |
9 - QRBP switch Threshold
Once the rechargeable battery has charged to this percentage threshold, device can switch to it if running on D-cells.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | QRBP switch Threshold: (percentage) |
10 - Blinking Logo Ramp time
Ramp time in units of ten milliseconds each to turn the Logo LED on/off when BlinkingSize: 1 byte
Default: 50
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Blinking Logo Ramp time |
Classic Inclusion Steps: 1. Initiate add flow for Security Devices in the Ring mobile application – Follow the guided add flow instructions provided in the Ring mobile application. 2. Select add manually and enter the 5-digit DSK pin found on the package of the Ring Alarm Outdoor Siren or the 5-digit DSK pin found under the QR code on the device. 3. After powering on the device, press and hold the test under the battery cover ~3 seconds. Release the button and the device will enter Classic inclusion mode which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the green LED will blink three times followed by a brief pause, repeatedly. When Classic inclusion times-out, the device will blink alternating red and green a few times.
Exclusion Instructions: 1. Initiate remove “Ring Alarm Outdoor Siren” flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” to remove the device. This will place the controller into Remove or “Z-Wave Exclusion” mode. 2. Locate the reset button on the back of the device under the battery compartment. 3. With the controller in Remove (Z-Wave Exclusion) mode, use a paper clip or similar object and tap the pinhole button. The device’s red LED turns on solid to indicate the device was removed from the network.
Wake-Up Notification Not applicable. Ring Alarm Outdoor Siren is a Frequently Listening Receiver Slave (FLiRS) device and does not support Wake Up Command Class.
Factory Default Instructions 1. To restore Ring Alarm Outdoor Siren to factory default settings, locate the reset button underneath the battery cover. 2. Using a paperclip or similar object, insert it into the pinhole, press and hold the button down for 10 seconds. 3. The device will rapidly blink green continuously for 10 seconds. After about 10 seconds, when the green blinking stops, release the button. The red LED will turn on solid to indicate the device was removed from the network. Note: Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.

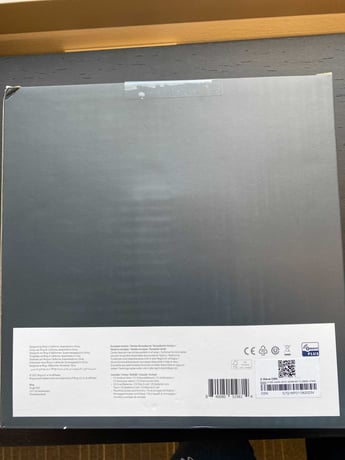

Page 2 of 13 - "When prompted for the QR Code or PIN, you may find them on the back of the device, on the box, or on a card inside the box."
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security |
|
| Power Management |
|
| System |
|
