Enbrighten
LED Bulb
52190/ZW7105
Light Dimmer Switch
HW: 1 FW: 4.15
ZM5202
6.81.06
0x0063 (99)
0x4C42 (19522)
0x3035 (12341)
ZC10-21047018
2021-04-15 15:19:23.291558
N/A
Enhanced 232 Slave
Always On Slave
Enbrighten Z-Wave A19 60W Equivalent LED Bulb, 2700K, SmartStart, 500SWB
Set the scene with the Enbrighten Z-Wave Smart LED Bulb. When paired with a compatible hub, the smart bulb supports ON/OFF/dim commands and programmed settings. Wirelessly operate lamps, sconces, ceiling lights and other fixtures that use standard A19 bulbs for effortless management of your home. Your automation possibilities are seemingly infinite when connected to hubs from Ring, SmartThings, Wink, Vivint, HomeSeer, Honeywell, Fibaro, Trane, Nexia, ADT, Vera, eZLO and more!

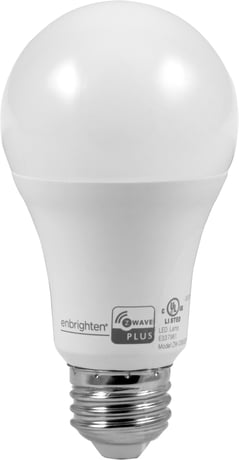

Product Image
1 - Dim Level
Dim level when light bulb is turned ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Dim level when light bulb is turned ON |
9 - Dim Level
Dim level when light bulb is turned ONSize: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Dim level when light bulb is turned ON |
10 - Dimming/Brightening Step Timing
Dim SpeedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | Adjust Dim Speed |
Adding your device to a Z-Wave network 1. When initially powered, the bulb is in SmartStart inclusion mode. If your hub supports SmartStart, scan the QR code. 2. To change to classic inclusion mode, turn bulb OFF, then ON three times. The bulb rapidly flashes four times to indicate classic mode. 3. To change back to SmartStart inclusion mode, turn the bulb OFF, then ON three times. The bulb rapidly flashes six times to indicate SmartStart mode. NOTE: The bulb attempts to connect in either inclusion mode for 10 seconds. If not found after 10 seconds, cycle the bulb OFF/ON to restart the inclusion mode. 4. In either method, the bulb flashes twice to indicate it was added to the network. NOTE: The bulb remains in the last known inclusion mode when cycled OFF/ON once. You have complete control to turn your light ON/OFF or set dim levels according to groups, scenes, schedules and interactive automations programmed by your controller. If your Z-Wave certified controller features remote access, you can control your lighting from your mobile devices. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1). Enter the 5-digit pin code. Figure 1. NOTE: SmartStart enabled products can be added into a Z-Wave network by scanning the QR code on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.
To remove and reset the device 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, turn bulb OFF, then ON three times. The smart bulb flashes twice when removed from the network.
To return your smart bulb to factory defaults Starting with the bulb on, cycle the wall switch OFF/ON four times. 1. Turn the switch off, pause one second, then turn back ON. 2. Repeat three times (four times total). 3. The smart bulb flashes twice when reset. NOTE: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
N/A
Base of the bulb
| Type | Value(s) |
|---|
