Square D
Z-Wave Plus Dimmer
SQR22102**Z (** means the color code)
Multilevel Switch
HW: 1 FW: 1.10
ZGM130
7.13.6
0x0447 (1095)
0x000E (14)
0x1202 (4610)
ZC12-21050230
2021-05-17 10:35:29.999992
N/A
Enhanced 232 Slave
Always On Slave
Z-WAVE REMOTE DIMMER SWITCH
The Square D 600W Z-Wave Plus Energy Monitoring Dimmer is the professionals choice for secure reliable lighting control. For use in areas where variable lighting is a requirement like the living room where you want bright light for reading on the couch or dim lighting for watching a movie. Perfect for monitoring energy usage and determining cost savings associated with dimming lights. It works with any Z-Wave hub and can be grouped with up to 5 other Z-Wave Plus devices.

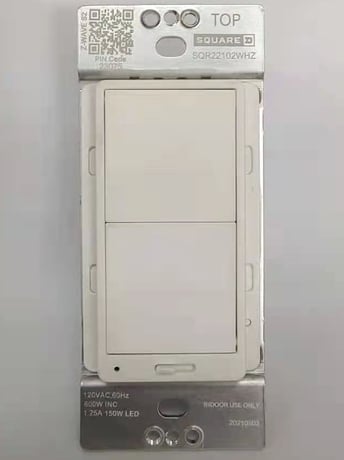

Product Image
1 - LED indicator Status
Synchronization of load power and LED indicatorSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power On, LED Off; |
| 1 | 1 | Power On, LED On; |
2 - Delayed OFF Time
Delay off means when users press button to turn off the load, there’s a reaction time.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 240
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 240 | Delay off time. |
3 - Power On Status
When the device is powered on, the initial statusSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Off |
| 2 | 2 | On(max level) |
| 3 | 3 | Last State |
4 - Child Lockout Enable
Child lockout feature can enabled and disabled local controlSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
5 - Dimmer Fading up Time
This changes the speed in which the attached light dims up or down. A setting of 0 should turn the light immediately on or off (almost like an on/off switch). Increasing the value should slow down the transition speed. The value represents the time required to adjust the brightness to100%.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 180 | Fading up time (the time from off to full brightness) |
6 - Kickstart Enable
This feature ensures lamp start-up even at low dim levels, Kickstart level: 40%.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
7 - Set Min. Dim Level
The minimum level that the dimmer allows the bulb to be dimmed to.Useful when the user has an LED bulb that does not turn on or flickers at a lower level.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 45
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 45 | Set Min. Dim Level |
8 - Set Max. Dim Level
The maximum level that the dimmer allows the bulb to be dimmed to. Useful when the user has an LED bulb that reaches its maximum level before the dimmer value of 99.Size: 1 byte
Default: 99
Minimum: 55
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 55 | 99 | Set Max. Dim Level |
Quick click x3, within 1.5s/ interval <0.5s
Quick click x3, within 1.5s/ interval <0.5s
Long Press> 20s Reset button
The DSK can be found on the product .
| Meter type |
|---|
| Electric Meter Consumption |
