Minoston
Z-Wave Meter Plug
MP21ZP
On/Off Power Switch
HW: 255 FW: 1.00
ZM5202
6.71.03
0x0312 (786)
0xFF00 (65280)
0xFF0E (65294)
ZC10-21077045
2021-07-26 10:28:40.885857
N/A
Enhanced 232 Slave
Always On Slave
It is smart plug type device controlled by Z-Wave™ controller and can be configured in Z-Wave™ sensor network, if Z-Wave ™certified controller features remote access, you can dim lights at home from your mobile phone separately, and manual dim light by push button .
It is smart plug type device controlled by Z-Wave™ controller and can be configured in Z-Wave™ sensor network, if Z-Wave™ certified controller features remote access, you can dim lights at home from your mobile phone separately, and manual dim light by push button .

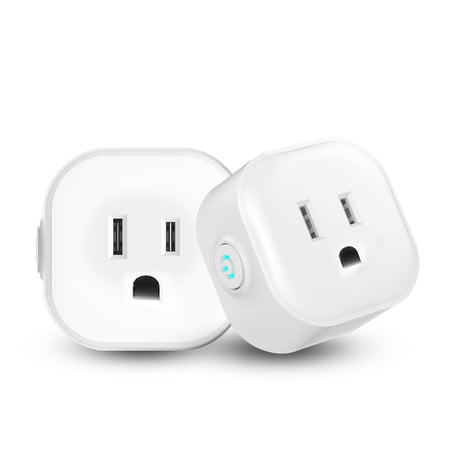

Product Image
1 - Parameter 1
Restores state after power failureSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The state before a power outage |
| 1 | 1 | outlet on |
| 2 | 2 | outlet on |
2 - Parameter 2
Power Wattage Report Value ThresholdSize: 4 bytes
Default: 10
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Power Wattage Report Value Threshold(Wattage) |
3 - Parameter 3
Power Wattage Report Frequency (Timer)Size: 4 bytes
Default: 30
Minimum: 30
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 2678400 | Power Wattage Report Frequency (Timer) |
4 - Parameter 4
Energy (kWh) Report Frequency (Timer)Size: 4 bytes
Default: 300
Minimum: 300
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 300 | 2678400 | Energy (kWh) Report Frequency (Timer) |
5 - Parameter 5
Voltage (V) Report Frequency (Timer)Size: 4 bytes
Default: 300
Minimum: 300
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 300 | 2678400 | Voltage (V) Report Frequency (Timer) |
6 - Parameter 6
Electricity (A) Report Frequency (Timer)Size: 4 bytes
Default: 300
Minimum: 300
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 300 | 2678400 | Electricity (A) Report Frequency (Timer) |
7 - Parameter 7
Overload Protection (Current)Size: 1 byte
Default: 13
Minimum: 1
Maximum: 16
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 16 | Overload Protection (Current) |
8 - Parameter 8
Endpoint1 Enable Auto Turn-OFF TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-OFF Timer Disabled |
| 1 | 1 | Auto Turn-OFF Timer Disabled |
9 - Parameter 9
Endpoint1 Count Down Configuration(Turn off the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Endpoint1 Count Down Configuration(Turn off the output by time） |
10 - Parameter 10
Endpoint1 Enable Auto Turn-ON TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-ON Timer Disabled |
| 1 | 1 | Auto Turn-ON Timer Enabled |
11 - Parameter 11
Endpoint1 Count Down Configuration(Turn on the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Endpoint1 Count Down Configuration(Turn on the output by time） |
16 - Parameter 16
Manual ControlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Manual Control Disabled |
| 1 | 1 | Manual Control Enabled |
17 - Parameter 17
Status LED ConfigurationSize: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator will display power consumption whenever the device is plugged in |
| 1 | 1 | LED indicator will display power consumption whenever the device is ON in and will turn off |
| 2 | 2 | LED indicator will display the level of power consumption for 5 seconds only whenever the device is turned on |
| 3 | 3 | Always OFF |
ADD or Remove the MP21ZP from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the PROG button Three times in one second. Include MP21ZP to/from a Z-Wave Gateway with supporting Security.The MP21ZP can support the Primary Controller that implemented the Notice: Including a node ID allocated by Z-WaveTM Controller means “Add” or “Inclusion”. Excluding a node ID allocated by Z-WaveTM Controller means “Remove” or “Exclusion”.
ADD or Remove the MP21ZP from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the PROG button Three times in one second. Include MP21ZP to/from a Z-Wave Gateway with supporting Security.The MP21ZP can support the Primary Controller that implemented the Notice: Including a node ID allocated by Z-WaveTM Controller means “Add” or “Inclusion”. Excluding a node ID allocated by Z-WaveTM Controller means “Remove” or “Exclusion”.
Press the button twice quickly and then press and hold the button 10S.device will reset (Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | Over-current status: Over-current detected |
| Meter type |
|---|
| Electric Meter Consumption |
