JascoPro Series
LED Bulb
64637/ZW7105
Light Dimmer Switch
HW: 1 FW: 5.02
ZM5202
6.82.01
0x0063 (99)
0x4C42 (19522)
0x3036 (12342)
ZC10-21077046
2021-07-19 10:17:30.424537
N/A
Enhanced 232 Slave
Always On Slave
Wirelessly operate lamps, sconces, ceiling lights and other fixtures that use standard A19 bulbs for effortless management of your home with the JascoPro Series Z-Wave™ Smart LED Bulb
Set the scene with the JascoPro Series Z-Wave™ Smart LED Bulb. When paired with a compatible hub, the smart bulb supports ON/OFF/dim commands and programmed settings. Wirelessly operate lamps, sconces, ceiling lights and other fixtures that use standard A19 bulbs for effortless management of your home. Your automation possibilities are seemingly infinite when connected to hubs from Ring, SmartThings, Wink, Vivint, HomeSeer, Honeywell, Fibaro, Trane, Nexia, ADT, Vera, eZLO and more!

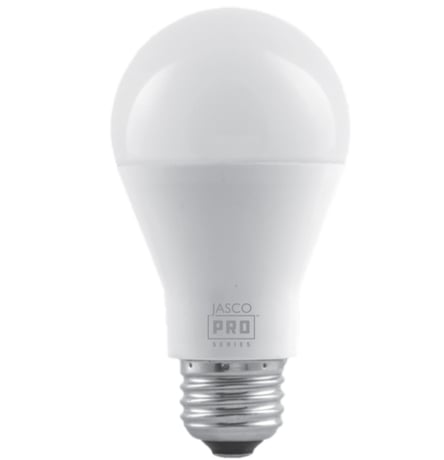

Product Image
1 - Dim Level
Dim level when light bulb is turned ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Dim level when light bulb is turned ON |
9 - Dim Level
Dim level when light bulb is turned ONSize: 1 byte
Default: 0
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Dim level when light bulb is turned ON |
10 - Dimming/Brightening Step Timing
Adjust Dim SpeedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | Adjust Dim Speed |
Adding your device to a Z-Wave network 1. Follow the instructions for your Z-Wave certified controller to add the LED smart bulb to the Z-Wave network. 2. Once the controller is ready to add your LED smart bulb, turn on power to the socket. The LED smart bulb is automatically added into your network within 30 seconds, and the smart bulb flashes twice when added to the network. 3. You have complete control to turn ON/OFF your lamp or set dim levels according to groups, scenes, schedules and interactive automations programmed by your controller. If your Z-Wave certified controller features remote access, you can control your lighting from your mobile devices.
To remove and reset the device 1. Start with the bulb powered off at the wall switch. 2. Follow the instructions for your Z-Wave certified controller to remove the smart bulb from the Z-Wave network. 3. Once the controller is ready to remove your smart bulb, turn ON the light switch. The smart bulb will flash twice when removed from the network.
To return your smart bulb to factory defaults Starting with the bulb on, cycle the wall switch OFF/ON four times. 1. Turn OFF the switch, pause one second and turn ON again. 2. Repeat three times (four times total). 3. The smart bulb flashes twice when reset. NOTE: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
