Zooz
Door/Window Sensor
ZSE41
Notification Sensor
HW: 1 FW: 1.00
ZGM130
7.13.9
0x027A (634)
0x7000 (28672)
0xE001 (57345)
ZC12-21080282
2021-08-04 12:54:56.913131
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The 700 series XS Open | Close Sensor was designed to report status changes for doors and windows quickly and reliably.
PRODUCT HIGHLIGHTS: - Quick and reliable open/close alerts sent to your Z-Wave™ hub - NEW 700 series chip for faster communication and more battery life than ever - Extra small for discreet mounting - Waterproof case available for outdoor installs (sold separately) - Powered by a single coin battery - The latest S2 security and SmartStart for secure set-up - Supports OTA firmware updates PRODUCT SPECS: - Model Number: ZSE41 - Z-Wave™ Frequency: 908.42 MHz - Power: 1 x CR2032 battery - Operating Temperature: 32° – 104° F - Dimensions: 1.9” x 1” x 0.3” (magnet: 1.26” x 0.3” x 0.3”) - Range: Up to 130 feet line of sight - Installation and Use: Indoor or outdoor with waterproof case (sold separately)

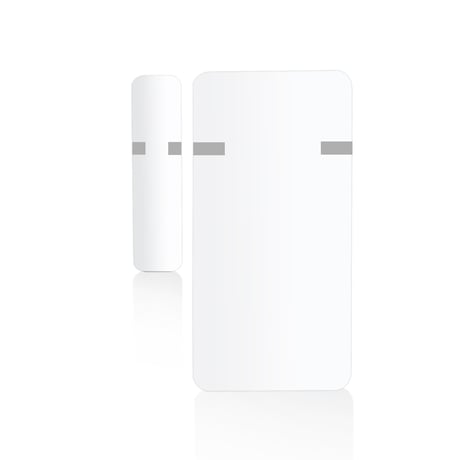

Product Image
1 - LED Indicator Mode
Turn the LED indicator for open/close status change on or off.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator won’t blink when the sensor’s status is changed from open to close and vice versa |
| 1 | 1 | LED indicator will blink when the sensor’s open/close status is changed (default) |
3 - Battery report
Battery report threshold %Size: 1 byte
Default: 10
Minimum: 1
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | % |
4 - Low Battery Alarm
Low battery alarm reportSize: 1 byte
Default: 20
Minimum: 10
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | % |
5 - Status Notification on Magnet Closure
Decide which status should the sensor report to the hub when the magnet touches the sensor.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | closed status reported when the magnet is by the sensor (default) |
| 1 | 1 | open status reported when the magnet is by the sensor. |
6 - Group 2 ON report delay
Set the delay before the sensor sends the ON basic set command to devices in Group 2 after the door is open.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3600 | seconds |
7 - Group 2 OFF report delay
Set the delay before the sensor sends the OFF basic set command to devices in Group 2 after the door is closed.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3600 | seconds |
Initiate inclusion (pairing) in the app (or web interface). Not sure how? [email protected] While the hub is looking for new devices, click the Z-Wave button 3 times as quickly as possible. The LED indicator will start flashing to confirm inclusion mode and turn off once inclusion is completed.
1. Bring the sensor within direct range of your Z-Wave hub. 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]). 3. Click the Z-Wave button 3 times as quickly as possible. 4. Your hub will confirm exclusion and the sensor will disappear from your controller's device list.
The sensor’s wake-up interval is set to 12 hours by default to save battery life. Use the Wake Up Command Class to adjust the interval. Click the Z-Wave button 4 times quickly to wake the sensor up manually. The LED indicator will flash twice to confirm the device is awake. During wake-up, the sensor turns the Z-Wave radio on for one minute to receive communication from the hub. Long wake-up interval will not affect how often the sensor reports to your hub so we recommend leaving the default setting to conserve battery.
When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. In order to complete the process, make sure the sensor is powered, then click the Z-Wave button twice and hold it the third time for 10 seconds. The LED indicator will blink continuously. Immediately after, click the Z-Wave button twice more to finalize the reset. The LED indicator will flash 3 times to confirm a successful reset.
Outdoor use available with a dedicated waterproof case (sold separately).
If you’re using an S2 hub, it will ask you to enter the DSK PIN or scan the QR code printed on the back cover sticker of the sensor to complete SmartStart inclusion.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
