Mini Smart Plug
N4001
On/Off Power Switch
HW: 255 FW: 1.255
ZM5202
6.71.01
0x0312 (786)
0xAC01 (44033)
0x4001 (16385)
ZC10-21087048
2021-08-24 10:14:23.892789
N/A
Enhanced 232 Slave
Always On Slave
This product can be operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network
This product can be operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal ,around obstacles and radio dead spots to ensure that the signal is received at its intended destination.

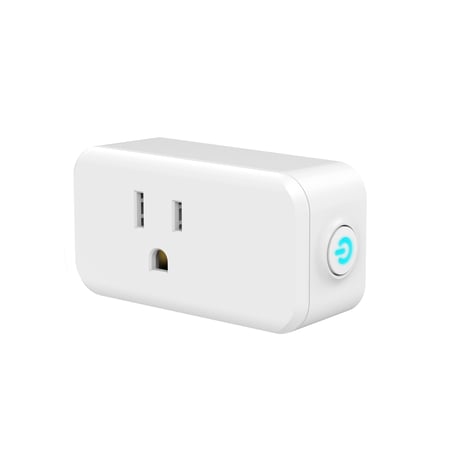

Product Image
1 - Status LED
Status LED ConfigurationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED on when relay on, LED off when relay off |
| 1 | 1 | LED on when relay off, LED off when relay on |
| 2 | 2 | LED Always OFF |
2 - \Count Down Configuration
Count Down Configuration（The countdown time, the socket closed）Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Countdown time can be set up for this time |
ADD or Remove the N4001 from the existing Z-Wave™ home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the PROG button five times in one second.
ADD or Remove the N4001 from the existing Z-Wave™ home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the PROG button five times in one second.
MANUAL RESET ---Power off N4001 ---keep holding the PROG button ---Power on,Press and keep holding the PROG button for no less than 10 seconds. Remark : All the setting and data will be permanently deleted. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected |
