Brand
Rent Café
Name
Rent Café HomeIQ Hub
Part number
H3PS-WC1
Device type
Gateway
OEM Version
HW: 1 FW: 7.16:07.16
Hardware platform
ZGM130
Z-Wave version
7.16.1
Manufacturer ID
0x0450 (1104)
Product type ID
0x0001 (1)
Product ID
0x0001 (1)
Certificate number
ZC12-21110324
Certification date
2021-11-19 10:32:45.568443
EAN barcode
N/A
Library type
Bridge Controller
Role type
Central Static Controller
Description
Rent Café Home IQ Hub, a Yardi-designed gateway that connects smart devices to the Yardi IoT cloud. Home IQ Hub can connect to devices via Z-Wave™ and Wi-Fi. The hub contains a cellular SIM card and antenna that connects with the Yardi IoT cloud via a 4G LTE connection.
Description long
Yardi's IoT solutions are powered by the Rent Café Home IQ Hub, a Yardi-designed gateway that connects devices to the Yardi IoT cloud. The Home IQ Hub can connect to devices via Z-Wave™ and Wi-Fi. The Home IQ Hub contains a cellular SIM card and antenna that connects with the Yardi IoT cloud via a 4G LTE connection. The hubs are installed in the units by the on-site staff and Yardi provides training to add devices. Residents can control all the smart devices through the existing RENTCafé Resident App.
Z-Wave Features
Categories (2)
All Controllers
Gateway Controller
Z-Wave Chip Series
700
Region (1)

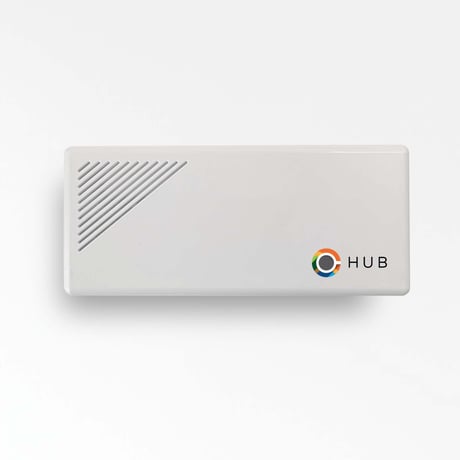

Product Image
0 / 0
No configuration parameters available.
Controller Learn Mode
Not available
Factory Reset
Using the console application you can execute the “Network-Reset” command to factory reset the Z-Wave controller.
Where to find S2 DSK on product
The Device Specific Key (DSK) for the controller is available through the console application using the “DSK-Get” command. The full DSK will be printed.
Capability Rediscovery
The “Node-Update” command will update the network status and device information of the provided node ID. If the node update does not fully rediscover the nodes capabilities it will have to be excluded and reincluded into the network.
Controller Replication
Not available
Controller SmartStart Inclusion
Add to Provisioning List o The SmartStart-Add command will prompt for the DSK of the device to be added
Unknown
Adding Non-S2 devices 1. Execute the “Network-Inclusion” command 2. Enter “N” on the “Pre-enter DSK?” prompt 3. Start add node procedure for the device to be added 4. Upon successful completion a message indicating which node ID was allocated to the included node is printed Adding S2 devices 1. Execute “Network-Inclusion” command 2. Enter “N” on the “Pre-enter DSK?” prompt 3. Start add node procedure for the device to be added 4. If prompted, enter PIN (5 digits) to be included 3. Upon successful completion a message indicating which node ID was allocated to the included node is printed
Unknown
Removing devices 1. Execute the “Network-Exclusion” command 2. Start exclusion mode procedure for the device to be removed 3. Upon successful completion a message indicating which node ID was removed is printed
Unknown
Print Provisioning List o SmartStart-Get can be used to see an individual entry o SmartStart-GetAll can be used to see all SmartStart entries Add to Provisioning List o The SmartStart-Add command will prompt for the DSK of the device to be added Remove from Provisioning List o SmartStart-Delete can be used to remove an entry
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm |
|
| CO Alarm |
|
| CO2 Alarm |
|
| Heat Alarm |
|
| Water Alarm |
|
| Access Control |
|
| Home Security |
|
| Power Management |
|
| System |
|
| Emergency Alarm |
|
| Clock |
|
| Appliance |
|
| Home Health |
|
| Siren |
|
| Water Valve |
|
| Weather Alarm |
|
| Irrigation |
|
| Gas alarm |
|
| Pest Control |
|
| Light sensor |
|
| Water Quality Monitoring |
|
| Home monitoring |
|
| Request pending notification | State idle |
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
| Power |
| Humidity |
| Velocity |
| Direction |
| Atmospheric Pressure |
| Barometric Pressure |
| Solar Radiation |
| Dew Point |
| Rain Rate |
| Tide Level |
| Weight |
| Voltage |
| Current |
| Carbon Dioxide (CO2) Level |
| Air Flow |
| Tank Capacity |
| Distance |
| Angle Position |
| Rotation |
| Water Temperature |
| Soil Temperature |
| Seismic Intensity |
| Seismic Magnitude |
| Ultraviolet |
| Electrical Resistivity |
| Electrical Conductivity |
| Loudness |
| Moisture |
| Frequency |
| Time |
| Target Temperature |
| Particulate Matter 2.5 |
| Formaldehyde (CH2O) Level |
| Radon Concentration |
| Methane (CH4) Density |
| Volatile Organic Compound Level |
| Carbon Monoxide (CO) Level |
| Soil Humidity |
| Soil Reactivity |
| Soil Salinity |
| Heart Rate |
| Blood Pressure |
| Muscle Mass |
| Fat Mass |
| Bone Mass |
| Total Body Water (TBW) |
| Basis Metabolic Rate (BMR) |
| Body Mass Index (BMI) |
| Acceleration X-Axis |
| Acceleration Y-Axis |
| Acceleration Z-Axis |
| Smoke Density |
| Water Flow |
| Water Pressure |
| RF Signal Strength |
| Particulate Matter 10 |
| Respiratory Rate |
| Relative Modulation Level |
| Boiler Water Temperature |
| Domestic Hot Water (DHW) Temperature |
| Outside Temperature |
| Exhaust Temperature |
| Water Chlorine Level |
| Water Acidity |
| Water Oxidation Reduction Potential |
| Heart Rate LF/HF Ratio |
| Motion Direction |
| Applied Force on Sensor |
| Return Air Temperature |
| Supply Air Temperature |
| Condenser Coil Temperature |
| Evaporator Coil Temperature |
| Liquid Line Temperature |
| Discharge Line Temperature |
| Suction (Input) Pressure |
| Discharge (Output) Pressure |
| Defrost Temperature (Sensor Defrost) |
| Ozone (O3) |
| Sulfur Dioxide (SO2) |
| Nitrogen Dioxide (NO2) |
| Ammonia (NH3) |
| Lead (Pb) |
| Particulate Matter 1 |
| Meter type |
|---|
| Cooling Meter Consumption |
| Cooling Meter Production |
| Electric Meter Consumption |
| Electric Meter Production |
| Gas Meter Consumption |
| Gas Meter Production |
| Heating Meter Consumption |
| Heating Meter Production |
| Water Meter Consumption |
| Water Meter Production |
