Philio
Multiple Sound Siren
PSE04-HK
Sound Switch DT
HW: 1 FW: 1.02:01.02
ZGM130
7.15.1
0x013C (316)
0x0004 (4)
0x0084 (132)
ZC12-21090307
2021-08-31 11:01:52.023795
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
The PSE04 is a wireless siren, based on Z-WaveTM technology.
The PSE04 is the Z-Wave Plus ™ product, it support the security, OTA... Those newest features of the Z-WaveTM technology. Z- WaveTM is a wireless communication protocol designed for home automation, speci cally to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retro tted into home electronics devices and systems, such as lighting, home access control,

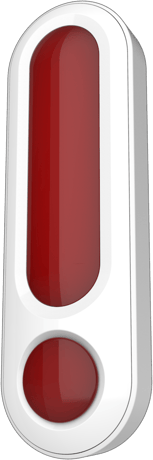

Product Image
1 - Auto Report Tick Interval
The interval time for auto report each tick.Size: 1 byte
Default: 30
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | The interval time for auto report each tick. |
2 - Sound Duration
Play sound duration, 1 tick is 30 seconds.Size: 1 byte
Default: 6
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Play sound duration, 1 tick is 30 seconds. |
3 - Customer Function
Customer function switch, using bit control. Bit0: Disable Trigger Alarm. 0:Enable , 1:Disable. Bit1: Disable Sound. Only using optical alarm. 0:Enable , 1:Disable. Bit2: Temperature Unit. 0:Fahrenheit , 1:Celsius. The Maxmum Value is 255.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Customer function switch, using bit control. The Maxmum Value is 255. |
4 - Auto Report Temperature Time
The interval time for auto report the temperature.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | The interval time for auto report the temperature. |
5 - Temperature Differential Report
The temperature differential to report.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | The temperature di erential to report. |
6 - Auto Report Battery Time
The interval time for auto report the battery level.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | The interval time for auto report the battery level. |
7 - Play Sound Control
Control play sound's level and which sound.Size: 1 byte
Default: 67
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Control play sound's level and which sound. |
1. Have Z-WaveTM Controller entered inclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the LED will light ON 1 second
1. Have Z-WaveTM Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. 3. Node ID has been excluded.
If a Z-Wave controller or other node in the network needs to communicate with a battery-powered device such as a door lock, the controller sends a special beam signal. The purpose of this beam is to wake up the FLiRS device. When the FLiRS device receives this beam, it immediately fully wakes up andthencommunicateswith the controller or other Z-Wave device utilizing standard Z-Wave protocol commands. If the device does not hear a Beam it goes back to full sleep for another period until it partially awakes again and listens for a Beam.
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will ash once. 3. IDs are excluded and all settings will reset to factory default.
The QR code can be found on the device PSE04 or on the box.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
