iDevices
In-Wall Tamper Resistant Smart Outlet
61304/ZW1002
On/Off Power Switch
HW: 255 FW: 5.51
ZM5202
6.82.00
0x0458 (1112)
0x4952 (18770)
0x3235 (12853)
ZC10-21107057
2021-10-05 15:40:01.793886
N/A
Enhanced 232 Slave
Always On Slave
Z-Wave Plus™ In-Wall Smart Receptacle replaces existing light switch and allows remote control from any Z-Wave™ certified hub.
Z-Wave Plus™ In-Wall Smart Receptacle replaces existing light switch and allows remote control from any Z-Wave™ certified hub.

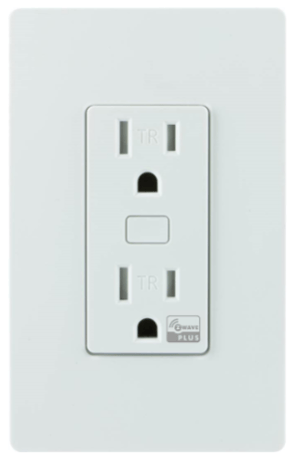

Product Image
3 - LED Light
LED LightSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED On when load is Off, Led Off when load is On |
| 1 | 1 | LED On when load is On, LED Off when load is Off (Default) |
| 2 | 2 | LED always off |
Adding your device to a Z-Wave network 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the program button.
To remove and reset the device 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release program button of the smart outlet.
To return your switch to factory defaults Press the program button five times, then press the program butotn for at least three seconds. The LED will blink five times to confirm. NOTE: This should only be used in the event your networks’ primary controller is missing or otherwise inoperable.
Page 1 section 4. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1). Enter the 5-digit pin code.
