Danalock
Danalock V3-BTZE-EU
Danalock V3-BTZE-EU
Door Lock - Keypad
HW: 2 FW: 1.03:00.10
ZM5202
6.71.03
0x010E (270)
0x0009 (9)
0x0001 (1)
ZC10-21117060
2021-11-11 11:01:06.936748
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Z-Wave™ Controlled door lock with Bluetooth Smart.
Danalock supports: - S0/S2 Z-Wave Security - Bluetooth Smart - Twist Assist - Auto-Lock - Hold And Release - End to End

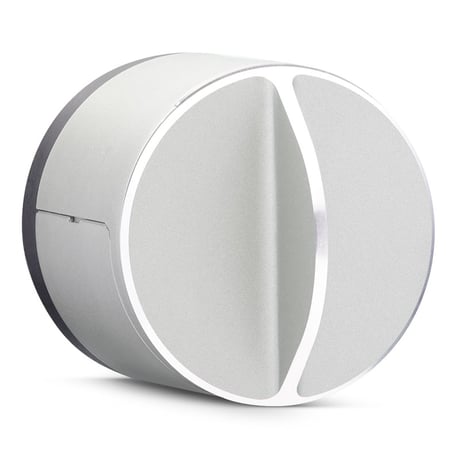

Product Image
1 - Twist Assist
Helps you to lock and unlock your door lock.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 1 | Enabled |
2 - Hold and Release
After a unlock operation the lock holds the lock, so the door can be openedSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 2147483647 | Enable no. of seconds |
3 - Block to Block
The lock will run the motor until it hits resistance.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
4 - BLE Temporary Allowed
The BLE is enabled for a number of seconds.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 1 | 2147483647 | Enable no. of seconds |
5 - BLE Always Allowed
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | BLE Always disabled |
| 1 | 1 | BLE Always enabled |
6 - Autolock
Lock after an unlock. The value is the delay in time before the lock is locked again.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Diable |
| 1 | 2147483647 | Enable no. of seconds |
1. Set the controller in inclusion mode 2. Push the switch once. 3. Wait 5 seconds.
1. Set the controller in exclusion mode 2. Push the switch once. 3. Wait 5 seconds.
Mailbox command class is not supported.
The Danalock can be set to factory settings by pushing the switch ten times. Please use this procedure only when the primary controller is missing or otherwise inoperable.
The DSK can be found inside the battery lid of the product.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
