Everspring

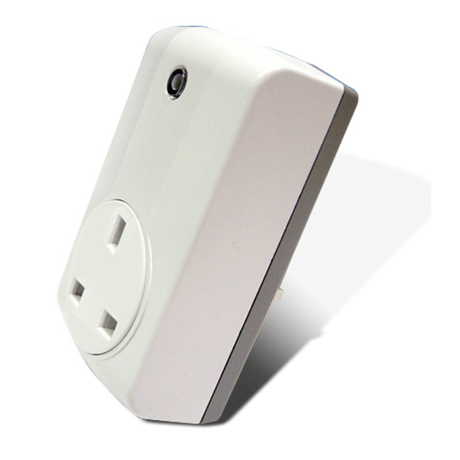

On/Off Plug
AN301-3
On/Off Power Switch
HW: 01 FW: 01.01:00.01
SD3502A-CNE3
6.82.00
0x0060 (96)
0x0004 (4)
0x000F (15)
ZC13-21080001
2021-08-28 08:12:13
N/A
Enhanced 232 Slave
Always On Slave
This AN301 plug-in ON/OFF Module is a transceiver which is a Z-WaveTM enabled device and is fully compatible with any Z-WaveTM enabled network.
1. Put the Z-WaveTM Controller into inclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-WaveTM Controller into exclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode.
1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold until LED is off (about 5 seconds). 3. Node ID is excluded. The device reverts to factory default stat
If you are connecting this unit to a Z-WaveTM Controller that utilizes the S2 security protocol, you may be asked to enter a 5 digit Device Specific Key (DSK) that is unique to each unit by your controller. This can be found in one of two places: - on th
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | Power status: Power has been applied |
