Sensative
Strips Drip 700
11 04 021
Notification Sensor
HW: 2 FW: 10.28
ZGM130
7.13.7
0x019A (410)
0x0004 (4)
0x000B (11)
ZC12-21110321
2021-11-12 12:31:49.589345
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Strips Drip is an ultra-thin multi sensor and the thinnest water leakage and temperature sensor in the world, detecting the presence of water and reporting temperature levels. The thinness, up to 20 years battery life and multiple mounting possibilities makes it very versatile.
Strips Drip is an ultra-thin multi sensor and the thinnest water leakage and temperature sensor in the world, detecting the presence of water and reporting temperature levels. The thinness, up to 20 years battery life and multiple mounting possibilities makes it very versatile. Strips Drips will detect even a few drops of water and report within seconds. Strips Drip sends an alarm signal if it detects water. Its unique design allows it to be easily placed almost anywhere, generally in most places other sensors simply can’t fit. With soaking pads integrated in the mounting plate even a few drops of water will be detected. The temperature reporting feature alerts occupants of potentially dangerous freezing or overheating conditions, keeping residents safe and informed. Strips Drip is a very reliable water leak sensor. The unique design and mounting plate make it easy to place nearly invisibly under sinks, in bathrooms, and under appliances to sense and report dangerous or potentially damaging conditions when connected to your Z-Wave™ smart home system. With a strong adhesive and mounting plate that can be screwed down, Strips Drip can be adhered securely to any surface to ensure permanent placement. Sensitivity is also adjustable and can be set per user preferences. 700 Series Drip can be used both indoors and out and the integrated custom battery gives Strips an expected lifetime of 10+ years. For you, this means no hassles needing to change or charge batteries in your Strips sensors for the lifetime of the product! Z-Wave Plus™ 700 series sensors bring a wealth of additional valued features such as longer range, low power consumption for extended battery life and SmartStart technology for instant enrolling. With SmartStart, device inclusion can be initiated automatically by simply removing the included magnet. The Z-Wave™ gateway then performs the inclusion process in the background, without the need for user interaction. 700 Series provides a direct range of 100 meters, an improvement of 60 meters over the 500 series and also includes the industry’s best S2 security, providing Strips Drip with the ultimate combination of features to securely protect your home.

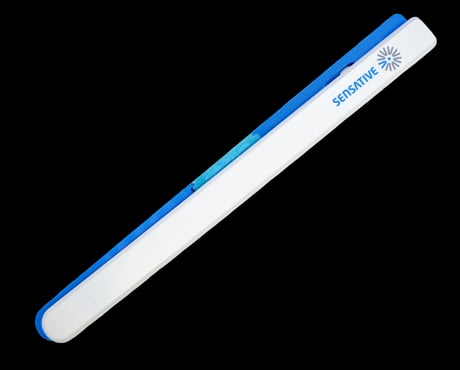

Product Image
View configuration parameters (16)
2 - LED alarm event reporting
Turn On or Off LED for specific event indications (ex. alarms).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
4 - Temperature reporting type
Turn On or Off temperature sensor value reporting (does not affect temperature alarms)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On. Reports the actual value when the temperature is changed according to parameter 26 since the last report or at least according to the reporting period set in the config parameter 25. |
| 2 | 0 | On. Reports the actual value periodically based on the config parameter 25. |
| 3 | 0 | On. The average temperature during the period is sent periodically during every wake up interval. |
5 - Temperature reporting unit
Select the temperature unitSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Celsius |
| 1 | 0 | Fahrenheit |
6 - Temperature alarms
Turn On or Off the temperature alarmSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
7 - High temperature alarm level
Select a high temperature alarm levelSize: 1 byte
Default: 40
Minimum: -20
Maximum: 80
Possible values
| From | To | Desription |
|---|---|---|
| -20 | 80 | (Degree C) |
8 - Low temperature alarm level
Select a low temperature alarm levelSize: 1 byte
Default: 5
Minimum: -20
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| -20 | 60 | (Degree C) |
12 - Leakage/Moisture alarm
Turn the Leakage Alarm to On or OffSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
13 - Leakage/Moisture alarm level
Set the trigger level at which the Leakage Alarm Notification Report will be sentSize: 1 byte
Default: 10
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | (1: Almost Dry, 100: Wet) |
14 - Leakage/Moisture reporting period
Select the number of hours between moisture reports. Report values between -100 to 100Size: 1 byte
Default: 0
Minimum: 0
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 120 | Hours (Hours between reports). Default: 0 = Off |
15 - Activate supervision
Activate Supervision command for only important alarm events or all events. *Supervised commands require a confirmation from the gateway when a notification is receivedSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | Alarm Report (*Only for alarm events e.g. Leakage alarm) |
| 2 | 0 | All Reports |
20 - Wake-Up moisture polling workaround for Fibaro G
Turn On or Off Moisture reporting during polling (applicable only for Fibaro gateway users)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
23 - Perform leakage/moisture sensor calibration
Should be performed when Drip is mounted correctly and absolutely dry to calibrate the \"zero-level\". A Multilevel Sensor Report with the Moisture value is sent after calibration is performedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device resets to this value after performing capacitance calibration and sends a report with value 0 to the gateway (as recommended by Z-Wave Specifications.) |
| 1 | 0 | Perform Calibration |
24 - Temperature offset
The offset value is used to calibrate temperature reports in the actual temperature.Size: 1 byte
Default: 0
Minimum: -100
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| -100 | 100 | [=-10.0 to +10.0 (Degree C)] |
25 - Temperature reporting period
Select the number of minutes between the temperature reports (15 minutes to 24 hours) (used for parameter 4)Size: 2 bytes
Default: 1440
Minimum: 15
Maximum: 1440
Possible values
| From | To | Desription |
|---|---|---|
| 15 | 1440 | (minutes between reports) |
26 - Temperature Delta
A new temperature report is sent when the temperature has changed more than the delta value. Input value converted to one decimal placeSize: 1 byte
Default: 20
Minimum: 5
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 100 | [=0.5 to 10.0 (Degree C)], Default: 20 (= 2.0 Degree C) |
27 - Temperature hysteresis for temperature alarms
Triggers alarm clear reports (see parameters 7 & 8). Input value converted to one decimal placeSize: 1 byte
Default: 20
Minimum: 5
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 100 | [=0.5 to 10.0 (Degree C)], Default: 20 (= 2.0 Degree C) |
Operating instructions (5)
Place the controller into pairing or exclude mode and perform the "wake up" pattern as described below. 1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away. 2. Repeat this 3 times. A final short blink will confirm that the user-command was successful.
Place the controller into exclude mode and perform the "wake up" pattern as described below. 1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away. 2. Repeat this 3 times. A final short blink will confirm that the user-command was successful.
1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away. 2. Repeat this 3 times. A final short blink will confirm that the user-command was successful.
You may need to reset Strips if your Z-Wave controller is missing or not responding. Follow the instructions for Wake Up above, but on the 3rd repetition, keep the magnet at the rounded edge for 10 seconds. A long LED signal indicates success.
Strips Drip 700 is a SmartStart enabled product and can be added to a Z-Wave network by using SmartStart. Start by scanning the Z-Wave QR Code present on the back label of the Strip, or on the DSK leaflet present in the box. Strips can be added to both secure and non-secure controllers and with or without SmartStart.
Document (1)
| Type | Name | |
|---|---|---|
| Product Manual | Strips Drip 700 manual.pdf |
Features (4)
| Type | Value(s) |
|---|
Supported notifications (6)
| Group | Type |
|---|---|
| Heat Alarm |
|
| Water Alarm |
|
| Home Security | (Refer to parameters): State idle |
Supported sensors (2)
| Sensor type |
|---|
| Air Temperature |
| Moisture |
