Philio

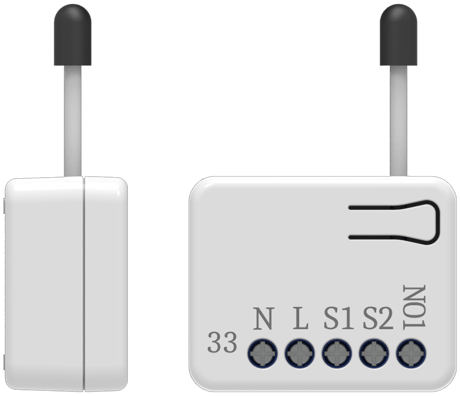

In Wall Switch (Mini)
PAN33-JP
Binary Switch DT
HW: 01 FW: 02.00
ZGM130S037HGN2 / ZGM130S037HGN1
7.15.1
0x013C (316)
N/A
0x0001 (1)
ZC14-21120035
2021-12-08 09:26:30
N/A
Enhanced 232 Slave
Always On Slave
This product can be operated in any Z-WaveTM network with other Z-WaveTM certified devices from other manufacturers. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Mini size design let the module can easily hide itself into the wall box and that will be good for the house decoration.
1.Have Z-Wave Controller entered inclusion mode. 2.Pressing Include button of PAN33 three times within 2 seconds will enter inclusion mode.
1.Have Z-Wave Controller entered exclusion mode. 2.Pressing Include button of PAN33 three times within 2 seconds will enter exclusion mode. 3.Node ID has been excluded.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1.Pressing Include button of PAN33 three times within 2 seconds will enter inclusion mode. 2.Within 1 second, press Include button of PAN33 again for 5 seconds. 3.IDs are excluded.
1. To initiate the SmartSart process, please type in the first five digits of DSK string or scan the QR code. The QR Code can be found on PAN33 or in the box. Ex: DSK: 18112-24021-58001-62259-57092- 27453-08187-47408 2. PAN33 is supported with SmartStart, it can be added to Z-Wave™ network by scanning the Z-Wave™ QR code on the product. 3. Without further actions, PAN33 will be automatically included in a certified Z-Wave™ Controller with SmartStart inclusion ability in 10 minutes after it turned on.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management |
|
