Nice
Roll-Control
FGR-223
Window Covering - Endpoint Aware
HW: 3 FW: 5.01:05.01
ZM5101
6.81.01
0x010F (271)
0x0303 (771)
0x1000 (4096)
ZC10-22047078
2022-03-31 10:48:29.710445
N/A
Enhanced 232 Slave
Always On Slave
FIBARO Roller Shutter 3 is a device designed to control roller blinds, awnings, venetian blinds, gates and other single phase, Ac powered devices.
FIBARO Roller Shutter 3 is a device designed to control roller blinds, awnings, venetian blinds, gates and other single phase, Ac powered devices. Roller Shutter 3 allows precise positioning of roller blinds or venetian blind lamellas. The device is equipped with power and energy monitoring. It allows to control connected devices either via the Z-Wave™ network or via a switch connected directly to it.

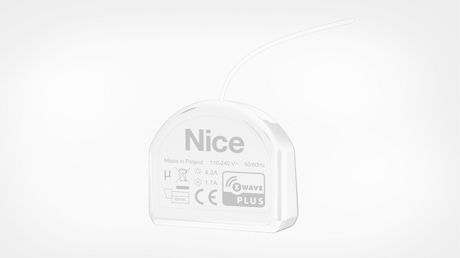

Product Image
1 - Switch type
This parameter defines as what type the device should treat the switch connected to the S1 and S2 terminals. This parameter is not relevant in gate operating modes (parameter 151 set to 3 or 4). In this case switch always works as a momentary and has to be connected to S1 terminal.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Switch type |
2 - Inputs orientation
This parameter allows reversing the operation of switches connected to S1 and S2 without changing the wiring.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Inputs orientation |
3 - Outputs orientation
This parameter allows reversing the operation of Q1 and Q2 without changing the wiring (in case of invalid motor connection) to ensure proper operation.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Outputs orientation |
4 - Alarm configuration - 1st slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Alarm configuration - 1st slot |
5 - Alarm configuration - 2nd slot (Water)
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Alarm configuration - 2nd slot (Water) |
6 - Alarm configuration - 3rd slot (Smoke)
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Alarm configuration - 3rd slot (Smoke) |
7 - Alarm configuration - 4th slot (CO)
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Alarm configuration - 4th slot (CO) |
8 - Alarm configuration - 5th slot (Heat)
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Alarm configuration - 5th slot (Heat) |
9 - S1 switch - scenes sent
This parameter determines which actions result in sending scene IDs assigned to them.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 8 | S1 switch - scenes sent |
10 - S2 switch - scenes sent
This parameter determines which actions result in sending scene IDs assigned to them.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 8 | S2 switch - scenes sent |
11 - Measuring power consumed by the device itself
This parameter determines whether the power metering should include the amount of active power consumed by the device itself.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Measuring power consumed |
12 - Power reports - on change
This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller. For loads under 50W, the parameter is not relevant and reports are sent every 5W change. Power report are sent no often then every 30 seconds.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1500
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1500 | Power reports |
13 - Power reports - periodic
This parameter determines in what time intervals the periodic power reports are sent to the main controller. Periodic reports do not depend on power change (parameter 61).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 32400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32400 | Power reports |
14 - Energy reports - on change
This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 500
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 500 | Energy reports |
15 - Energy reports - periodic
This parameter determines in what time intervals the periodic energy reports are sent to the main controller. Periodic reports do not depend on energy change (parameter 65)Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 32400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32400 | Energy reports |
16 - Force calibration
By setting this parameter to 2 the device enters the calibration mode. The parameter relevant only if the device is set to work in positioning mode (parameter 151 set to 1, 2 or 4).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Force calibration |
17 - Operating mode
This parameter allows adjusting operation according to the connected device.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Operating mode |
18 - Venetian blind - time of full turn of the slats
For Venetian blinds (parameter 151 set to 2) the parameter determines time of full turn cycle of the slats. For gates (parameter 151 set to 3 or 4) the parameter determines time after which open gate will start closing automatically (if set to 0, gate will not close). The parameter is irrelevant for other modes.Size: 4 bytes
Default: 150
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Venetian blind |
19 - Set slats back to previous position
For Venetian blinds (parameter 151 set to 2) the parameter determines slats positioning in various situations. The parameter is irrelevant for other modes.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Set slats back to previous position |
20 - Delay motor stop after reaching end switch
For blinds (parameter 151 set to 1, 2, 5 or 6) the parameter determines the time after which the motor will be stopped after end switch contacts are closed. Parameter allows to calibrate devices with soft start by setting soft start time. For gates (parameter 151 set to 3 or 4) the parameter determines time after which the gate will start closing automatically if S2 contacts are opened (if set to 0, gate will not close).Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Delay motor stop after reaching end switch |
21 - Motor operation detection
Power threshold to be interpreted as reaching a limit switch.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Motor operation detection |
22 - Time of up movement
This parameter determines the time needed for roller blinds to reach the top. For modes with positioning value is set automatically during calibration, otherwise it must be set manuallySize: 4 bytes
Default: 6000
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Time of up movement |
23 - Time of down movement
This parameter determines time needed for roller blinds to reach the bottom. For modes with positioning value is set automatically during calibration, otherwise it must be set manuallySize: 4 bytes
Default: 6000
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Time of down movement |
4.1 - Using the manual method To add the device to the Z-Wave network manually: 1. Power the device. 2. Identify the S1 switch. 3. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 4. Quickly, triple click the S1 switch. 5. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 6. Wait for the adding process to end. 7. Successful adding will be confirmed by the Z-Wave controller’s message. 4.2 - Using the SmartStart method 1. To add the device to the Z-Wave network using SmartStart: 2. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 3. Scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 4. Power the device (turn on the mains voltage). 5. LED will start blinking yellow, wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.
To remove the device from the Z-Wave network: 1. Make sure the device is powered. 2. Identify the S1 switch. 3. Set the main controller in remove mode (see the controller’s manual). 4. Quickly, triple click the S1 switch. 5. Wait for the removing process to end. 6. Successful removing will be confirmed by the Z-Wave controller’s message.
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Note. Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described in the “Adding the device” section. Resetting the device to factory defaults: 1. Switch off the mains voltage (disable the fuse). 2. Remove the device from the wall switch box. 3. Switch on the mains voltage. 4. Press and hold the B-button to enter the menu. 5. Wait for the LED indicator to glow yellow. 6. Quickly release and click the B-button again. 7. After few seconds the device will be restarted, which is signalled with the red LED indicator colour
4.1 - Using the manual method To add the device to the Z-Wave network manually: 1. Power the device. 2. Identify the S1 switch. 3. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 4. Quickly, triple click the S1 switch. 5. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 6. Wait for the adding process to end. 7. Successful adding will be confirmed by the Z-Wave controller’s message. 4.2 - Using the SmartStart method 1. To add the device to the Z-Wave network using SmartStart: 2. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 3. Scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 4. Power the device (turn on the mains voltage). 5. LED will start blinking yellow, wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.
| Group | Type |
|---|---|
| Power Management | Over-current status: Over-current detected |
| System | HW status: System hardware failure (manufacturer proprietary failure code provided) |
| Group | Type |
|---|---|
| Power Management | Over-current status: Over-current detected |
| System | HW status: System hardware failure (manufacturer proprietary failure code provided) |
| Meter type |
|---|
| Electric Meter Consumption |
