Nice
On/Off-Control
FGS-223
On/Off Power Switch
HW: 3 FW: 3.04
ZM5101
6.51.07
0x010F (271)
0x0203 (515)
0x1000 (4096)
ZC10-22047084
2022-04-01 11:08:38.640574
N/A
Enhanced 232 Slave
Always On Slave
On/Off-Control is designed to be installed in standard wall switch boxes or anywhere else where it is necessary to control electric devices.
On/Off-Control is designed to be installed in standard wall switch boxes or anywhere else where it is necessary to control electric devices. On/Off-Control allows to control connected devices either via the Z-Wave Plus™ network or via a switch connected directly to it and is equipped with active power and energy consumption metering functionality

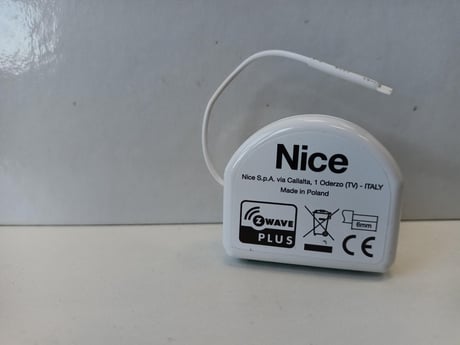

Product Image
1 - Restore state after power failure
This parameter determines if the device will return to state prior to the power failure after power is restored.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Restore state after power failure |
2 - First channel - operating mode
This parameter allows to choose operating for the 1st channel controlled by the S1 switch.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | First channel - operating mode |
3 - First channel - reaction to switch for delay/auto ON/OFF modes
This parameter determines how the device in timed mode reacts to pushing the switch connected to the S1 terminal.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | reaction to switch for delay/auto ON/OFF modes |
4 - First channel - time parameter for delay/auto ON/OFF modes
This parameter allows to set time parameter used in timed modes.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32000 | time parameter for delay/auto ON/OFF modes |
5 - First channel - pulse time for flashing mode
This parameter allows to set time of switching to opposite state in flashing modeSize: 2 bytes
Default: 5
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32000 | pulse time for flashing mode |
6 - Second channel - operating mode
This parameter allows to choose operating for the 1st channel controlled by the S2 switch.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | Second channel - operating mode |
7 - Second channel - reaction to switch for delay/auto ON/OFF modes
This parameter determines how the device in timed mode reacts to pushing the switch connected to the S2 terminal.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Second channel - reaction to switch for delay/auto ON/OFF modes |
8 - Second channel - time parameter for delay/auto ON/OFF modes
This parameter allows to set time parameter used in timed modes.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32000 | Second channel - time parameter for delay/auto ON/OFF modes |
9 - Second channel - pulse time for flashing mode
This parameter allows to set time of switching to opposite state in flashing mode.Size: 2 bytes
Default: 5
Minimum: 1
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32000 | Second channel - pulse time for flashing mode |
10 - Switch type
This parameter defines as what type the device should treat the switch connected to the S1 and S2 terminals.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Switch type |
11 - Flashing mode - reports
This parameter allows to define if the device sends reports during the flashing modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Flashing mode - reports |
12 - Associations in Z-Wave network security mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. This parameter does not apply to 1st „Lifeline” group. Parameter 27 values may be combined, e.g. 1+2=3 means that 2nd and 3rd groups are sent as secure.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 15 | Associations in Z-Wave network security mode |
13 - S1 switch - scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Parameter 28 values may be combined, e.g. 1+2=3 means that scenes for single and double click are sent.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 15 | S1 switch - scenes sent |
14 - S2 switch - scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Parameter 29 values may be combined, e.g. 1+2=3 means that scenes for single and double click are sent.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 15 | S2 switch - scenes sent |
15 - S1 switch - associations sent to 2nd and 3rd association groups
This parameter determines which actions are ignored when sending commands to devices associated in 2nd and 3rd association group. All actions are active by default. Parameter 30 values may be combined, e.g. 1+2=3 means that associations for turning ON and OFF are not sent. *Hold and release is inactive when parameter 20 is set to 1 or 2. **Double click is inactive when parameter 20 is set to 1.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 8 | S1 switch - associations sent to 2nd and 3rd association groups |
16 - S1 switch - Switch ON value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch ON command to devices associated in 2nd and 3rd association group.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | S1 switch - Switch ON value sent to 2nd and 3rd association groups |
17 - S1 switch - Switch OFF value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | S1 switch - Switch OFF value sent to 2nd and 3rd association groups |
18 - S1 switch - Double Click value sent to 2nd and 3rd association groups
This parameter defines value sent with Double Click command to devices associated in 2nd and 3rd association group.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | S1 switch - Double Click value sent to 2nd and 3rd association groups |
19 - S1 switch - Double Click value sent to 2nd and 3rd association groups
This parameter defines value sent with Double Click command to devices associated in 2nd and 3rd association group.Size: 2 bytes
Default: 99
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | S1 switch - Double Click value sent to 2nd and 3rd association groups |
20 - S2 switch - associations sent to 4th and 5th association groups
his parameter determines which actions result in sending commands to devices associated in 4th and 5th association group. All actions are active by default. Parameter 35 values may be combined, e.g. 1+2=3 means that associations for turning ON and OFF are not sent. *Hold and release is inactive when parameter 20 is set to 1 or 2. **Double click is inactive when parameter 20 is set to 1Size: 1 byte
Default: 0
Minimum: 0
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 8 | S2 switch - associations sent to 4th and 5th association groups |
21 - S2 switch - Switch ON value sent to 4th and 5th association groups
This parameter defines value sent with Switch ON command to devices associated in 4th and 5th association group.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | S2 switch - Switch ON value sent to 4th and 5th association groups |
22 - S2 switch - Switch OFF value sent to 4th and 5th association groups
This parameter defines value sent with Switch OFF command to devices associated in 4th and 5th association group.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | S2 switch - Switch OFF value sent to 4th and 5th association groups |
23 - S2 switch - Double Click value sent to 4th and 5th association groups
This parameter defines value sent with Double Click command to devices associated in 4th and 5th association group.Size: 2 bytes
Default: 99
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | S2 switch - Double Click value sent to 4th and 5th association groups |
24 - Reaction to General Alarm
This parameter determines how the device will react to General Alarm frame.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Reaction to General Alarm |
25 - Reaction to Flood Alarm
This parameter determines how the device will react to Flood Alarm frame.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Reaction to Flood Alarm |
26 - Reaction to CO/CO2/Smoke Alarm
This parameter determines how the device will react to CO, CO2 or Smoke frame.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Reaction to CO/CO2/Smoke Alarm |
27 - Reaction to Heat Alarm
This parameter determines how the device will react to Heat Alarm frame.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Reaction to Heat Alarm |
28 - Flashing alarm duration
This parameter allows to set duration of flashing alarm mode.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32000 | Flashing alarm duration |
29 - First channel - power reports
This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller.Size: 1 byte
Default: 20
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | First channel - power reports |
30 - First channel - minimal time between power reports
This parameter determines minimum time that has to elapse before sending new power report to the main controllerSize: 1 byte
Default: 10
Minimum: 0
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 120 | First channel - minimal time between power reports |
31 - First channel - energy reports
This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32000 | First channel - energy reports |
32 - Second channel - power reports
This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller.Size: 1 byte
Default: 20
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Second channel - power reports |
33 - Second channel - minimal time between power reports
This parameter determines minimum time that has to elapse before sending new power report to the main controller.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 120 | Second channel - minimal time between power reports |
34 - Second channel - energy reports
This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32000 | Second channel - energy reports |
35 - Periodic power reports
This parameter determines in what time interval the periodic power reports are sent to the main controllerSize: 2 bytes
Default: 3600
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32000 | Periodic power reports |
36 - Periodic energy reports
This parameter determines in what time interval the periodic energy reports are sent to the main controller.Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 32000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3600 | Periodic energy reports |
37 - Measuring energy consumed by the device itself
This parameter determines whether energy metering should include the amount of energy consumed by the device itself. Results are being added to energy reports for first endpoint.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Measuring energy consumed by the device itself |
To add the device to the Z-Wave network manually: 1. Place On/Off-Control within the direct range of your Z-Wave controller. 2. Identify the S1 switch. 3. Set the main controller in (security/non-security) add mode (see the controller’s manual). 4. Quickly, three times press the S1 switch. 5. Wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.
To remove the device from the Z-Wave network: 1. Place On/Off-Control within the direct range of your Z-Wave controller. 2. Identify the S1 switch. 3. Set the main controller in remove mode (see the controller’s manual). 4. Quickly, three times press the S1 switch. 5. Wait for the removing process to end. 6. Successful removing will be confirmed by the Z-Wave controller’s message.
Resetting On/Off-Control 1. Switch off the mains voltage (disable the fuse). 2. Remove On/Off-Control from the wall switch box. 3. Switch on the mains voltage. 4. Press and hold the B-button to enter the menu. 5. Wait for the visual LED indicator to glow yellow. 6. Quickly release and click the B-button again. 7. After few seconds the device will be restarted, which is signalled with the red LED indicator colour
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected |
| Power Management | Over-current status: Over-current detected |
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected |
| Power Management | Over-current status: Over-current detected |
| Meter type |
|---|
| Electric Meter Consumption |
