Nice
Door/Window-Control
FGDW-002
Notification Sensor
HW: 2 FW: 3.02
ZM5101
6.51.09
0x010F (271)
0x0702 (1794)
0x1000 (4096)
ZC10-22037075
2022-03-30 10:13:33.503459
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Door/Window-Control is a wireless, battery powered Hall effect contact sensor, compatible with the Z-Wave Plus™ standard. Changing the device’s status will automatically send signal to the Z-Wave™ controller and associated devices.
Door/Window-Control is a wireless, battery powered Hall effect contact sensor, compatible with the Z-Wave Plus™ standard. Changing the device’s status will automatically send signal to the Z-Wave™ controller and associated devices. Sensor can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor’s body and the magnet.In addition, Door/Window-Control is equipped with a built-in temperature sensor.

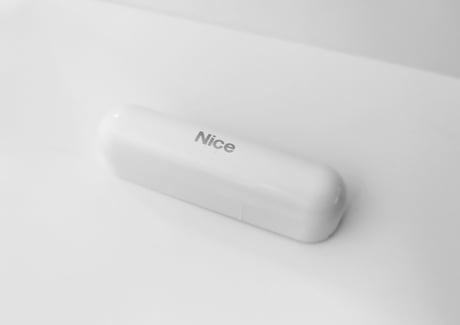

Product Image
1 - Door/window state
This parameter allows to set in what state is door/window when the magnet is close to the sensor.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Door/window state |
2 - Visual LED indications
This parameter defines events indicated by the visual LED indicator. Disabling events might extend battery life.Size: 1 byte
Default: 6
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Visual LED indications |
3 - Associations in Z-Wave network Security Mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network Security Mode. It does not apply to 1st group “Lifeline”Size: 1 byte
Default: 3
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Associations in Z-Wave network Security Mode |
4 - 2nd association group triggers
Parameter defines events which result in sending on/off commands to devices added to the 2nd association group. These commands are sent alternately to switch the devices on and off.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | 2nd association group triggers |
5 - Association for opening - value sent
Value sent to devices in 2nd association group when opening is detected The value of 0 turns OFF the device, 255 turns it ON. In case of associating devices allowing smooth control, values 1-99 allow to set an associated device to a specified level.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Association for opening - value sent |
6 - Association for closing - value sent
Value sent to devices in 2nd association group when closing is detected The value of 0 turns OFF the device, 255 turns it ON. In case of associating devices allowing smooth control, values 1-99 allow to set an associated device to a specified level.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Association for closing - value sent |
7 - Association for opening - time delay
Time that must elapse from opening to send the command frame to to devices in 2nd association group.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32400 | Association for opening - time delay |
8 - Association for closing - time delay
Time that must elapse from closing to send the command frame to devices in 2nd association group.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32400 | Association for closing - time delay |
9 - Tamper - alarm cancellation delay
Time period after which a tamper alarm will be cancelled.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 32400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32400 | Tamper - alarm cancellation delay |
10 - Tamper - reporting alarm cancellation
Reporting cancellation of tamper alarm to the controller and 3rd association group.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Tamper - reporting alarm cancellation |
11 - Interval of temperature measurements
This parameter defines how often the temperature will be measured. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten.Size: 2 bytes
Default: 300
Minimum: 0
Maximum: 32400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32400 | Interval of temperature measurements |
12 - Temperature reports threshold
This parameter defines the change of temperature in comparison with last reported, resulting in temperature report being sent to the main controller.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 300
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 300 | Temperature reports threshold |
13 - Interval of temperature reports
This parameter determines how often the temperature reports will be sent to the main controller (regardless of parameters 50 and 51).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32400 | Interval of temperature reports |
14 - Temperature offset
The value to be added to the actual temperature, measured by the sensor (temperature compensation).Size: 2 bytes
Default: 0
Minimum: -1000
Maximum: 1000
Possible values
| From | To | Desription |
|---|---|---|
| -1000 | 1000 | Temperature offset |
15 - Temperature alarm reports
Temperature alarms reported to the Z-Wave controller. Thresholds are set in parameters 55 and 56.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Temperature alarm reports |
16 - High temperature alarm threshold
If temperature is higher than set value, overheat notification will be sent and high temperature alarm will be triggered (if activated). Value set in parameter 55 must be higher than value set in parameter 56.Size: 2 bytes
Default: 350
Minimum: 1
Maximum: 600
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 600 | High temperature alarm threshold |
17 - Low temperature alarm threshold
If temperature is lower than the set value, underheat notification will be sent and low temperature alarm will be triggered (if activated).Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 599
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 599 | Low temperature alarm threshold |
To add the device to the Z-Wave network manually: 1. Place Door/Window-Control within the direct range of your Z-Wave controller. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, three times press one of the TMP buttons (while the other button is pressed). 4. Wait for the adding process to end. 5. Successful adding will be confirmed by the Z-Wave controller’s message.
To remove the device from the Z-Wave network: 1. Place Door/Window-Control within the direct range of your Z-Wave controller. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, three times press one of the TMP buttons (while the other button is pressed). 4. Wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message.
Door/Window-Control needs to be woken up to receive information about the new configuration from the controller, like parameters and associations. To wake up the sensor manually, click one of the TMP buttons (while the other button is pressed).
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device: 1. Open the cover (Opening the casing may result in triggering an alarm. To avoid it, remove the associations for the 3rd group). 2. Remove the battery. 3. Install the battery while holding both TMP buttons. 4. Visual LED indicator will be flashing slowly for 5 seconds - keep holding the buttons. 5. Release one button when the LED indicator starts flashing quickly. 6. Click released button once to confirm launching of reset procedure. 7. Wait a few seconds until a long blink of the LED indicator. Do not remove the battery. 8. Visual LED indicator will blink 5 times quickly to confirm the reset.
| Group | Type |
|---|---|
| Heat Alarm |
|
| Access Control |
|
| Home Security | Cover status: Tampering, product cover removed |
| Power Management | Battery maintenance status: Replace battery now |
| Group | Type |
|---|---|
| Heat Alarm |
|
| Access Control |
|
| Home Security | Cover status: Tampering, product cover removed |
| Power Management | Battery maintenance status: Replace battery now |
| Sensor type |
|---|
| Air Temperature |
