Nice
Push-Control
FGPB-101
Wall Controller
HW: 1 FW: 3.02
ZM5101
6.51.09
0x010F (271)
0x0F01 (3841)
0x1000 (4096)
ZC10-22047085
2022-04-08 10:21:19.246135
N/A
Enhanced 232 Slave
Portable Slave
Push-Control is a compact, battery-powered, Z-Wave Plus™ compatible device. It allows you to control devices through the Z-Wave™ network and run various scenes defined in Yubii smart home system.
Push-Control is a compact, battery-powered, Z-Wave Plus™ compatible device. It allows you to control devices through the Z-Wave™ network and run various scenes defined in Yubii smart home system. Different actions may be triggered with one to five clicks or by holding the button down. In panic mode, each press of the button results in triggering the alarm defined in the Z-Wave controller. Due to its small design and wireless communication, Push-Control can be conveniently mounted on any surface and in any position or location at home, e.g. beside the bed or under the desk.

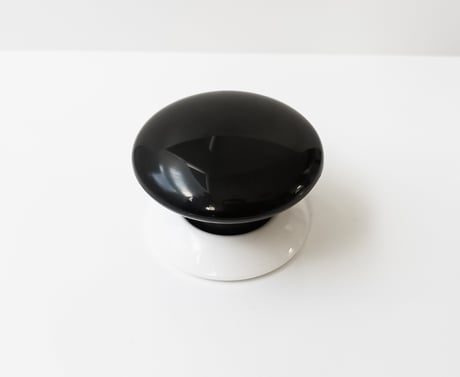

Product Image
1 - Scenes sent to the controller
This parameter determines which actions result in sending scene IDs and attributes assigned to them. Values of parameter 1 may be combined, e.g. 1+2=3 means that scenes will be sent after pressing the button once or twice.Size: 1 byte
Default: 127
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No scenes sent |
| 1 | 1 | Key Pressed 1 time |
| 2 | 2 | Key Pressed 2 times |
| 4 | 4 | Key Pressed 3 times |
| 8 | 8 | Key Pressed 4 times |
| 16 | 16 | Key Pressed 5 times |
| 32 | 32 | Key Held Down |
| 64 | 64 | Key Released |
| 127 | 127 | All scenes sent |
3 - Associations in Z-Wave network Security Mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network Security Mode. It does not apply to 1st „Lifeline” group. Values of parameter 3 may be combined, e.g. 1+2=3 means that 2nd & 3rd group are sent as secure.Size: 1 byte
Default: 7
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | none of the groups sent as secure |
| 1 | 1 | 2nd group sent as secure |
| 2 | 2 | 3rd group sent as secure |
| 4 | 4 | 4th group sent as secure |
| 7 | 7 | all groups sent as secure |
10 - Key Pressed 1 time – command sent to 2nd association group
This parameter defines commands sent to devices associated in 2nd association group after a single click.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no action |
| 1 | 1 | SWITCH ON |
| 2 | 2 | SWITCH OFF |
| 3 | 3 | SWITCH ON/OFF – alternately |
11 - Key Pressed 1 time – value of SWITCH ON command sent to 2nd association group
This parameter defines value of SWITCH ON command sent to devices in 2nd association group after a single click.Size: 2 bytes
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | sent value |
12 - Key Pressed 2 times – command sent to 2nd association group
This parameter defines commands sent to devices associated in 2nd association group after a double click.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no action |
| 1 | 1 | SWITCH ON |
| 2 | 2 | SWITCH OFF |
| 3 | 3 | SWITCH ON/OFF – alternately |
13 - Key Pressed 2 times – value of SWITCH ON command sent to 2nd association group
This parameter defines value of SWITCH ON command sent to devices in 2nd association group after a double click.Size: 2 bytes
Default: 99
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | sent value |
14 - Key Pressed 3 times – command sent to 2nd association group
This parameter defines commands sent to devices associated in 2nd association group after a triple click.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no action |
| 1 | 1 | SWITCH ON |
| 2 | 2 | SWITCH OFF |
| 3 | 3 | SWITCH ON/OFF – alternately |
15 - Key Pressed 3 times – value of SWITCH ON command sent to 2nd association group
This parameter defines value of SWITCH ON command sent to devices in 2nd association group after a triple click.Size: 2 bytes
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | sent value |
20 - Key Pressed 1 time – command sent to 3rd association group
This parameter defines commands sent to devices associated in 3rd association group after a single click.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no action |
| 1 | 1 | SWITCH ON |
| 2 | 2 | SWITCH OFF |
| 3 | 3 | SWITCH ON/OFF – alternately |
21 - Key Pressed 1 time – value of SWITCH ON command sent to 3rd association group
This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a single click.Size: 2 bytes
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | sent value |
22 - Key Pressed 2 times – command sent to 3rd association group
This parameter defines commands sent to devices associated in 3rd association group after a double click.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no action |
| 1 | 1 | SWITCH ON |
| 2 | 2 | SWITCH OFF |
| 3 | 3 | SWITCH ON/OFF – alternately |
23 - Key Pressed 2 times – value of SWITCH ON command sent to 3rd association group
This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a double click.Size: 2 bytes
Default: 99
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | sent value |
24 - Key Pressed 3 times – command sent to 3rd association group
This parameter defines commands sent to devices associated in 3rd association group after a triple click.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no action |
| 1 | 1 | SWITCH ON |
| 2 | 2 | SWITCH OFF |
| 3 | 3 | SWITCH ON/OFF – alternately |
25 - Key Pressed 3 times – value of SWITCH ON command sent to 3rd association group
This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a triple click.Size: 2 bytes
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | sent value |
29 - Key Held Down – command sent to 3rd association group
This parameter defines commands sent to devices associated in 3rd association group after holding the button down.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no action |
| 1 | 1 | START LEVEL CHANGE UP (brightening) |
| 2 | 2 | START LEVEL CHANGE DOWN (dimming) |
| 3 | 3 | START LEVEL CHANGE UP/DOWN (brightening/ dimming) – alternately |
30 - Alarm frame triggers
Parameter determines which actions result in sending alarm frames to 4th association group. Values of parameter 30 may be combined, e.g. 1+2=3 means that alarm frames will be sent after pressing the button once or twice.Size: 1 byte
Default: 127
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No alarms sent |
| 1 | 1 | Key Pressed 1 time |
| 2 | 2 | Key Pressed 2 time |
| 4 | 4 | Key Pressed 3 time |
| 8 | 8 | Key Pressed 4 time |
| 16 | 16 | Key Pressed 5 time |
| 32 | 32 | Key Held Down |
| 64 | 64 | Key Released |
| 127 | 127 | All actions |
To add the device to the Z-Wave network manually: 1. Place Push-Control within the direct range of your Z-Wave controller. 2. Set the main controller in (Security/non-Security) add mode (see the controller’s manual). 3. Click Push-Control at least six times. 4. Wait for the adding process to end. 5. Successful adding will be confirmed by the Z-Wave controller’s message.
To remove the device from the Z-Wave network: 1. Place Push-Control within the direct range of your Z-Wave controller. 2. Set the main controller in remove mode (see the controller’s manual). 3. Click Push-Control at least six times. 4. Wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message.
6.2 - Waking up the device Push-Control needs to be woken up to receive information about the new configuration from the controller, like parameters and associations. Click Push-Control 4 times to wake it up.
6.4 - Reset procedure of Push-Control Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device: 1. Click Push-Control exactly five times. 2. Press and hold Push-Control for at least 5 seconds.
| Group | Type |
|---|---|
| Home Security | Sensor status: Intrusion |
