Zooz
Double Relay
ZEN52
Binary Switch DT
HW: 01 FW: 01.07
ZGM130S037HGN2 / ZGM130S037HGN1
7.15.4
0x027A (634)
N/A
0x0104 (260)
ZC14-22040095
2022-04-04 09:25:25
N/A
Enhanced 232 Slave
Always On Slave

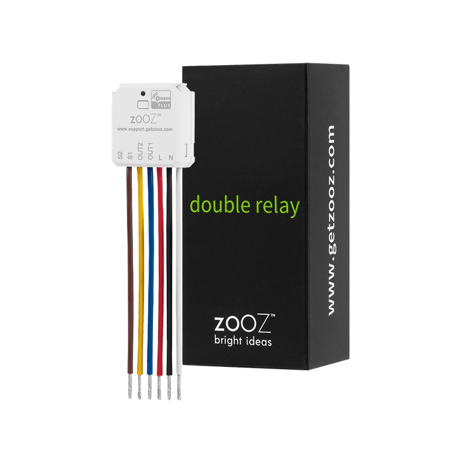

Use the Double Relay to control 2 120 V lights or electrical devices under 5 A individually via Z-Wave™ or from your wall switches.
2 - Led indicator load status
Led indicator load statusSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Auto turn-off timer Relay 1
Auto turn-off timer Relay 1Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Auto turn-on timer Relay 1
Auto turn-on timer Relay 1Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Auto turn-off timer Relay 2
Auto turn-off timer Relay 2Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Auto turn-on timer Relay 2
Auto turn-on timer Relay 2Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - Timer for relay 1 seconds or minutes
Timer for relay 1 seconds or minutesSize: 1 byte
Default: 1
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Timer for relay 2 seconds or minutes
Timer for relay 2 seconds or minutesSize: 1 byte
Default: 1
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - Restores state after power failure, relay 1
Restores state after power failure, relay 1Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - Restores state after power failure, relay 2
Restores state after power failure, relay 2Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
16 - Enable or Disable Scene
Enable or Disable SceneSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - Enable or Disable Output control relay 1
Enable or Disable Output control relay 1Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - Enable or Disable Output control relay 2
Enable or Disable Output control relay 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - External switch type input 1
External switch type input 1Size: 1 byte
Default: 2
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
21 - External switch type input 2
External switch type input 2Size: 1 byte
Default: 2
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
22 - Impulse time for par 20=3
Impulse time for par 20=3Size: 1 byte
Default: 10
Minimum: 2
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
23 - Impulse time for par 21=3
Impulse time for par 21=3Size: 1 byte
Default: 10
Minimum: 2
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
24 - Association reports
Association reportsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
25 - Relay 1 type behavior
Relay 1 type behaviorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
26 - Relay 2 type behavior
Relay 2 type behaviorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
1. Initiate inclusion (pairing) in the app (or web interface). Not sure how? get in touch: www.support.getzooz.com 2. Finalize inclusion at the relay. TAP THE Z-WAVE BUTTON 3 TIMES QUICKLY The LED indicator will blink green to signal communication.
1. Bring your Z-Wave gateway (hub) close to the relay if possible 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]) 3. Click the Z-Wave button on the relay 3 times quickly (the LED indicator will start blinking green)
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the relay, click the Z-Wave button twice and hold it for 15 seconds (hold on the SECOND press). The LED indicator will flash during the process and turn red for 3 seconds.
The SmartStart QRCode is located on the back of the relay, next to the Z-Wave Plus logo.
