Zooz
Zooz 4-in-1 Sensor 700 Series
ZSE40EU-700
Notification Sensor
HW: 2 FW: 32.32
ZGM130
7.13.6
0x027A (634)
0x2021 (8225)
0x2101 (8449)
ZC12-22040336
2022-04-07 11:55:21.802104
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The new 700 Series of the best selling Zooz 4-in-1 Sensor.
PRODUCT FEATURES: - 4 different sensors in 1 smart device: motion, light, temperature, and humidity - Customize your sensor with adjustable motion and reporting settings - NEW 700 Series Z-Wave™ Chip - SmartStart and S2 Security - Built-in tamper protection SPECIFICATIONS: - Power: 1 CR123A battery (included) - Wireless Range: Up to 300 feet line of sight - Operating Temperature: 5° - 104°F - Weight: 2.0 oz - Dimensions: 2.25" x 2.25" x 1" - Installation: Indoor Use Only

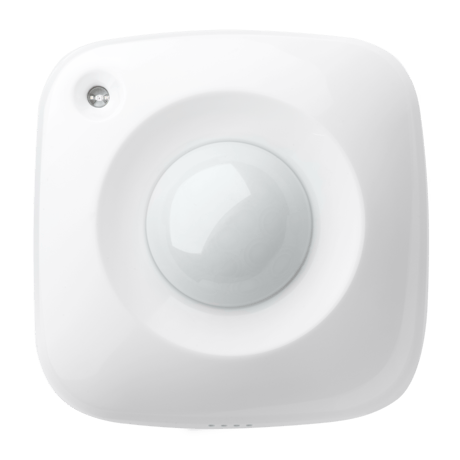

Product Image
1 - Temperature Unit
Use this parameter to switch from Fahrenheit to Celsius scale.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Celsius |
| 1 | 1 | Fahrenheit |
2 - Temperature Reporting Threshold
Use it to set temperature change to be reported by the sensor.Size: 1 byte
Default: 30
Minimum: 1
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | degrees |
3 - Humidity Reporting Threshold
Use it to set humidity percentage change to be reported by the sensor.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | percent |
4 - Light Reporting Threshold
Reports light level in percentage (1-100).Size: 1 byte
Default: 25
Minimum: 5
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 50 | percent |
5 - Motion Clear Time
Use it to set trigger interval - the time when motion is reported again after initial trigger.Size: 1 byte
Default: 3
Minimum: 1
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | seconds |
6 - Motion Sensitivity Level
Use it to adjust PIR sensor sensitivity.Size: 1 byte
Default: 3
Minimum: 1
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 7 | where 1 = very high sensitivity and 7 = very low sensitivity. |
7 - LED Indicator Mode
Use it to choose between LED indicator modes.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | LED indicator is turned off (no visual notifications). |
| 2 | 2 | temperature and motion indicated with flashing light. Flashes every 3 minutes for temperature. |
| 3 | 3 | no indication for temperature, motion indicated with red flashing light. |
8 - Retry Count
Set 0~10 Retry Count, default:3Size: 1 byte
Default: 3
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | retry count |
Initiate inclusion (pairing) in the app (or web interface). Click the Z-Wave button once. The LED indicator will blink red to signal communication and green once the PIN is entered, then turn off to confirm inclusion.
1. Bring the sensor within direct range of your Z-Wave gateway (hub). 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]). 3. Click the Z-Wave button with a paperclip once (it will blink green). 4. Your hub will confirm exclusion and the device will disappear from your controller's device list.
Press and release the Z-Wave button once to wake the device up. The LED indicator will flash once (blue or orange).
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, remove the back cover to trigger tamper switch. Press and release the Z-Wave button using a paperclip 10 TIMES quickly (within 10 seconds).
Scan the QR code or enter the PIN located under the back cover if your hub supports SmartStart.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security |
|
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Humidity |
