WiDom

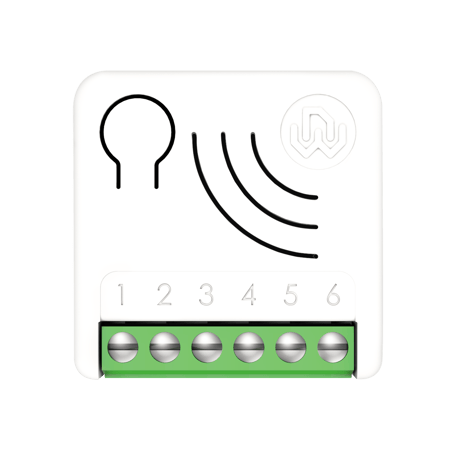

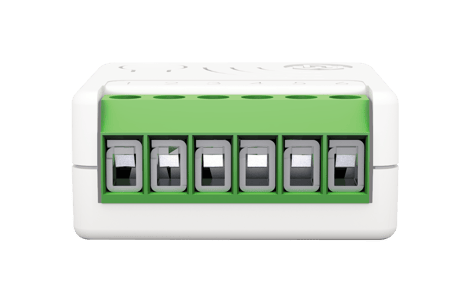

Smart Dry Contact Switch 7
DRY700
Binary Switch DT
HW: 01 FW: 07.00
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0149 (329)
N/A
0x0004 (4)
ZC14-22040098
2022-04-12 14:22:40
N/A
Enhanced 232 Slave
Always On Slave
Smart Dry Contact Switch 7 can turn ON and OFF equipment’s with an independent power supply, such as solenoid valves (e.g. gas, water and irrigation), power operated valves etc.


View configuration parameters (16)
1 - IN_TYPE
Define the input typeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no switch input |
| 1 | 1 | momentary switch (button) |
| 2 | 2 | toggle switch |
10 - IN_TOGGLE
Define which event on the input 1 toggle output.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 1 | 1 click |
| 2 | 2 | 2 clicks |
| 4 | 4 | 3 clicks |
| 8 | 8 | Hold down |
| 16 | 16 | Up |
11 - IN_ON_EXCLUSION
Define which events on the input do not switch-On output.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | 1 click |
| 2 | 2 | 2 clicks |
| 4 | 4 | 3 clicks |
| 8 | 8 | Hold down |
| 16 | 16 | Up |
12 - IN_OFF_EXCLUSION
Define which events on the input do not switch-Off output.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | 1 click |
| 2 | 2 | 2 clicks |
| 4 | 4 | 3 clicks |
| 8 | 8 | Hold down |
| 16 | 16 | Up |
21 - OUT_TYPE
Define the output type.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | direct load or normally Open relay |
| 1 | 1 | normally Closed relay |
23 - STARTUP_OUT
Define the output level on startup (status of the device following a restart)Size: 1 byte
Default: 2
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | OFF |
| 1 | 1 | ON |
| 2 | 2 | Previous status |
| 3 | 3 | equal to input (ON if input close, OFF if input open) |
30 - TIMER_SETUP
Define which trigger events activate the timers when output status has changedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disabled |
| 1 | 1 | 1 click |
| 2 | 2 | 2 clicks |
| 4 | 4 | 3 clicks |
| 8 | 8 | Hold down |
| 16 | 16 | Up |
| 32 | 32 | Network (status change trigger by gateway or other devices in the Z-Wave™™ network) |
| 64 | 64 | System (based on the startup status, or other timer event) |
31 - OFF_TIMEOUT
Time in tenth of seconds after which the output will be switched Off.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 360000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 360000 | Specific time expressed in tenth of seconds for Status change |
32 - ON_TIMEOUT
Time in tenth of seconds after which the output will be switched OnSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 360000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 360000 | Specific time expressed in tenth of seconds for Status change |
40 - G1_SETUP
Define which events on the input control G1 association group.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No control |
| 1 | 1 | 1 click |
| 2 | 2 | 2 clicks |
| 4 | 4 | 3 clicks |
| 8 | 8 | Hold down |
| 16 | 16 | Up |
41 - G2_SETUP
Define which events on the input control G2 association group.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No control |
| 1 | 1 | 1 click |
| 2 | 2 | 2 clicks |
| 4 | 4 | 3 clicks |
| 8 | 8 | Hold down |
| 16 | 16 | Up |
44 - G1_ASS_VALUE
The value used to control G1 association group.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 102
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | OFF |
| 1 | 99 | specific diming value |
| 100 | 100 | ON |
| 101 | 101 | propagate (output 1 status to the associated device) |
| 102 | 102 | toggle remote (change status ON/OFF of associated devices) |
45 - G2_ASS_VALUE
The value used to control G2 association group.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 102
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | OFF |
| 1 | 99 | specific diming value |
| 100 | 100 | ON |
| 101 | 101 | propagate (output 1 status to the associated device) |
| 102 | 102 | toggle remote (change status ON/OFF of associated devices) |
50 - DIMMING_TIME
Fade On/Off time in second used to control device in dimming group.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3600 | Specific time expressed in seconds |
51 - MIN_DIM_LEVEL
Define the minimum dimming level to control the device in a dimming group.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Specify the minimum dimming value (not null) |
60 - SCENE_SETUP
Define which event on the input trigger a central scene notification.Size: 1 byte
Default: 31
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | None |
| 1 | 1 | 1 click |
| 2 | 2 | 2 clicks |
| 4 | 4 | 3 clicks |
| 8 | 8 | Hold down |
| 16 | 16 | Up |
Operating instructions (5)
All Smart Serie 7 devices are compatible with all Z-Wave/Z-Wave Plus certified controllers. The devices support both the Network Wide Inclusion mechanism (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Normal Inclusion. By default, the inclusion procedure starts in Normal Inclusion mode and after a short timeout the procedure continues in Network Wide Inclusion mode that lasts for about 20 Seconds. Only a controller can add the device into the network. After activating the inclusion function by the controller, the device can be added by setting it in Learn Mode. Before including the device, the LED status indicator is solid RED. The adding of a device is executed by activating the adding procedure in the inclusion section of the controller interface and executing 1 or 3 click on the integrated button (the device is set in Learn Mode). As soon as the inclusion procedure initiates the LED indicator starts a sequence of GREEN-BLUE blinks. The device is included in the network when the LED status is OFF and the interview is completed.
Only a controller can remove the device from the network. After activating the exclusion function by the controller, the device can be removed by setting it in Learn Mode. The procedure of exclusion can be activated by Removing a node from the Z-Wave network and executing 1 or 3 click on the integrated button; as soon as the exclusion initiates, the LED indicator starts a sequence of RED-BLUE blinks. The device is excluded from the network when the LED status indicator is solid RED and the App_status in the interface is OK.
The device can be reset to the original factory settings with 6 consecutive clicks on the integrated button. After the reset is completed, the device will reboot and a RED solid led is showed. Please use this procedure only when the network primary controller is missing or otherwise inoperable. INFO: If the reset is performed while the device is still part of a network, it notifies the other devices that it has been removed (Device Reset Locally Notification).
Timer Management A timer can be set when switching On and/or Off. It is also possible to define which event will start the timer. Offline setup Mode The device has a unique feature that allows to configure some parameters without using any user interface. This feature enables the professional user to setup the main features of the device in the field even if the device is not included in a Z-Wave Network. When the device will be included in the network all these configuration parameters will be maintained. Central Scene management Since the device supports Central Scene Notification all the events described in the table will be notified with a Central Scene Notification Report to the lifeline. The events that trigger a Central Scene Notification Report can be customized with the configuration parameter in the Central Scene Notification Parameter section. Firmware Update The system supports over-the-air firmware updates that do not require the device to be removed from its location. The firmware update can be activated from all certified controllers supporting version 2 of the Firmware Update function.
When adding Smart Serie 7 devices to a Z-Wave network with a controller supporting Security 2 Authenticated (S2), the PIN code of the Z-Wave Device Specific Key (DSK) is required. The unique DSK code is printed on the product label. The first five digits of the key are highlighted and underlined to help the user identify the PIN code. Page 5 (S2 Secure inclusion)
Document (1)
| Type | Name | |
|---|---|---|
| Unknown | MANUAL_Dry_Contact_7_EN_040422.pdf |
