Honeywell Home (Resideo)

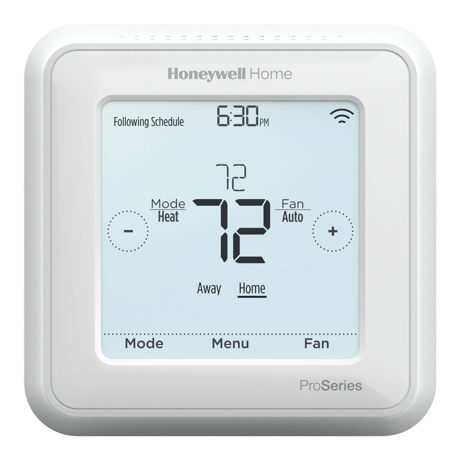

T6 Pro Z-Wave with SmartStart
TH6320ZW2007
Thermostat DT
HW: 01 FW: 03.00:03.01
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x041B (1051)
N/A
0x0011 (17)
ZC14-22040099
2022-04-25 08:16:29
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
T6 PRO Z-WAVE™ THERMOSTAT
1 - Schedule Type
0 = Occupancy; 1 = Every day the same; 2 = 5-2 Schedule; 3 = 5-1-1 Schedule; 4 = Every day individualSize: 1 byte
Default: 2
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Temp Scale
0 = Fahrenheit; 1 = CelsiusSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Outdoor Temp
0 = No; 1 = WiredSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Equipment Type
0 = None; 1 = Standard Gas; 2 = High Efficiency Gas; 3 = Oil; 4 = Electric; 5 = Fan Coil, 6 = Air to Air Heat pump; 7 = Geothermal Heat Pump; 8 = Hot Water; 9 = SteamSize: 1 byte
Default: 2
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Reversing Valve
0 = O/B on Cool; 1 = O/B on HeatSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Cool Stages
0, 1, 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - Heat Stages; AUX/E stages
0, 1, 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Aux/E Control
0 = Both Aux/E; 1 = Either Aux/ESize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
9 - Aux Heat Type
0 = Electric; 1 = Gas/OilSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - EM Heat Type
0 = Electric; 1 = Gas/OilSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - Fossil Kit Control
0 = Thermostat; 1 = ExternalSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
12 - Auto Changeover
0 = Off; 1 = OnSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
13 - Auto Differential
0 to 5 deg FSize: 1 byte
Default: 3
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - High Cool Stage Finish
0 = No; 1 = YesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - High Heat Stage Finish
0 = No; 1 = YesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
16 - Aux Heat Droop
0 = Comfort; 2 to 15 deg F from setpointSize: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - Up Stage Timer Aux Heat
0 = Off; 1 = 30 minutes; 2 = 45; 3 = 60; 4 = 75; 5 = 90 minutes; 6 = 2 hours; 7 = 3; 8 = 4; 9 = 5; 10 = 6; 11 = 8; 12 = 10; 13 = 12; 14 = 14; 15 = 16 hoursSize: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - Balance Point (Compressor Lockout)
0 = Off; 5 to 60 degrees F (in 5 degrees increments)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - Aux Heat Lock Out (Aux Heat Outdoor Lockout)
0 = Off; 5 to 65 degrees F (in 5 degrees increments)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 65
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - Cool 1 CPH (Cooling cycle rate stage 1)
1 to 6 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
21 - Cool 2 CPH (Cooling cycle rate stage 2)
1 to 6 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
22 - Heat 1 CPH (Heating cycle rate stage 1)
1 to 12 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
23 - Heat 2 CPH (Heating cycle rate stage 2)
1 to 12 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
24 - Aux Heat CPH (Heating cycle rate Auxiliary Heat)
1 to 12 CPHSize: 1 byte
Default: 9
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
25 - EM Heat CPH (Heating cycle rate Emergency Heat)
1 to 12 CPHSize: 1 byte
Default: 9
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
26 - Compressor Protection
0 = Off; 1 to 5 minutesSize: 1 byte
Default: 5
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
27 - Adaptive Recovery
0 = Off; 1 = OnSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
28 - Min Cool Temperature
50 to 99 degrees FSize: 1 byte
Default: 50
Minimum: 50
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
29 - Max Heat Temperature
40 to 90 degrees FSize: 1 byte
Default: 90
Minimum: 40
Maximum: 90
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
30 - Air Filters
0, 1 or 2 FiltersSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
31 - Air Filter 1 Reminder
0 = Off; 1 = 10 Run Time Days; 2 = 20; 3 = 30; 4 = 45; 5 = 60; 6 = 90; 7 = 120; 8 = 150 Run Time Days; 9 = 30 Days; 10 = 45; 11 = 60; 12 = 75 Days; 13 = 3 Months; 14 = 4; 15 = 5; 16 = 6; 17 = 9; 18 = 12; 19 = 15 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 19
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
32 - Air Filter 2 Reminder
0 = Off; 1 = 10 Run Time Days; 2 = 20; 3 = 30; 4 = 45; 5 = 60; 6 = 90; 7 = 120; 8 = 150 Run Time Days; 9 = 30 Days; 10 = 45; 11 = 60; 12 = 75 Days; 13 = 3 Months; 14 = 4; 15 = 5; 16 = 6; 17 = 9; 18 = 12; 19 = 15 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 19
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
33 - Hum Pad Reminder
0 = Off; 1 = 6 Calendar Months; 2 = 12 Calendar MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
34 - Dehum Filter Reminder
0 = Off; 1 to 12 Calendar MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
35 - Vent Filter Reminder
0 = Off; 3, 6, 9, 12 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
36 - UV Devices
0, 1 or 2 UV devicesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
37 - UV Bulb 1 Reminder
0 = Off; 6, 12, 24 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
38 - UV Bulb 2 Reminder
0 = Off; 6, 12, 24 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
39 - Idle Brightness
0 = Off; 1 to 5 Brightness levelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
40 - Clock Format
0 = 12 hour; 1 = 24 hourSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
41 - Daylight Saving
0 = Off; 1 = OnSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
42 - Temp Offset
0 = Off; -3 to 3 degrees F (in 1 degree increments)Size: 1 byte
Default: 0
Minimum: 253
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
43 - Humidity Offset
0 = Off; -12 to 12 percent (in 1 percent increments)Size: 1 byte
Default: 0
Minimum: 244
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
44 - Z-Wave Temperature resolution
0 = Advanced; 1 = Standard; 2, 3, 4, 5Size: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
45 - Z-Wave Humidity resolution
1% to 5%Size: 1 byte
Default: 1
Minimum: 1
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
After you finish the installer setup and set the date and time, you will be asked to set up a Z-Wave to include the thermostat into Z-Wave network. Touch Yes to include the thermostat in to Z-Wave network, or touch No if you want this to be done later. • You’ll be asked to set your primary controller to INCLUDE MODE. Please refer to the user manual of your Z-Wave controller. • After inclusion procedure has been initiated on your Z-Wave controller, touch Select on the thermostat. • If the inclusion procedure is successful, INCLUDED, the node ID, and the Z-Wave connected status icon appear on the screen. If the procedure fails, FAILED TO INCLUDE appears on the screen. If this happens, position the thermostat closer to the Z-Wave controller and repeat the inclusion procedure. • Your controller will indicate whether the thermostat was successfully added to its network. (Please refer to the user manual of your Z-Wave controller.)
To include or remove the thermostat from Z-Wave network after initial thermostat setup, go to thermostat MENU/Z-WAVE SETUP.
N/A
Reset Access all reset options on the thermostat. This is the only place to access factory reset.
From page 9: TH6320ZW2007 model is SmartStart enabled and can be pre-included into to a Z-Wave network by using a controller that supports SmartStart to scan the Z-Wave QR Code shown on the back of thermostat and its box. From page 10: Finding DSK and DSK Pin Code The 5-digit DSK Pin Code can be found on the label on the back of the thermostat and by selecting MENU then arrow right to "Z-WAVE SETUP", then right arrow to "GET DSK CODE" and touching select. Full DSK can be found on the box of the thermostat.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management |
|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
