Minoston
Z-Wave Plug with Energy Monitor
MP31ZP
On/Off Power Switch
HW: 255 FW: 1.00
ZM5202
6.71.03
0x0312 (786)
0xFF00 (65280)
0xFF0E (65294)
ZC10-22057087
2022-05-20 10:15:02.215943
N/A
Enhanced 232 Slave
Always On Slave
The MP31ZP is a mini plug-in outlet equipped with Z-Wave™ capabilities and energy monitoring for additional convenience. This smart plug allows you to plug in and access an appliance through the certified Z-Wave hubs.
The MP31ZP is a mini plug-in outlet equipped with Z-Wave™ capabilities and energy monitoring for additional convenience. This smart plug allows you to plug in and access an appliance through the certified Z-Wave hubs. Schedule your appliances, run a timer, or check the On/Off status to monitor and save energy. The compact size gives full access to the second outlet in a standard receptacle.

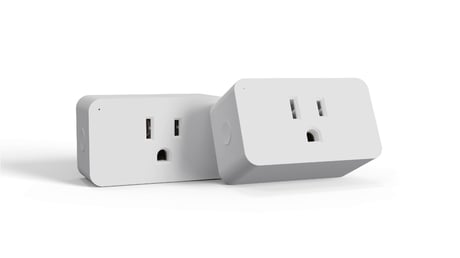

Product Image
1 - Restores state after power failure
Restores state after power failureSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The state before a power outage. |
| 1 | 1 | outlet on |
| 2 | 2 | outlet off |
2 - Power Wattage Report Value Threshold(Wattage)
Power Wattage Report Value Threshold(Wattage)Size: 4 bytes
Default: 10
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Power Wattage Report Value Threshold(Wattage) |
3 - Power Wattage Report Frequency (Timer)
Power Wattage Report Frequency (Timer)Size: 4 bytes
Default: 30
Minimum: 30
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2678400 | Power Wattage Report Frequency (Timer) |
4 - Energy (kWh) Report Frequency (Timer)
Energy (kWh) Report Frequency (Timer)Size: 4 bytes
Default: 300
Minimum: 30
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 2678400 | Energy (kWh) Report Frequency (Timer) |
5 - Parameter Voltage (V) Report Frequency (Timer)
Voltage (V) Report Frequency (Timer)Size: 4 bytes
Default: 300
Minimum: 30
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 2678400 | Voltage (V) Report Frequency (Timer) |
6 - Electricity (A) Report Frequency (Timer)
Electricity (A) Report Frequency (Timer)Size: 4 bytes
Default: 300
Minimum: 30
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 2678400 | Electricity (A) Report Frequency (Timer) |
7 - Overload Protection (Current)
Overload Protection (Current)Size: 1 byte
Default: 13
Minimum: 1
Maximum: 16
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 16 | Overload Protection (Current) |
8 - Endpoint1 Enable Auto Turn-OFF Timer
Endpoint1 Enable Auto Turn-OFF TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-OFF Timer Disabled |
| 1 | 1 | Auto Turn-OFF Timer Enabled |
9 - Endpoint1 Count Down Configuration(Turn off the output by time）
Endpoint1 Count Down Configuration(Turn off the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Endpoint1 Count Down Configuration(Turn off the output by time） |
10 - Endpoint1 Enable Auto Turn-ON Timer
Endpoint1 Enable Auto Turn-ON TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-ON Timer Disabled |
| 1 | 1 | Auto Turn-ON Timer Enabled |
11 - Endpoint1 Count Down Configuration(Turn on the output by time）
Endpoint1 Count Down Configuration(Turn on the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Endpoint1 Count Down Configuration(Turn on the output by time） |
12 - Endpoint2 Enable Auto Turn-OFF Timer
Endpoint2 Enable Auto Turn-OFF TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-OFF Timer Disabled |
| 1 | 1 | Auto Turn-OFF Timer Enabled |
13 - Endpoint2 Count Down Configuration(Turn off the output by time）
Endpoint2 Count Down Configuration(Turn off the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Endpoint2 Count Down Configuration(Turn off the output by time） |
14 - Parameter Endpoint2 Enable Auto Turn-ON Timer
Endpoint2 Enable Auto Turn-ON TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-ON Timer Disabled |
| 1 | 1 | Auto Turn-ON Timer Enabled |
15 - Endpoint2 Count Down Configuration(Turn on the output by time）
Endpoint2 Count Down Configuration(Turn on the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Endpoint2 Count Down Configuration(Turn on the output by time） |
16 - Manual Control
Manual ControlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Manual Control Disabled |
| 1 | 1 | manual control enabled |
17 - Status LED Configuration
Status LED ConfigurationSize: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator will display power consumption whenever the device is plugged in |
| 1 | 1 | LED indicator will display power consumption whenever the device is ON in and will turn off when the plug is OFF |
| 2 | 2 | LED indicator will display the level of power consumption for 5 seconds only whenever the device is turned on or off |
| 3 | 3 | Always OFF |
ADD or Remove the MP31ZP from the existing Z-Wave™ home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the PROG button Three times in one second Include MP31ZP to/from a Z-Wave™ Gateway with supporting Security.The MP31ZP can support the Primary Controller that implemented the security S2.
ADD or Remove the MP31ZP from the existing Z-Wave™ home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the PROG button Three times in one second Include MP31ZP to/from a Z-Wave™ Gateway with supporting Security.The MP31ZP can support the Primary Controller that implemented the security S2.
Press the button twice quickly and then press and hold the button 10S.device will reset (Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected (location provided) |
| Meter type |
|---|
| Electric Meter Production |
