Cherubini
META DRY CONTACT SWITCH ZRX
A510088
Binary Switch DT
HW: 01 FW: 07.00
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0149 (329)
N/A
0x0004 (4)
ZC14-22050108
2022-05-27 18:43:18
N/A
Enhanced 232 Slave
Always On Slave

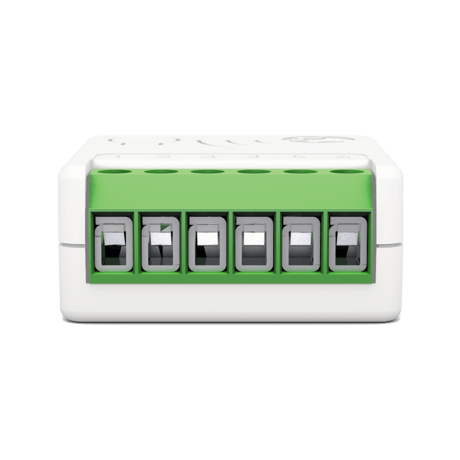

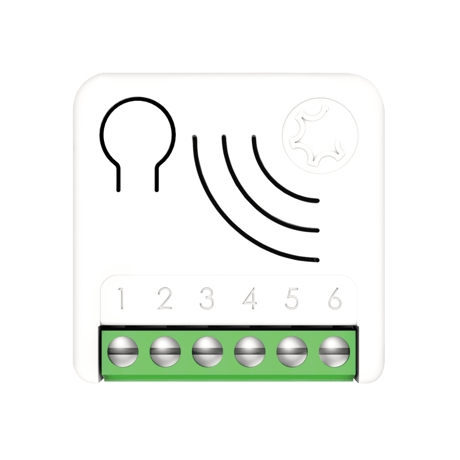

META Dry Contact Switch 7 can turn ON and OFF equipment’s with an independent power supply, such as solenoid valves (e.g. gas, water and irrigation), power operated valves etc. In its ZRX variant the device can also be controlled by Cherubini Remote Controls of SKIPPER - POP OR GIRO series.


View configuration parameters (16)
1 - IN_TYPE
Define the input type. (1: button, 2: toggle switch, 0: no switch input)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - IN_TOGGLE
Define which event on the input toggle output. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up)Size: 1 byte
Default: 15
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - IN_ON_EXCLUSION
Define which input event do not switchOn output. (0: none, 1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
12 - IN_OFF_EXCLUSION
Define which input event do not switchOff output. (0: none, 1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
21 - OUT_TYPE
Define the output type. (0: direct load control or normally Open relay, 1: normally Closed relay)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
23 - STARTUP_OUT
Define the output level on startup (0: OFF, 1: ON, 2: Previous status, 3: equal to input)Size: 1 byte
Default: 2
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
30 - TIMER_SETUP
Event that activates timer (0: none, 1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up, 32: Net, 64: sys)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
31 - OFF_TIMEOUT
Time in tenth of second after which the output will be switched Off. 0: Off timer disabledSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 360000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
32 - ON_TIMEOUT
Time in tenth of second after which the output will be switched On. 0: On Timer disabledSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 360000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
40 - G1_SETUP
Define which input event controls G1 group. (0:none, 1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
41 - G2_SETUP
Define which input event controls G2 group. (0:none, 1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up)Size: 1 byte
Default: 2
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
44 - G1_ASS_VALUE
The value used to control G1 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote)Size: 1 byte
Default: 101
Minimum: 0
Maximum: 102
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
45 - G2_ASS_VALUE
The value used to control G2 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote)Size: 1 byte
Default: 101
Minimum: 0
Maximum: 102
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
50 - DIMMING_TIME
Fade On/Off time in second used to control device in dimming group.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
51 - MIN_DIM_LEVEL
Define the minimum dimming level to control device in dimming group.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
60 - SCENE_SETUP
Define event sent by central scene notification. (0:none, 1:1 click , 2:2 clicks, 4:3 clicks, 8: Hold down, 16: Up)Size: 1 byte
Default: 31
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
Operating instructions (5)
All META Serie 7 devices are compatible with all Z-Wave/Z-Wave Plus certified controllers. The devices support both the Network Wide Inclusion mechanism (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Normal Inclusion. By default, the inclusion procedure starts in Normal Inclusion mode and after a short timeout the procedure continues in Network Wide Inclusion mode that lasts for about 20 Seconds. Only a controller can add the device into the network. After activating the inclusion function by the controller, the device can be added by setting it in Learn Mode. Before including the device, the LED status indicator is solid RED. The adding of a device is executed by activating the adding procedure in the inclusion section of the controller interface and executing 1 or 3 click on the integrated button (the device is set in Learn Mode). As soon as the inclusion procedure initiates the LED indicator starts a sequence of GREEN-BLUE blinks. The device is included in the network when the LED status is OFF and the interview is completed.
Only a controller can remove the device from the network. After activating the exclusion function by the controller, the device can be removed by setting it in Learn Mode. The procedure of exclusion can be activated by Removing a node from the Z-Wave network and executing 1 or 3 click on the integrated button; as soon as the exclusion initiates, the LED indicator starts a sequence of RED-BLUE blinks. The device is excluded from the network when the LED status indicator is solid RED and the App_status in the interface is OK.
The device can be reset to the original factory settings with 6 consecutive clicks on the integrated button. After the reset is completed, the device will reboot and a RED solid led is showed. Please use this procedure only when the network primary controller is missing or otherwise inoperable. INFO: If the reset is performed while the device is still part of a network, it notifies the other devices that it has been removed (Device Reset Locally Notification).
The device can also be controlled by Cherubini Remote Controls of SKIPPER - POP OR GIRO series Timer Management A timer can be set when switching On and/or Off. It is also possible to define which event will start the timer. Offline setup Mode The device has a unique feature that allows to configure some parameters without using any user interface. This feature enables the professional user to setup the main features of the device in the field even if the device is not included in a Z-Wave Network. When the device will be included in the network all these configuration parameters will be maintained. Central Scene management Since the device supports Central Scene Notification all the events described in the table will be notified with a Central Scene Notification Report to the lifeline. The events that trigger a Central Scene Notification Report can be customized with the configuration parameter in the Central Scene Notification Parameter section. Firmware Update The system supports over-the-air firmware updates that do not require the device to be removed from its location. The firmware update can be activated from all certified controllers supporting version 2 of the Firmware Update function.
When adding META Serie 7 devices to a Z-Wave network with a controller supporting Security 2 Authenticated (S2), the PIN code of the Z-Wave Device Specific Key (DSK) is required. The unique DSK code is printed on the product label. The first five digits of the key are highlighted and underlined to help the user identify the PIN code. Page 35 - S2 Secure inclusion
Document (1)
| Type | Name | |
|---|---|---|
| Unknown | METADryContactSwitch_ZRX_IT-EN_1.pdf |
