nexTouch Sectional Mortise Push Button Keypad Lock
NTM637-ZW2
Door Lock - Keypad
HW: 255 FW: 1.78:32.27
ZM5101
6.51.07
0x0129 (297)
0x8100 (33024)
0x0A25 (2597)
ZC10-22067089
2022-06-03 17:14:32.272756
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Expanding the Yale nexTouch™ product line for even more applications, the new nexTouch Sectional Mortise Keypad Lock provides robust security for a wide range of commercial and multi-family buildings.
Expanding the Yale nexTouch™ product line for even more applications, the new nexTouch Sectional Mortise Keypad Lock provides robust security for a wide range of commercial and multi-family buildings. Just like the original cylindrical nexTouch lock, it is ANSI/BHMA Grade 1 certified and offered in capacitive touchscreen or pushbutton keypad versions. With just the addition of a Z-Wave Plus™ module, you can add this lock to compatible smart home and alarm systems. Other standard features include voice-guided programming, privacy mode with Door Position Switch, 9V battery backup, support of up to 100 unique user codes, and more.

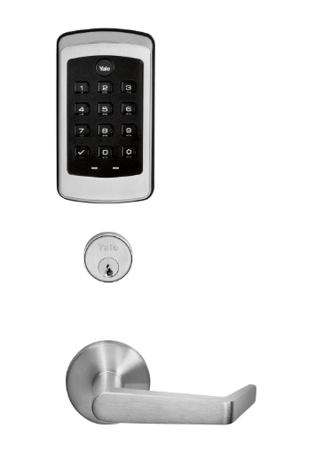

Product Image
1 - Silent Mode on/off
Level control, 1 = High Volume, 2 = Low Volume, 3 = Silent. Default is 1 or High VolumeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | Level |
2 - Auto Relock On/Off
0x00 = OFF, 0xFF = ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Relock Off |
| 255 | 255 | Auto Relock On |
3 - Auto Relock Time
1 to 180 seconds default is 3 secondsSize: 1 byte
Default: 3
Minimum: 3
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 180 | Seconds |
4 - Wrong Code Entry Limit
3 to 10 default is 5 timesSize: 1 byte
Default: 5
Minimum: 3
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 10 | Times |
5 - Language
Set the lock language. Default is 1= EnglishSize: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | English Language |
| 2 | 2 | Spanish Language |
| 3 | 3 | French Language |
7 - Shut Down Time (after wrong code entries)
10 to 127 seconds default is 60 secondsSize: 1 byte
Default: 60
Minimum: 10
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 127 | Seconds |
8 - Operating Mode
This sets the operating mode for the lock.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal Mode (Default) |
| 1 | 1 | Vacation Mode (Keypad Locked Out) |
| 2 | 2 | Privacy Mode (Keypad Locked, RF Unlock Functional) |
| 3 | 3 | passage mode, Lock is permanently unlocked. |
11 - One Touch Locking
0x00 = OFF, 0xFF = ON default is 0xFF or ON.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | One Touch Locking Off |
| 255 | 255 | One Touch Locking On |
12 - Privacy Button
0x00 = OFF, 0xFF = ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Privacy Button Off |
| 255 | 255 | Privacy Button On |
15 - Reset to Factory Defaults
01 = Lock will execute Reset To Factory. No default valueSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset to Factory Off |
| 1 | 1 | Reset to Factory On |
16 - Escape Return Mode
0x00 = OFF, 0xFF = ON default is 0x00 or OFF Enables the Escape Return mode of operation for the lock.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Escape Return Mode Off |
| 127 | 127 | Escape Return Mode On |
18 - Door Propped Timer
10 to 2540 second. This value is represented as seconds X 10. (ie a value of 4 would mean a door propped timer of 40 seconds) Set to 0x00 to disable Door Propped Alarm. Default = 0x00 (OFF)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Seconds |
19 - DPS Alarm
0x00 = OFF, 0xFF = ON Default is 0xFF or ON. Used to enable/disable door condition alarms for locks that support a door position sensor. Any lock that does not support DPS will always report 0x00.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | DPS Alarm Off |
| 255 | 255 | DPS Alarm On |
20 - Deadbolt Installed
0x00 = NO deadbolt , 0xFF = YES deadboltSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Deadbolt No |
| 255 | 255 | Deadbolt Yes |
21 - Eco Mode On/Off
0x00 = OFF, 0xFF = ON default is 0x00 or OFF If supported switches lock to lower power mode of operation with reduced sound and led brightness.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Eco Mode Off |
| 255 | 255 | Eco Mode On |
22 - Privacy Mode with Deadbolt
0x00 = OFF, 0xFF = ON default is 0x00 or OFF If enabled then extending the deadbolt will put the lock into Privacy Mode.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Privacy Mode Off |
| 255 | 255 | Privacy Mode On |
23 - Lock Body Alarms Mask
Each bit controls one alarm. 1 = alarm enabled, 0 = alarm disabled. 0xFF = All Alarms on, Default is 0xFF. Bit 0: DPS Alarm (AX) (Duplicate of parameter 19. Values should be tied together) Bit 1: Deadbolt Alarm Bit 2: Lever Rotated (Rx) Bit 3 – 7: Not UsedSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Sensor Alarm |
| 255 | 255 | All Sensors Alarm |
1. Enter the 4-8 digit master PIN code followed by the gear key. 2. Press the 7 key followed by the gear key. 3. Press the 1 key followed by the gear key.
1. Enter the 4-8 digit master PIN code followed by the gear key. 2. Press the 7 key followed by the gear key. 3. Press the 3 key followed by the gear key.
Touch the touchscreen with three fingers
Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1. Remove the inside lever with the lever removal tool. 2. Remove battery cover using hex wrench provided with lock. 3. Remove four (4) AA batteries. 4. Remove the 10-32 x 3/4"" pan head screw from the center of the battery housing into the barrel nut of the outside assembly. 5. Remove inside escutcheon. Cables may stay connected. 6. Reinstall batteries 7. On the back of the PC board, push and hold the Reset Button with the lever removal tool for 3 seconds. 8. While continuing the press the reset button, temporarily remove one AA battery. 9. Reinstall the battery 10. Release reset button and wait 15 seconds. Speaker will announce ""Welcome to Yale"" 11. Reassemble escutcheon
