NEXA
Z-Wave 700 MOS Dimmer
ZBD-110
Multilevel Switch DT
HW: 01 FW: 01.01:00.03
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0060 (96)
N/A
0x0033 (51)
ZC14-22060109
2022-06-07 15:46:49
N/A
Enhanced 232 Slave
Always On Slave

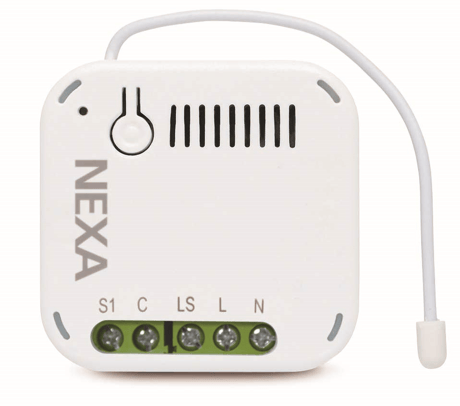

ZBD-110 is an inwall dimmer module to dim lighting appliances by Z-WaveTM wireless control. It uses MOS technology to achieve both Trailing-edge dimming for LED lighting and Leading-edge dimming for older lamps. Compact in design, yet certified for safety makes it suitable for installation in crammed electrical box located behind wall switches.
1 - Switch Type
Default: 0 (Momentary)Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Momentary |
| 1 | 1 | Toggle |
2 - Auto-on time
Def 0, secondSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto-on disabled |
| 1 | 32767 | seconds |
3 - Auto-off time
Def 0, secondSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Aufo off disabled |
| 1 | 32767 | seconds |
4 - Remember last status
Def 1, save last stateSize: 2 bytes
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | do not remember |
| 1 | 1 | remember |
5 - Interval for wattage/kWh auto report
Def 600, secondSize: 2 bytes
Default: 600
Minimum: 60
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 60 | 32767 | seconds |
6 - Report when exceed % change of wattage
Def 25, percentSize: 2 bytes
Default: 25
Minimum: 10
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 100 | percent |
7 - Maximum dimming value
Def 100"Size: 2 bytes
Default: 100
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | percent |
8 - Minimum dimming value
Def 100Size: 2 bytes
Default: 10
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | percent |
9 - MOS operation mode
Def 2Size: 2 bytes
Default: 2
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled, (unknown load) |
| 2 | 2 | Trailing edge dimming |
| 1 | 1 | On/off only, no dimming |
| 3 | 3 | Leading edge dimming |
10 - Calibration Mode
Def 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | IDLE |
| 1 | 1 | Calibrate |
11 - Auto Calibration
Def 1Size: 2 bytes
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | not calibrate automatically |
| 2 | 2 | Calibrate after first power on when module is included; |
| 1 | 1 | Calibrate after first power on when module is excluded |
| 3 | 3 | Calibrate after first power on |
12 - Dimming speed
Def 4, secondSize: 2 bytes
Default: 4
Minimum: 1
Maximum: 600
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 600 | seconds |
13 - Set voltage when in 2-wire
Def 230, voltageSize: 2 bytes
Default: 230
Minimum: 1
Maximum: 500
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 500 | Volt |
14 - Use external switch for inclusion and exclusion
Def 1, switch can include/exculde/resetSize: 2 bytes
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
15 - Lamp type detected
0: unknow, 1 non dimmable, 2 dimmableSize: 2 bytes
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unknown |
| 1 | 1 | Lamp recognized as non-dimmable |
| 2 | 2 | Lamp recognized as dimmable |
16 - Wire connection type
0: unknow, 1:2 wire, 2:3 wireSize: 2 bytes
Default: 2
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unknown |
| 1 | 1 | Unknown |
| 2 | 2 | 2-Wire |
| 3 | 3 | 3-Wire |
17 - Power auto report threshold
Def 0, 0: disableSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 300
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 300 | Watt |
18 - Dimming curve
Def 0, 0:linear, 1:logSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Linear |
| 1 | 1 | Logarithmic |
19 - Load type detected
Def 0: unknow, 1: Resistive, 2: Capacitive, 3: InductiveSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unknown |
| 1 | 1 | resistive load |
| 2 | 2 | capacitive load |
| 3 | 3 | inductive load |
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link key or external switch three times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link key or external switch three times within 1.5 seconds to put the unit into exclusion mode.
1. Press the link key or external switch three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key or external switch again and hold until LED is off (about 5 seconds). 3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes. (This procedure should only be used when the network primary controller is inoperable.)
Page 2: Adding to Z-Wave Network Note: If the Z-Wave Controller utilizes S2 security protocol, you may be asked to enter a 5 digit Device Specific Key (DSK) .This can be found in one of two places: - on the QR code label on the back of the unit - on the insert card inside the packaging
