Yale nexTouch Touchscreen Exit Rim Trim
NTT622-ZW2
Door Lock - Keypad
HW: 255 FW: 1.78:32.33
ZM5101
6.51.07
0x0129 (297)
0x8102 (33026)
0x0C16 (3094)
ZC10-22067114
2022-06-21 11:48:01.049152
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Yale nexTouch electrified trim for Yale and competitor rim exit devices with Push Button keypad and supporting modular radio technology

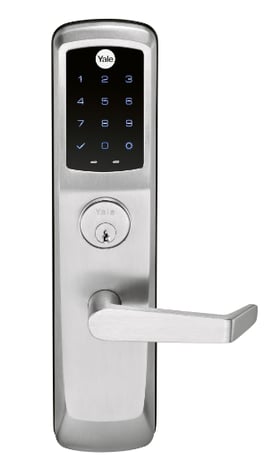

Product Image
1 - Silent Mode on/off
Level control, 1 = High Volume, 2 = Low Volume, 3 = Silent. Default is 2 or Low VolumeSize: 1 byte
Default: 2
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | Sound level |
2 - Auto Relock on/off
0x00 = OFF, 0xFF = ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Relock OFF |
| 255 | 255 | Auto Relock On |
3 - Relock Time
10 to 180 seconds default is 30 secondsSize: 1 byte
Default: 30
Minimum: 10
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 180 | Seconds |
4 - Wrong Code Entry Limit
3 to 10 default is 5 timesSize: 1 byte
Default: 5
Minimum: 3
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 10 | Times |
5 - Language
1=English, 2=Spanish, 3=French default is 1= EnglishSize: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | English |
| 2 | 2 | Spanish |
| 3 | 3 | French |
7 - Shut Down Time (After wrong codes)
10 to 180 seconds default is 60 secondsSize: 1 byte
Default: 60
Minimum: 10
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 180 | Seconds |
8 - Operating Mode
00 = normal mode (this is the default mode) 01 = vacation mode, keypad lockout 02= privacy mode, no keypad. RF Unlock will workSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal Mode |
| 1 | 1 | Vacation Mode |
| 2 | 2 | Privacy Mode |
11 - One Touch Locking
0x00 = OFF, 0xFF = ON default is 0xFF or ON.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | One Touch Locking Off |
| 255 | 255 | One Touch Locking On |
12 - Privacy Button
0x00 = OFF, 0xFF = ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Privacy Button Off |
| 255 | 255 | Privacy Button On |
13 - Lock Status LED
0x00 = OFF , 0xFF=ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Lock Status LED Off |
| 255 | 255 | Lock Status LED On |
15 - Reset to Factory Defaults
01 = Lock will execute Reset To Factory. No default valueSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset to Factory Off |
| 1 | 1 | Reset to Factory ON |
18 - Door Propped Timer
10 to 2540 second. This value is represented as seconds X 10. (ie a value of 4 would mean a door propped timer of 40 seconds) Set to 0x00 to disable Door Propped Alarm. Default = 0x00 (off)Size: 1 byte
Default: 0
Minimum: 10
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 255 | Seconds |
19 - DPS Alarms
0x00 = OFF, 0xFF = ON Default is 0x00 or off. Used to enable/disable door condition alarms for locks that support a door position sensor. Any lock that does not support DPS will always report 0x00.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 255 | 255 | DPS Alarm |
21 - Eco Mode on/off
0x00 = OFF, 0xFF = ON default is 0x00 or OFF If supported switches lock to lower power mode of operation with reduced sound and led brightness.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Eco Mode Off |
| 255 | 255 | Eco Mode on |
Enter the 4-8 master Pin code followed by the gear key. Press the 7 key followed by the gear key Press the 1 key followed by the gear key
Enter the 4-8 digit master pin code followed by the gear key Press the 7 key followed by the gear key Press the 3 key followed by the gear key
Press any key
Remove the battery cover and batteries. Remove the interior escutcheon to access the reset button. The reset button is located above the PCB cable connector. While pressing the reset button for a minimum of 3 seconds, reinstall batteries. Release reset button. Replace battery cover. Please use this procedure only when the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Power Management | (Refer to parameters): State idle |
