Minoston

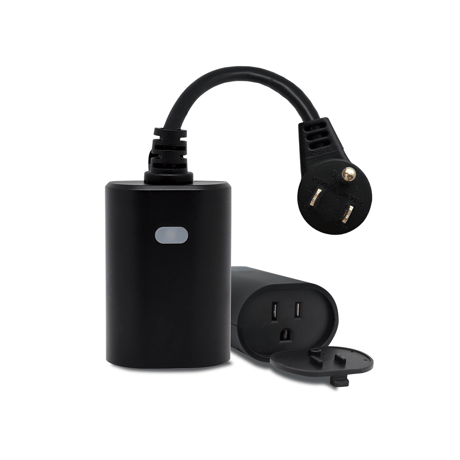

Outdoor Smart Plug
MP22Z
Binary Switch DT
HW: 01 FW: 01.00
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0312 (786)
N/A
0xFF00 (65280)
ZC14-22070114
2022-07-06 07:06:01
N/A
Enhanced 232 Slave
Always On Slave
Z-Wave™ Outdoor Smart Plug
1 - Reaction of led
Parameter setting to change the reaction of LED setting.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Night led on time
Night Light ON time.Size: 4 bytes
Default: 1572864
Minimum: 0
Maximum: 2359296
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Night led off time
Night Light OFF time.Size: 4 bytes
Default: 393216
Minimum: 0
Maximum: 2359296
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Indicator play duration
Setting indicator play duration.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Indicator speed
Select indicator flash speed.Size: 1 byte
Default: 5
Minimum: 1
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - Control turn off
Prevents the plug from being turned off via its button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Restore status after power failure
Action in case of power out.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
30 - Alarm setting
Determines if alarms are enabled in Switch, and what Switch will react to which alarms.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
31 - Alarm response in device
Enabled by (Alarm settings), and determines what the switch does in the case an alarm is triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
32 - Alarm disable setting
Determines the method of disabling the alarm of the device.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
40 - Auto turn off timer
Auto off after as soon as the switch turns ONSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 86400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
41 - Auto turn on timer
Auto on after as soon as the switch turns OFFSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 86400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
Tap the button on device once.
Tap the button on device twice.
Press and hold the button for 20s.
Page 5 in the UserManual
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected |
