Yale

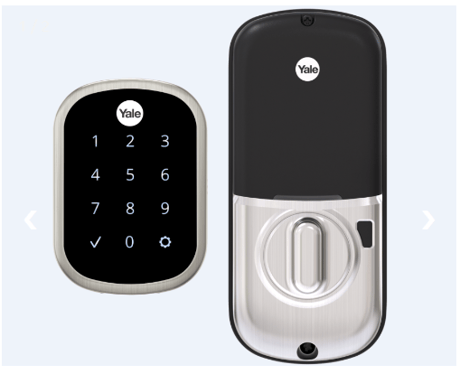

Yale Real Living® Assure Lock® SL Key Free Touchscreen Deadbolt
YRD652-ZW3
Lock DT
HW: 02 FW: 02.35:21.07
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0129 (297)
N/A
0x8109 (33033)
ZC14-22070115
2022-07-11 11:05:34
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad.
1 - Volume
Set Volume Level to high (1), low (2), or silent (3).Size: 1 byte
Default: 2
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | High Volume |
| 2 | 2 | Low Volume |
| 3 | 3 | Silent |
2 - Auto Relock
Set Auto Relock feature to enable or disable.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 255 | 255 | Enable |
3 - Relock time
Adjust the time your lock will auto relock.Size: 1 byte
Default: 30
Minimum: 10
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 180 | seconds |
4 - Wrong Code Entry Limit
Adjust the limit for wrong code entries allowed by your lock.Size: 1 byte
Default: 5
Minimum: 3
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 10 | attempts |
5 - Language
Set the language to English (1), Spanish (2), or French (3).Size: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | English |
| 2 | 2 | Spanish |
| 3 | 3 | French |
7 - Shut down time
Adjust the time your lock is shutdown after reaching its wrong code entry limit.Size: 1 byte
Default: 60
Minimum: 10
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 180 | seconds |
8 - Operating mode
Set the Operating Mode to normal mode(0), vacation mode(1), privacy mode(2).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal Mode |
| 1 | 1 | Vacation mode |
| 2 | 2 | Privacy Mode |
11 - One Touch Locking
Set One Touch Locking feature to enable or disable.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 255 | 255 | Enable |
12 - Privacy Button
Set Privacy Button feature to enable or disable.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 255 | 255 | Enable |
13 - Lock Status LED
Set Lock Status LED feature to enable or disable.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 255 | 255 | Enable |
28 - Expiring Pin Code Enabled Time
Timeout value used to determine time after first entry is triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 127 | Hours |
press any key
When lock is reset to factory defaults all Entry Codes (including the Master Entry Code*) are deleted and all programming features are reset to original default settings (see below). 1. Remove battery cover and batteries. 2. Remove inside lock to access reset button. 3. Reset button (see image at right) is located beside cable adapter. 4. While pressing reset button reinstall batteries. Hold reset button a minimum of 3 seconds then release. 5. Replace battery cover. After reset, Master Entry Code creation is the only option available and must be performed prior to any other programming of the lock
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Power Management |
|
