Everspring
Smart Plug
AN370-3
Binary Switch DT
HW: 01 FW: 01.00
ZGM130S037HGN2 / ZGM130S037HGN1
7.17.2
0x0060 (96)
N/A
0x0034 (52)
ZC14-22070116
2022-07-28 12:27:01
N/A
Enhanced 232 Slave
Always On Slave

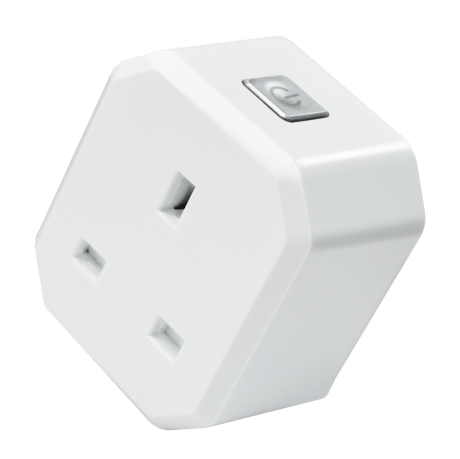

This AN370 plug-in ON/OFF Module is a transceiver which is a Z-WaveTM enabled device and is fully compatible with any Z-WaveTM enabled network.
1 - Remember the last status
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | remember |
| 0 | 0 | do not remember |
2 - LED on/off
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | enable |
| 0 | 0 | disable |
1. Put the Z-WaveTM Controller into inclusion mode. 2. Press the button three times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-WaveTM Controller into exclusion mode. 2. Press the button three times within 1.5 seconds to put the unit into exclusion mode.
1. Press the button three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold until LED is off (about 5 seconds). 3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes.
If you are connecting this unit to a Z-WaveTM Controller that utilizes the S2 security protocol, you may be asked to enter a 5 digit Device Specific Key (DSK) that is unique to each unit by your controller. This can be found in one of two places: - on the QR code label on the unit - on the insert card inside the packaging
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | Power status: Power has been applied |
