Alarm.com
Smart H2O Monitor
ADC-SHM-100-A
Notification Sensor DT
HW: 01 FW: 00.25:00.20
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0094 (148)
0x0007 (7)
0x0004 (4)
ZC14-22080127
2022-08-12 07:03:58
N/A
Enhanced 232 Slave
Always On Slave

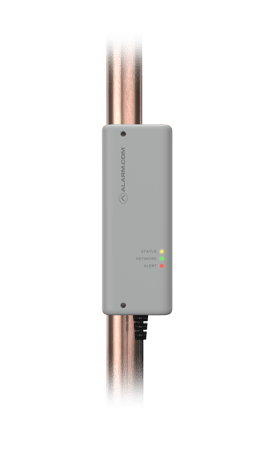

The Alarm.com Smart H2O Monitor is a non-intrusive water leakage detection device for residential and light commercial installation, giving property owners peace of mind.
1 - HI_FLOW_THRESH
See manualSize: 1 byte
Default: 28
Minimum: 2
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - MED_FLOW_THRESH
See manualSize: 1 byte
Default: 4
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - LO_FLOW_THRESH
See manualSize: 1 byte
Default: 19
Minimum: 5
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - HI_FLOW_RESP
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - MED_FLOW_RESP
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - LO_FLOW_RESP
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - HI_FLOW_TIMER
See manualSize: 1 byte
Default: 1
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - MED_FLOW_TIMER
See manualSize: 1 byte
Default: 40
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
9 - LO_FLOW_TIMER
See manualSize: 2 bytes
Default: 2
Minimum: 1
Maximum: 15127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - LO_PTEMP_THRESH
See manualSize: 2 bytes
Default: 40
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - HI_PTEMP_THRESH
See manualSize: 2 bytes
Default: 650
Minimum: 200
Maximum: 650
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
12 - LO_PTEMP_RESP
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
13 - HI_PTEMP_RESP
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - HEARTBEAT_PRD
See manualSize: 1 byte
Default: 4
Minimum: 1
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - METER_GRANU
See manualSize: 1 byte
Default: 40
Minimum: 1
Maximum: 80
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
16 - FLOWRATE_GRANU
See manualSize: 1 byte
Default: 20
Minimum: 2
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - TEMP_GRANU
See manualSize: 1 byte
Default: 20
Minimum: 1
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - CALIBRATED
See manualSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4280224867
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
29 - PRD_ERR_THRESH
See manualSize: 1 byte
Default: 30
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
30 - PRD_MIN_PERIOD
See manualSize: 1 byte
Default: 2
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
31 - PRD_CLEAR_TIME
See manualSize: 1 byte
Default: 60
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
33 - HI_FLOW_THRESH2
See manualSize: 1 byte
Default: 30
Minimum: 2
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
34 - MED_FLOW_THRESH2
See manualSize: 1 byte
Default: 6
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
35 - LO_FLOW_THRESH2
See manualSize: 1 byte
Default: 19
Minimum: 5
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
36 - HI_FLOW_RESP2
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
37 - MED_FLOW_RESP2
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
38 - LO_FLOW_RESP2
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
39 - HI_FLOW_TIMER2
See manualSize: 1 byte
Default: 1
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
40 - MED_FLOW_TIMER2
See manualSize: 1 byte
Default: 40
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
41 - LO_FLOW_TIMER2
See manualSize: 2 bytes
Default: 4
Minimum: 1
Maximum: 15127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
46 - ULTRASONIC_FREQ
See manualSize: 2 bytes
Default: 1340
Minimum: 1200
Maximum: 1400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
47 - PULSE_COUNT
See manualSize: 2 bytes
Default: 8
Minimum: 6
Maximum: 14
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
48 - RX_GAIN
See manualSize: 1 byte
Default: 52
Minimum: 17
Maximum: 63
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
49 - AGC_ENABLE
See manualSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
50 - RX_ATTENUATE
See manualSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
51 - ENV_THRESHOLD
See manualSize: 2 bytes
Default: 33
Minimum: 10
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
52 - CAPTURE_START
See manualSize: 2 bytes
Default: 72
Minimum: 40
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
53 - CAPTURE_WINDOW
See manualSize: 2 bytes
Default: 20
Minimum: 20
Maximum: 40
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
54 - PIPE_INFO
See manualSize: 1 byte
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
56 - DTOF_OFFSET
See manualSize: 2 bytes
Default: 0
Minimum: 35536
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
58 - FLOW_DIRECTION
See manualSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
59 - PRD_MIN_THRESH
See manualSize: 1 byte
Default: 100
Minimum: 50
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
60 - DTOF_NOISE
See manualSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
64 - CALIBR_FEEDBACK
See manualSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
65 - HI_FLOW_THRESH3
See manualSize: 1 byte
Default: 30
Minimum: 2
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
66 - MED_FLOW_THRESH3
See manualSize: 1 byte
Default: 6
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
67 - LO_FLOW_THRESH3
See manualSize: 1 byte
Default: 19
Minimum: 5
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
68 - HI_FLOW_RESP3
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
69 - MED_FLOW_RESP3
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
70 - LO_FLOW_RESP3
See manualSize: 1 byte
Default: 4
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
71 - HI_FLOW_TIMER3
See manualSize: 1 byte
Default: 1
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
72 - MED_FLOW_TIMER3
See manualSize: 1 byte
Default: 40
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
73 - LO_FLOW_TIMER3
See manualSize: 2 bytes
Default: 4
Minimum: 1
Maximum: 15127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
80 - RESET_DEVICE
See manualSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
81 - SELECT_PARAM_SET
See manualSize: 1 byte
Default: 0
Minimum: 0
Maximum: 64
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
82 - DISABLE_MULTIREP
See manualSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
84 - DISABLE_MONITOR
See manualSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
85 - DISABLE_TIMEOUT
See manualSize: 1 byte
Default: 4
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
86 - PRD_BUF_LENGTH
See manualSize: 1 byte
Default: 8
Minimum: 1
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
Adding the Smart H2O Monitor to a Z-Wave network For best results, we recommend bringing the Smart H2O Monitor closer to your Z-Wave controller. 1. Put the Z-Wave controller in Add mode. Refer to the controller’s documentation for more information. 2. Press the Network button on the side of the Smart H2O Monitor to begin the Add process. The Network LED on the unit will begin blinking. After the Smart H2O Monitor is successfully added to the Z-Wave network, the Network LED on the control unit will turn solid green. If the Network LED is not illuminated after the Add process, repeat steps 1 and 2. SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being on in the network vicinity.
Removing the Smart H2O Monitor from the Z-Wave network 1. Put the Z-Wave controller in Remove mode. Refer to the controller’s documentation for more information. 2. Press the Network button on the side of the Smart H2O Monitor to begin the Remove process. The Network LED on the control unit will begin blinking. 3. After the Smart H2O Monitor is successfully removed from the network, the Network LED will turn off. If the Network LED is still illuminated after completing the Remove process, repeat steps 1 and 2.
Resetting the Smart H2O Monitor to factory default settings CAUTION: Resetting the Smart H2O Monitor to its factory default settings will delete the device from the Z-Wave network and restore all settings to their default values. Press and hold the Network button for 15 seconds. All 3 LEDs will blink until the factory reset is complete. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
In the box • Smart H2O Monitor (with device DSK label)
| Group | Type |
|---|---|
| Water Alarm |
|
| System |
|
| Sensor type |
|---|
| Air Temperature |
| Water Temperature |
| Time |
| Water Flow |
