Yale
Yale YMI70A
YMI70A
Lock DT
HW: 02 FW: 02.38:13.08
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0129 (297)
N/A
0xE00F (57359)
ZC14-22100144
2022-10-12 08:50:27
N/A
Enhanced 232 Slave
Listening Sleeping Slave

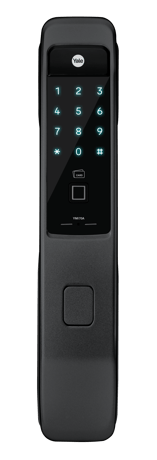

Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad.
1 - Volume
Set Volume Level to high (3), low (2), or silent (1).Size: 1 byte
Default: 3
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Auto Relock
Set Auto Relock feature to enable or disable.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Wrong Code Entry Limit
Adjust the limit for wrong code entries allowed by your lock.Size: 1 byte
Default: 5
Minimum: 3
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
How to add (pairing) the product into Z-Wave network 1. Operate on lock following guide below: 1) Enter Master Code-> ‘R’ -> ‘9’ -> ‘#’ -> ‘1’ -> ‘#’ (only can be activated in advanced mode)
How to remove the product from Z-Wave network 1. Operate on lock following guide below: 1) Enter Master Code-> ‘R’ -> ‘9’ -> ‘#’ -> ‘3’ -> ‘#’ -> Master Code -> ‘#’ (only can be activated in advanced mode)
How to factory reset for Z-Wave Note: please use this procedure only when the network primary controller is missing or otherwise inoperable. 1) Press and hold the "factory reset" key after the lock body 2) Power off the lock body for more than 5S, and plug in the battery again 3) Plug in the battery again and wait for 5S to release the "factory reset" key
2.6 Z-Wave DSK Location 2.6.1 How to locate the DSK representation on the product You can find the QR code when you open the battery box 2.6.2 How to access the DSK representation via the UI You may also find the QR Code and DSK on individual package of each product. Please do not remove or damage them.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Power Management |
|
