TLJ Access Control
ZPAD V3.4
TLJ ZPAD
Lock DT
HW: 01 FW: 01.28:03.30
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x0449 (1097)
N/A
0x0004 (4)
ZC14-22100148
2022-10-17 09:59:33
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes

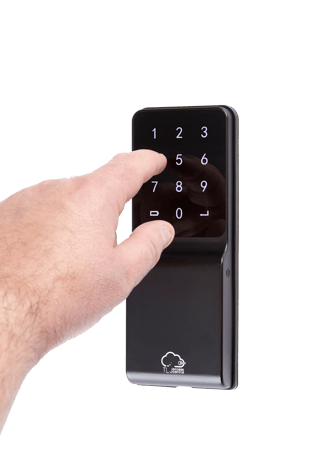

Digital Keypad, which wirelessly pairs to a compatible TLJ battery powered lock set. Totally wire-free & battery powered , with embedded Z-Wave™ capabilities for remote control and compatible with RFID tags too.
1 - SilentOnOff
ControlSoundSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - RelockOnOff
AutoRelockSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - RelockTimer
RelockTimerSize: 1 byte
Default: 3
Minimum: 1
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - WrongCode
EntryLimitSize: 1 byte
Default: 5
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - PressRandom
WakeupZpadSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - LockOutTime
LockOutTimeSize: 1 byte
Default: 30
Minimum: 10
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - OpreatingMode
OpreatingModeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
9 - DoorLockPair9
DoorLockPair9Size: 4 bytes
Default: 16777215
Minimum: 0
Maximum: 16777215
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - DoorLockPair10
DoorLockPair10Size: 4 bytes
Default: 16777215
Minimum: 0
Maximum: 16777215
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - OneTouchLock
OneTouchLockSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - ResetDefault
RstFactoryDefaultSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - DeadblotFunc
DeadblotFuncSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - DoorPosition
AlarmTimerSize: 1 byte
Default: 10
Minimum: 0
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - DeadblotInstall
DeadblotInstallSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
22 - PrivacyMode
DeadblotExtSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
24 - BLEInterface
SupportSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
25 - BleKeyUid25
BleKeyUid25Size: 4 bytes
Default: 16777215
Minimum: 0
Maximum: 16777215
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
26 - BleKeyUid26
BleKeyUid26Size: 4 bytes
Default: 16777215
Minimum: 0
Maximum: 16777215
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
48 - LowBatPercent
LowBatAlarmSize: 1 byte
Default: 10
Minimum: 5
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
Simply by touching the front main panel touch screen keypad, anywhere will wake-up the Zpad.
Remove the Zpad from the wall, and locate the "SET" button on the backside. Press & Hold this button for the required duration to perform the factory reset A, B or C. Please note regarding reset type C - Please use this procedure only when the network primary controller is missing or otherwise inoperable.
DSK usually print on the main body
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Power Management |
|
