Inclusion To add the device into the Z-Wave network: 1) Power on device and ensure it has been factory defaulted. 2) Set the primary controller into inclusion mode. 3) Click the Action Button once to enter inclusion mode. Red LED: fast flashing. Inclusion mode can be cancelled by clicking the Action Button again before the controller starts inclusion mode. Red LED stops flashing. 4) If your Z-Wave controller supports S2 Access encryption and DSK, enter the first 5 digits of the DSK located at bottom of the QR image. 5) If Inclusion is successful: Red LED stops fast flashing. Green LED turns on for 2 seconds.

The Exclusion process is the same as Inclusion however your Z-Wave controller must be in Exclusion mode. You may need to refer to your Z-Wave gateway/controller’s instructions for removing devices. Exclusion To remove the device from the Z-Wave network: 1) The device is powered 2) Set the primary controller into Exclusion mode. 3) Click the Action Button once. 4) If Exclusion is successful: Red LED stops fast flashing. Green LED turns on for 2 seconds.

2. Wake-up To manually wake up the ZWR, press and hold the Action Button for 3 seconds until the Blue LED turns on, then release the button.

3. Factory Default To reset Ness ZWR to factory default settings, press and hold the Action Button for at least 20 seconds. Release the button when the Blue LED turns off (20 seconds). The Green LED will flash once to indicate successful reset. Releasing the Action Button while the Blue LED is on cancels the reset process.

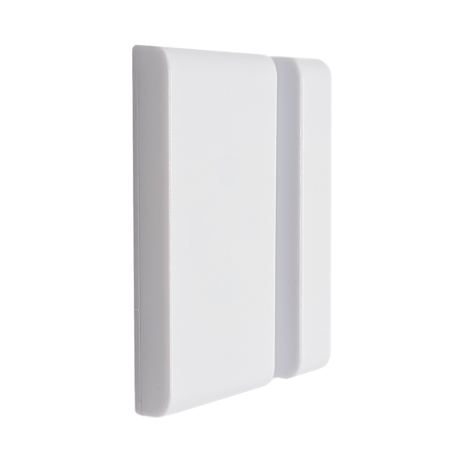

Page 7 Ness Z-Wave Reed Switch is a SmartStart enabled device allowing it to be added into a Z-Wave network by scanning its Z-Wave QR Code with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.
