Venture WISE
Venture WISE Connect
HC3L-001
Gateway
HW: 1 FW: 7.14
EFR32Z
7.14.2
0x010F (271)
0x0005 (5)
0x1000 (4096)
ZC12-22120350
2022-12-13 12:31:50.573146
N/A
Bridge Controller
Central Static Controller
Venture WISE Connect is the core element of the smart home system. It enables the integration of smart home devices into a single system to provide convenient control and a powerful automation platform. The gateway is now even more secure, reliable, and versatile.
Venture WISE Connect is the core element of the smart home system. It enables the integration of smart home devices into a single system to provide convenient control and a powerful automation platform. The gateway is now even more secure, reliable, and versatile. - Provides a reliable foundation for smart home system, - Capable of controlling compatible devices using the following radio standards: - Z-Wave™ (700 series), - Wi-Fi – 2.4 GHz (802.11 b/g/n). - Allows to add up to: - 40 Z-Wave™ devices (recommended), - 1 IP camera, - 40 scenes, - 10 Quick Apps, - 5 plugins. - No Internet cable required, works on Wi-Fi, - Modern interface designed for ease of use, - Enhanced and convenient scene editor, - Support for more advanced apps and drivers, - May be used with all devices certified with the Z-Wave Plus™ certificate and should be compatible with such devices produced by other manufacturers.

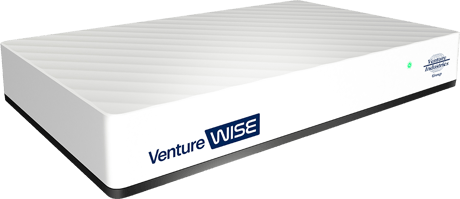

Product Image
12.1: ADDING/REMOVING TO/FROM EXISTING Z-WAVE NETWORK This gateway can be added to an existing Z-Wave network only if no Z-Wave devices are added to it. 1. Start adding/removing procedure on the primary controller (according to its manual). 2. Go to > Z-Wave. 3. Under Start Learn Mode click Start 4. If you are prompted for the PIN, you will find it on the bottom of the gateway and on the box.
27: RESETTING TO FACTORY DEFAULTS ! Caution! The whole configuration will be removed and lost if not backed up. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. This feature allows you to restore the whole system to factory settings. It means the factory software version will be restored and all data from the system A and B will be deleted (users, devices, scenes etc.). If the gateway is set as Z-Wave secondary controller use this procedure only when the primary controller is missing or otherwise inoperable. 1. Open the Configuration Interface. 2. In the top right corner click user name 3. Choose Recovery Mode from the menu. 4. Confirm. 5. Wait for the system to reboot, the LED indicator will be pulsing red. 6. When the LED indicator turns solid red, refresh the browser tab. 7. Click Factory Reset under Network Status section. 8. Check “Yes, I’m sure and I know what I’m doing” checkbox. 9. Confirm.
In case you need full DSK code of the gateway you will find it on the label under the device.
11: REDISCOVERING Z-WAVE DEVICES Rediscovery – the process of reading the device’s capabilities after altering them. 1. Open the Configuration Interface. 2. Go to [gearwheel icon] > Devices. 3. Click the device to expand it. 4. Go to Device configuration tab. 5. Under Device reconfiguration click Reconfigure device. 6. If the device is battery powered, wake it up manually or wait for next automatic wake up.
Copying information from this controller to the secondary controller 1. Start adding procedure according to chapter “Adding using Inclusion Mode” on page 13. 2. Start Learn Mode on the secondary controller (according to its manual). 3. After couple of minutes both controllers will have the same network information.
6.2: ADDING USING SMARTSTART ATTENTION! SmartStart is only available for Z-Wave 3.0 engine gateways. SmartStart enabled devices can be added into a Z-Wave network by entering the Z-Wave DSK Code present on the product. The devices will be automatically added to the Z-Wave network using secure connection encrypted with Z-Wave S2 security framework. To add the device to the Z-Wave network using SmartStart: 1. Open the Configuration Interface. 2. Go to [gearwheel icon] > Z-Wave > SmartStart. 3. Click Add DSK. 4. Enter the full DSK string code you have received with your device. 5. For advanced users: In Choose Security levels select which Security keys will be granted to the joining node (available: S2 Unauthenticated, S2 Authenticated, S2 Access Control, S0). 6. Leave the Only S2 classic inclusion unchecked. 7. Power the device and it will be added automatically within 10 minutes.
6.1: ADDING USING INCLUSION MODE To add the device to the Z-Wave network manually: 1. Open the Configuration Interface. 2. Go to [gearwheel icon] > Devices. 3. Click "Add device" button. 4. Select Z-Wave Device. 5. Optional - selectable options (Advanced): • NWI - Network-Wide Inclusion – enabling allows for adding devices outside the direct range of the gateway, • Add in S0 Security mode if device supports it, • Allow inclusion only in near proximity (less than 2 meters). 6. Click Start. 7. Follow adding procedure for the device you want to add (according to its manual). 8. If you are adding in Security S2 Authenticated and the device is not on the Provisioning List: Input the PIN code (the underlined part of the DSK) and click Send. 9. The device will be added within few minutes.
7.1: REMOVING DEVICES USING EXCLUSION MODE To remove the device from the this or other Z-Wave network: 1. Open the Configuration Interface. 2. Go to [gearwheel icon] > Devices. 3. Click "Remove device" button. 4. Select Z-Wave Device. 5. Follow removing procedure on the device (according to its manual).
8.2: EDITING DEVICES IN PROVISIONING LIST 1. Open the Configuration Interface. 2. Go to [gearwheel icon] > Z-Wave > SmartStart. 3. Click [pencil icon] next to the device you want to edit. 4. You can change the Security levels. 5. Save.
